Remote Control Mirror without Seat Position Memory
›
Notes
Remote Control Mirror without Seat Position Memory: Notes

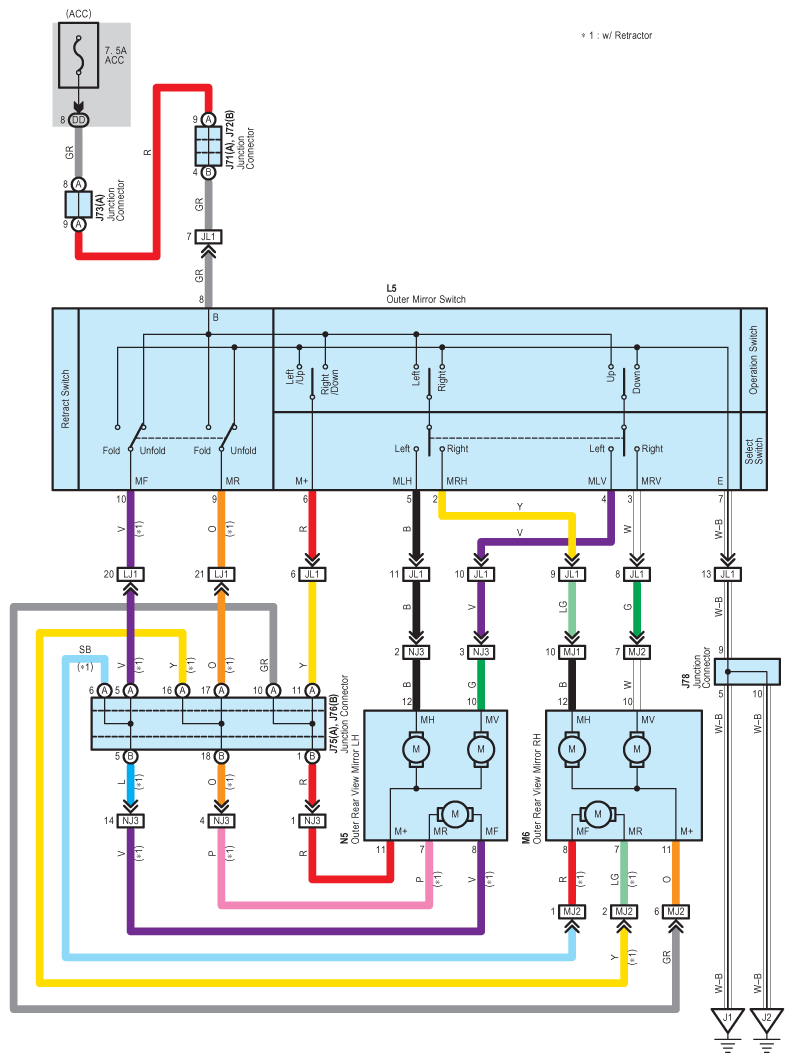

Fig 1: Remote Control Mirror Without Seat Position Memory System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
