Engine Control System (3UR-FE) - System Testing, Removal & Installation
›
Camshaft Position Sensor
›
Components
Camshaft Position Sensor: Components

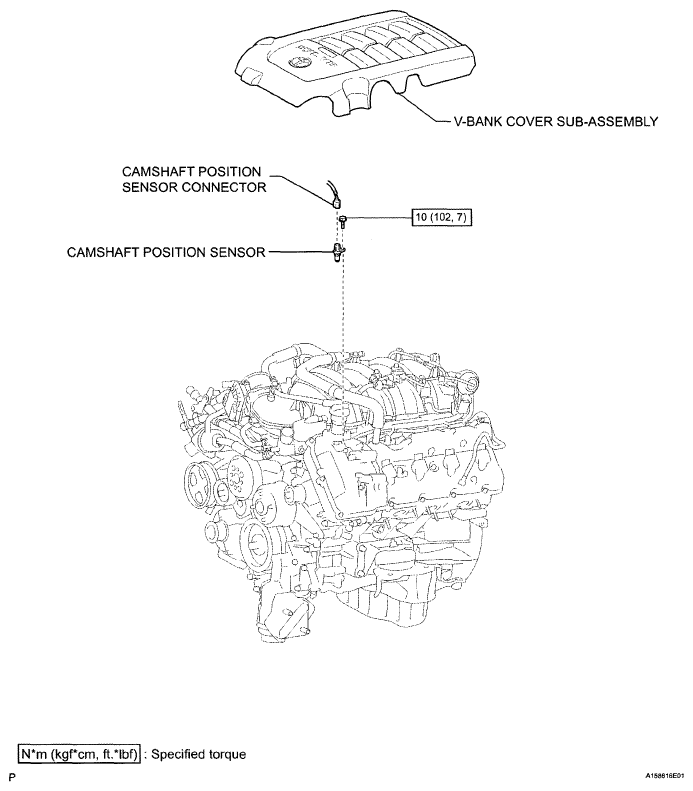

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
