Engine Control System (3UR-FE) - System Testing, Removal & Installation
›
Throttle Body
›
Components
Throttle Body: Components

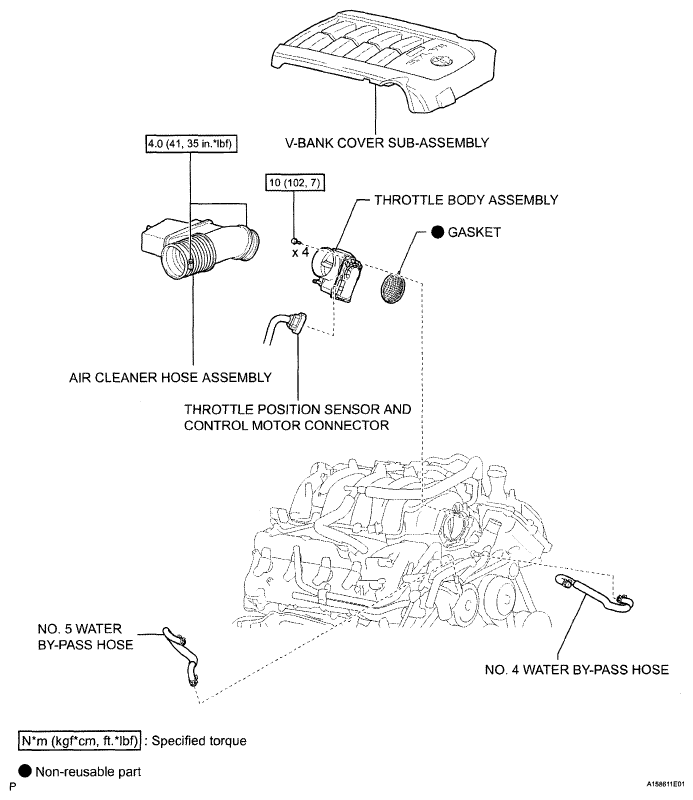

Fig 1: Throttle Body Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
