Cigarette Lighter/Power Outlet
›
Notes
Cigarette Lighter/Power Outlet: Notes

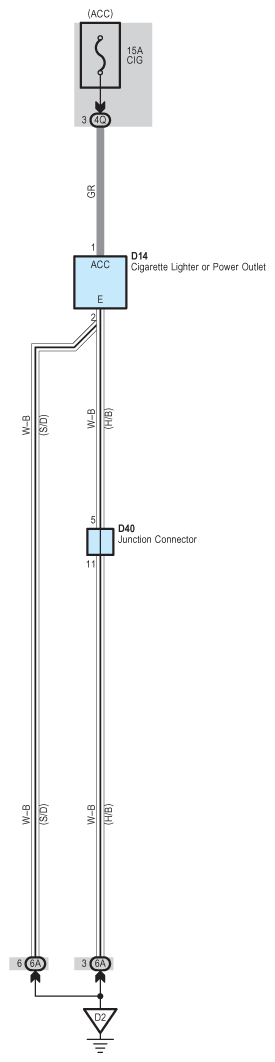

Fig 1: Cigarette Lighter/Power Outlet System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
