Yaris Base, 2D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
ECM Power Source Circuit
›
Wiring Diagram

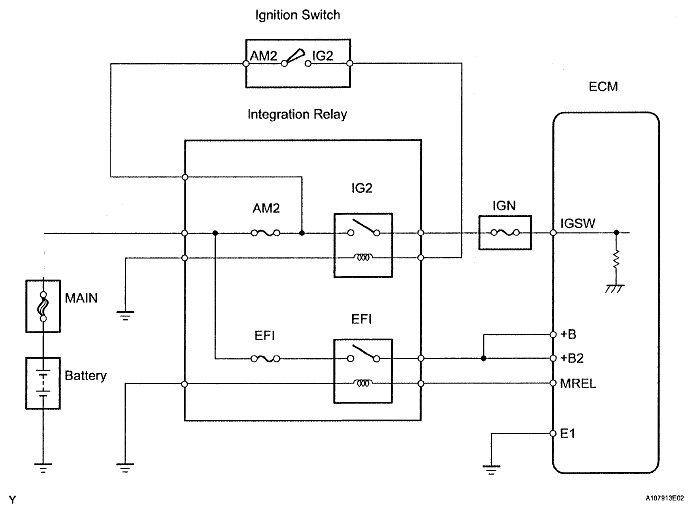

ECM Power Source Circuit: Wiring Diagram
Fig 1: Identifying ECM Power Source Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
