Yaris Base, 2D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
VC Output Circuit
›
Wiring Diagram
VC Output Circuit: Wiring Diagram

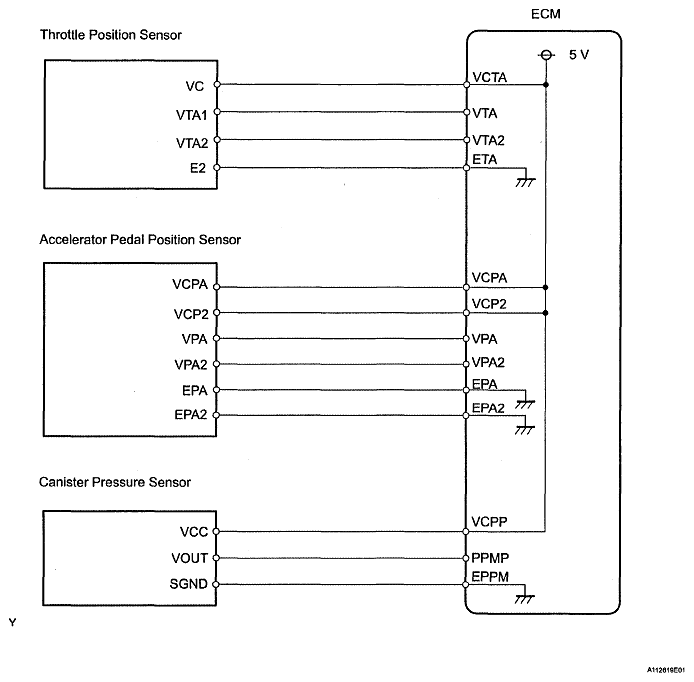

Fig 1: Identifying VC Output Circuit Wiring Diagram
