WARNING: This page is about a different car, the 2007 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

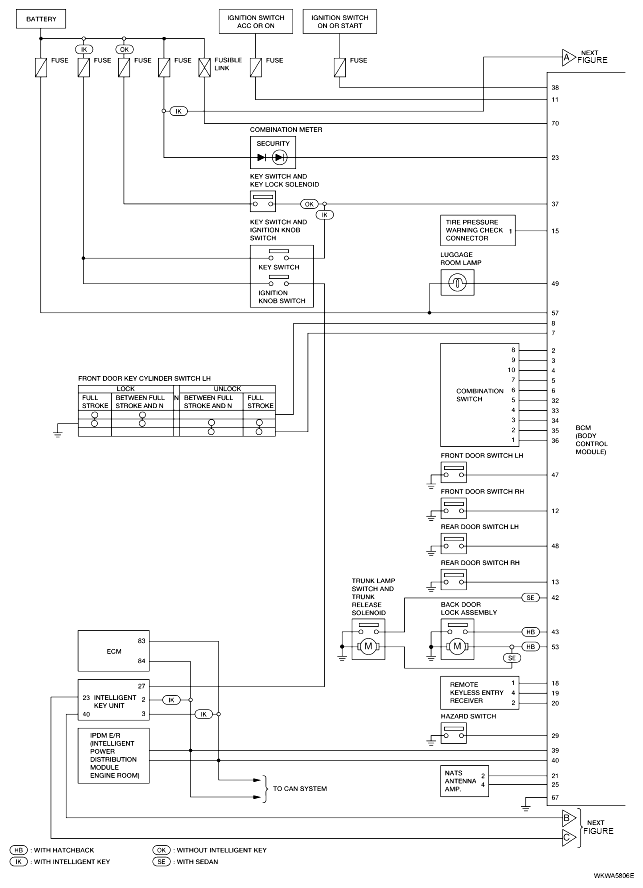

Fig 1: Body Control System - Schematic Diagram (1 Of 2)

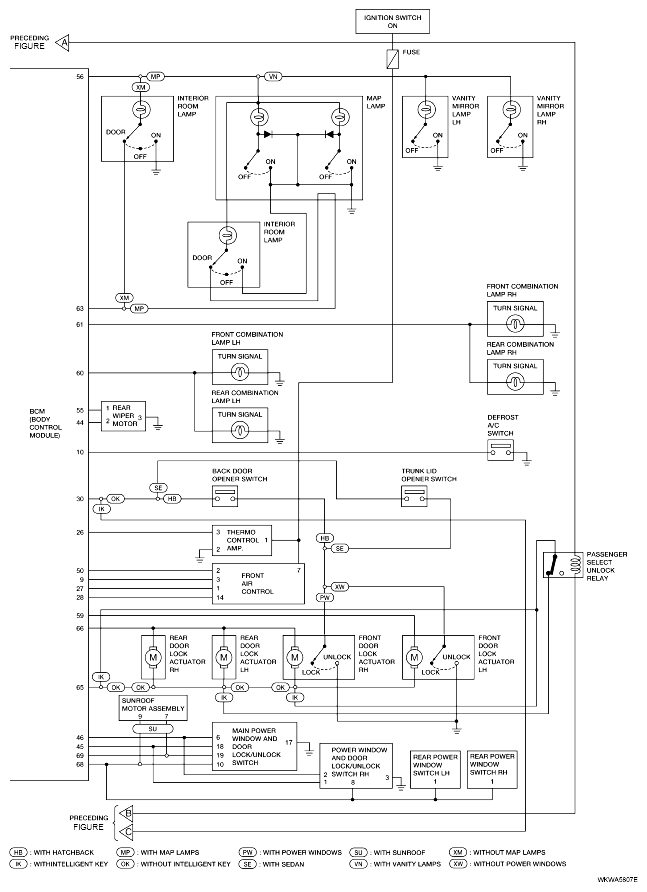

Fig 2: Body Control System - Schematic Diagram (2 Of 2)
