Rear Shock Absorber: Components

Fig 1: Rear Coil Spring Replacement Components (1 Of 3) With Torque Specifications
G04832102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

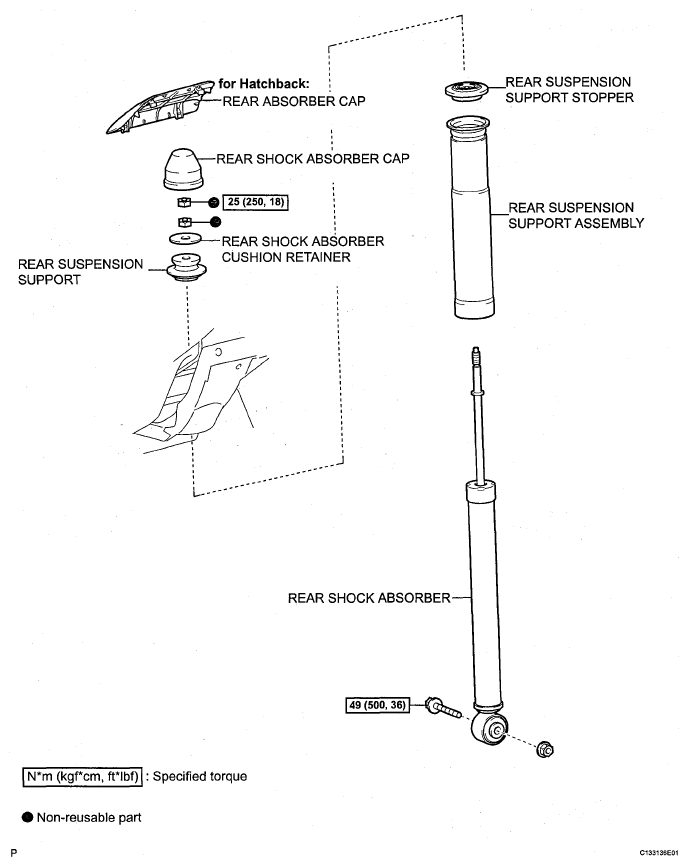

Fig 2: Rear Shock Absorber Replacement Components (2 Of 2) With Torque Specifications
G04832115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
