Manual Transaxle Unit: Components

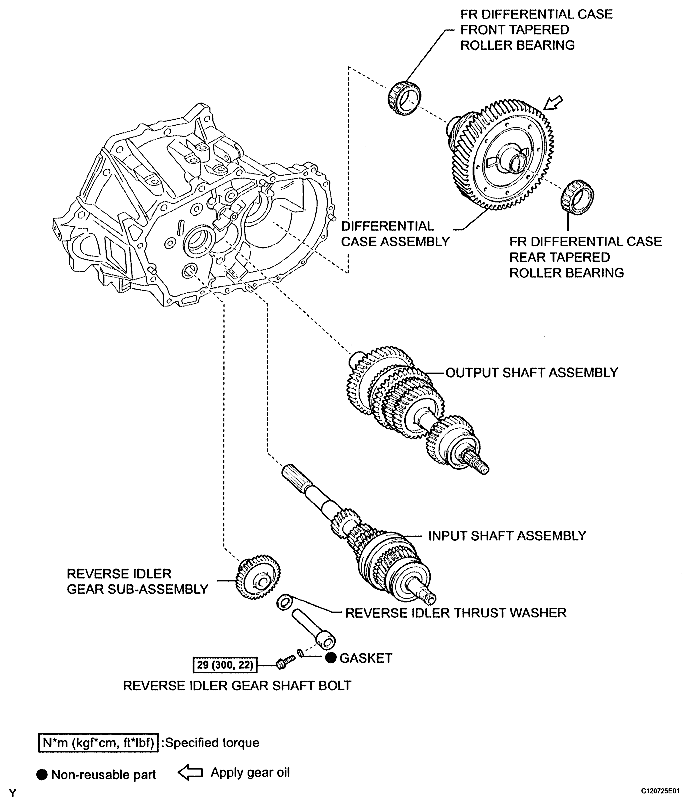

Fig 1: Manual Transaxle Unit Components (1 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

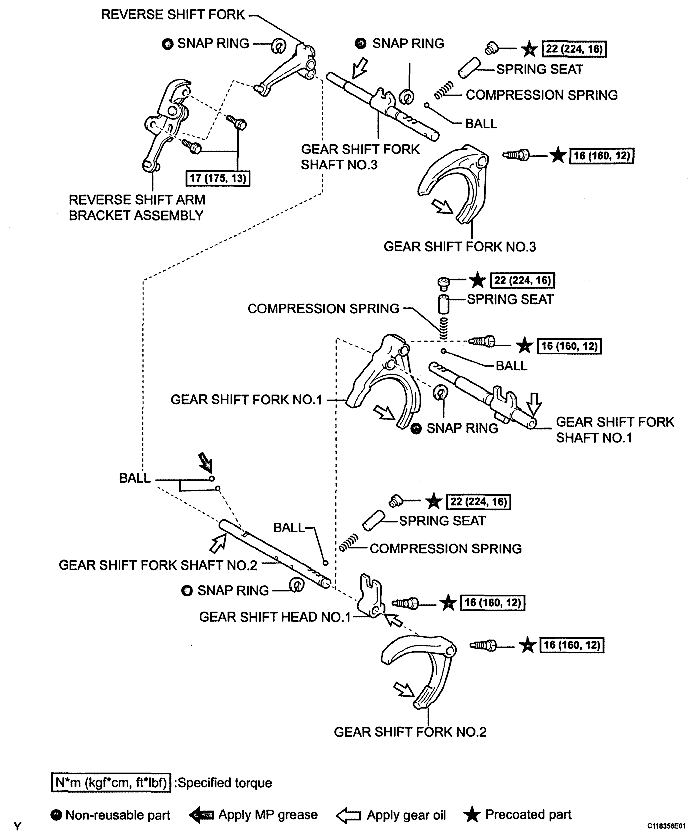

Fig 2: Manual Transaxle Unit Components (2 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

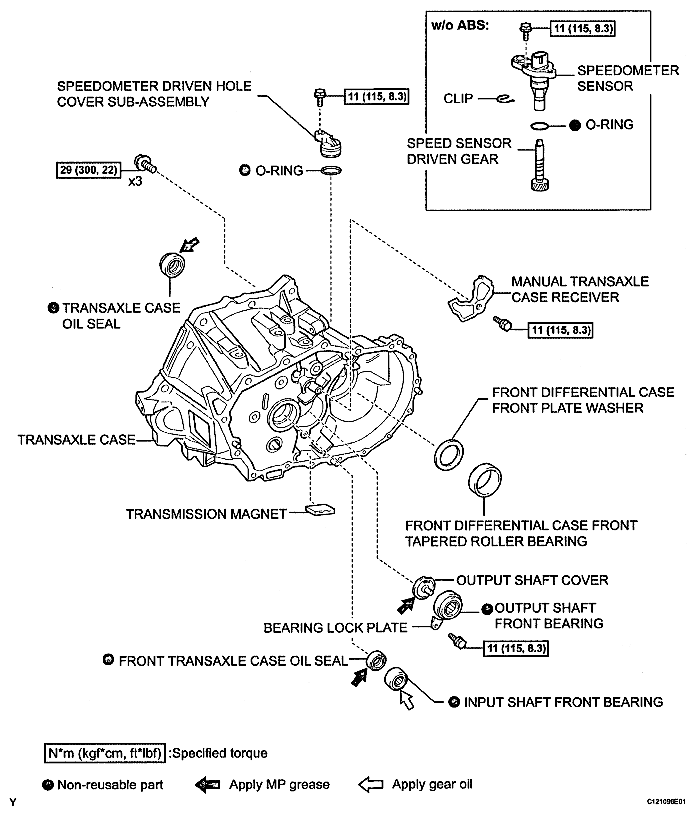

Fig 3: Manual Transaxle Unit Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

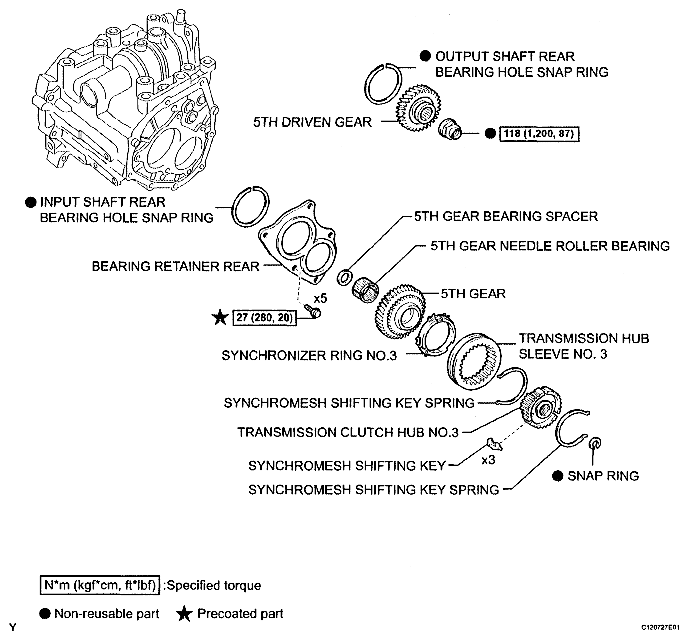

Fig 4: Manual Transaxle Unit Components (4 Of 6) With Torque Specifications

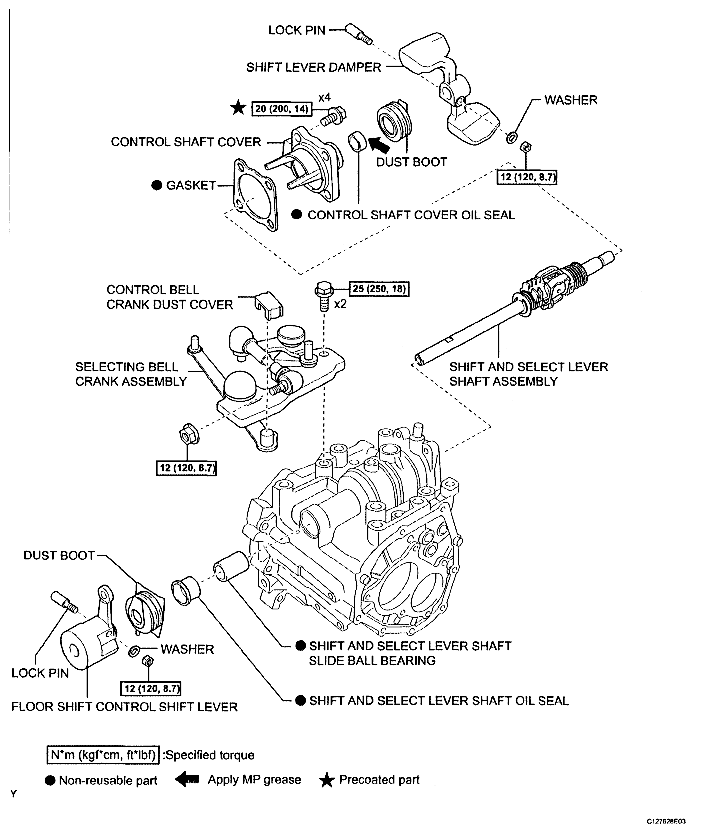

Fig 5: Manual Transaxle Unit Components (5 Of 6) With Torque Specifications

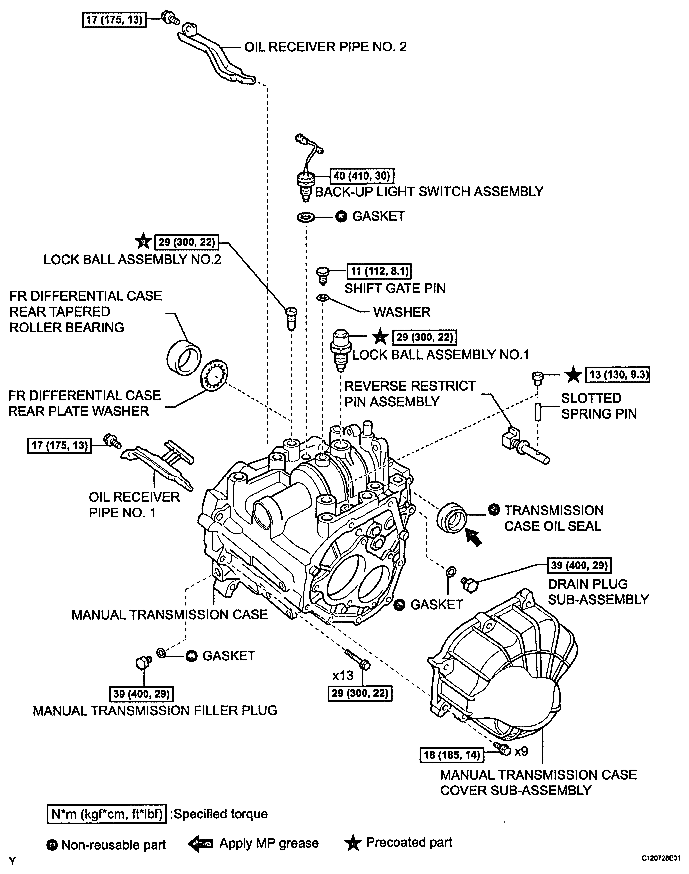

Fig 6: Manual Transaxle Unit Components (6 Of 6) With Torque Specifications
