Engine Control System (1GR-FE)
›
SFI System
›
ACIS Control Circuit
›
Wiring Diagram
ACIS Control Circuit: Wiring Diagram

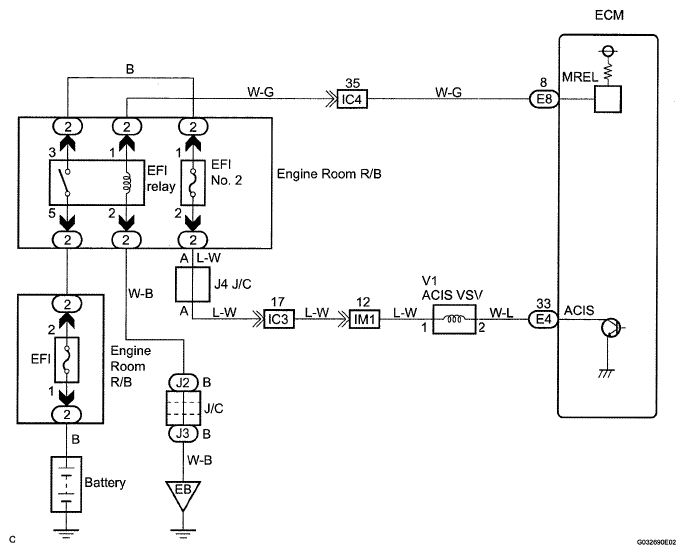

Fig 1: Identifying Acoustic Control Induction System Wiring Diagram
