Cruise Control System for 2UZ-FE: Notes

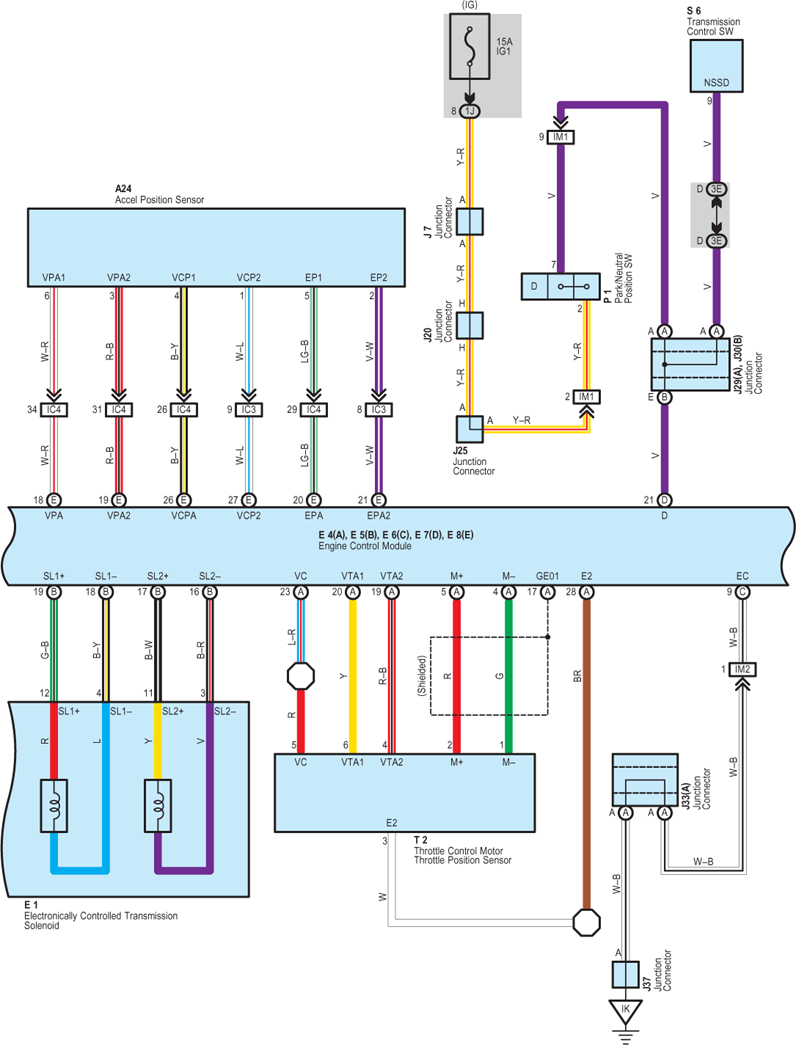

Fig 1: Cruise Control For 2UZ-FE - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Cruise Control For 2UZ-FE - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

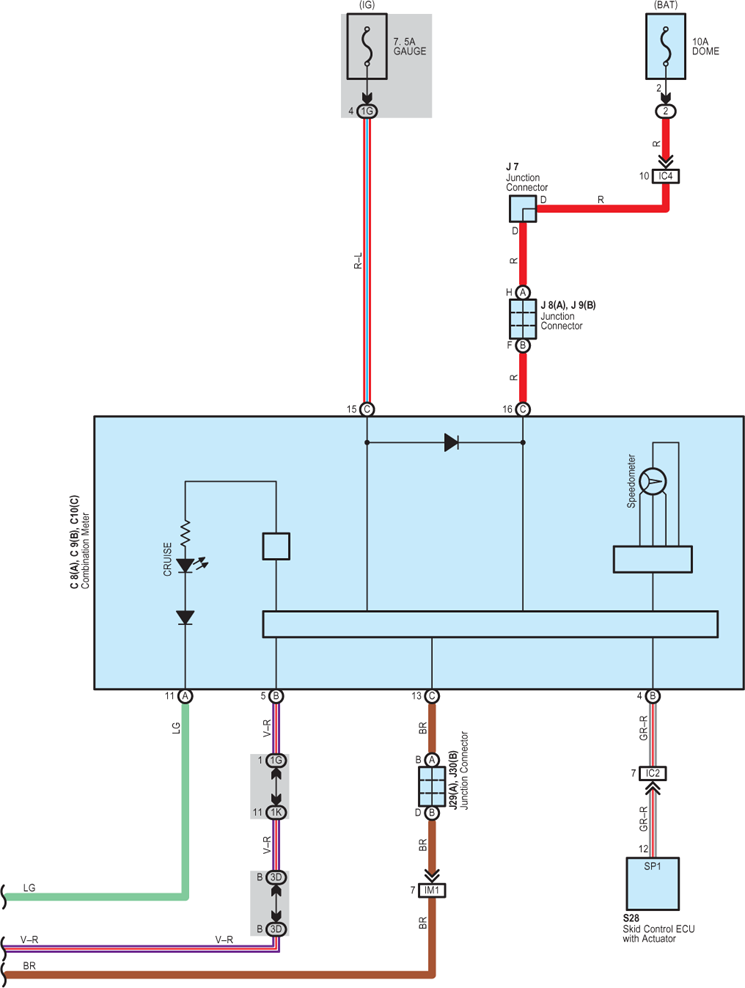

Fig 3: Cruise Control For 2UZ-FE - Circuit Diagram (3 Of 4)

Fig 4: Cruise Control For 2UZ-FE - Circuit Diagram (4 Of 4)
