Engine Control System for 1GR-FE: Notes

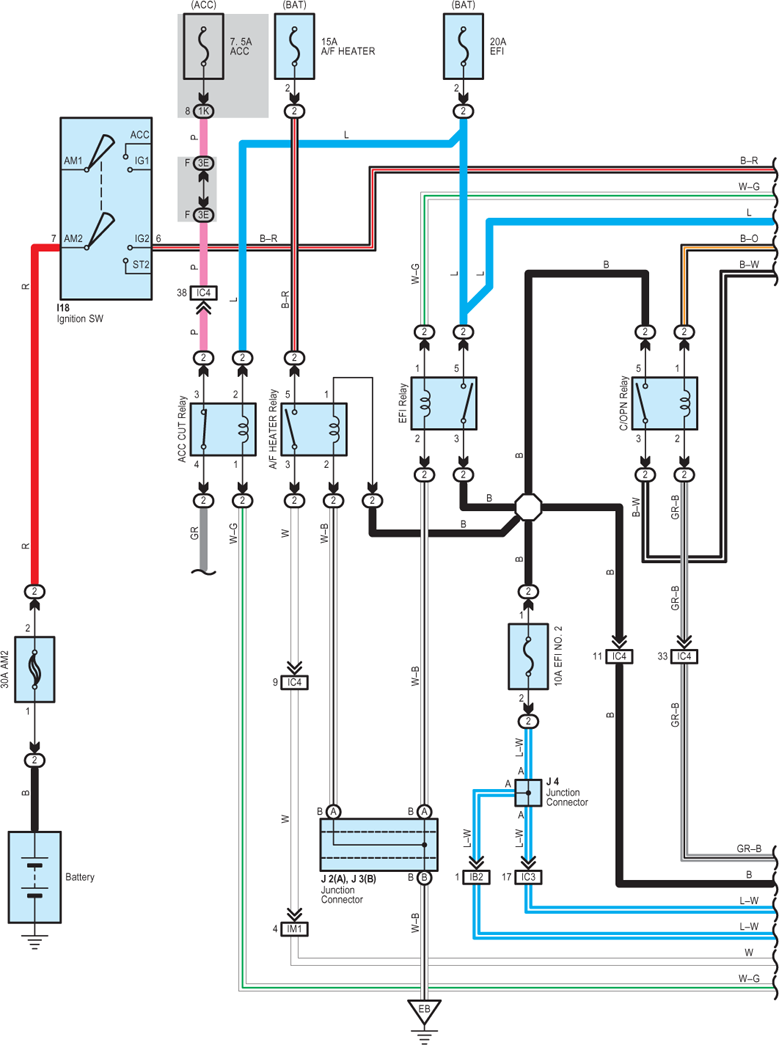

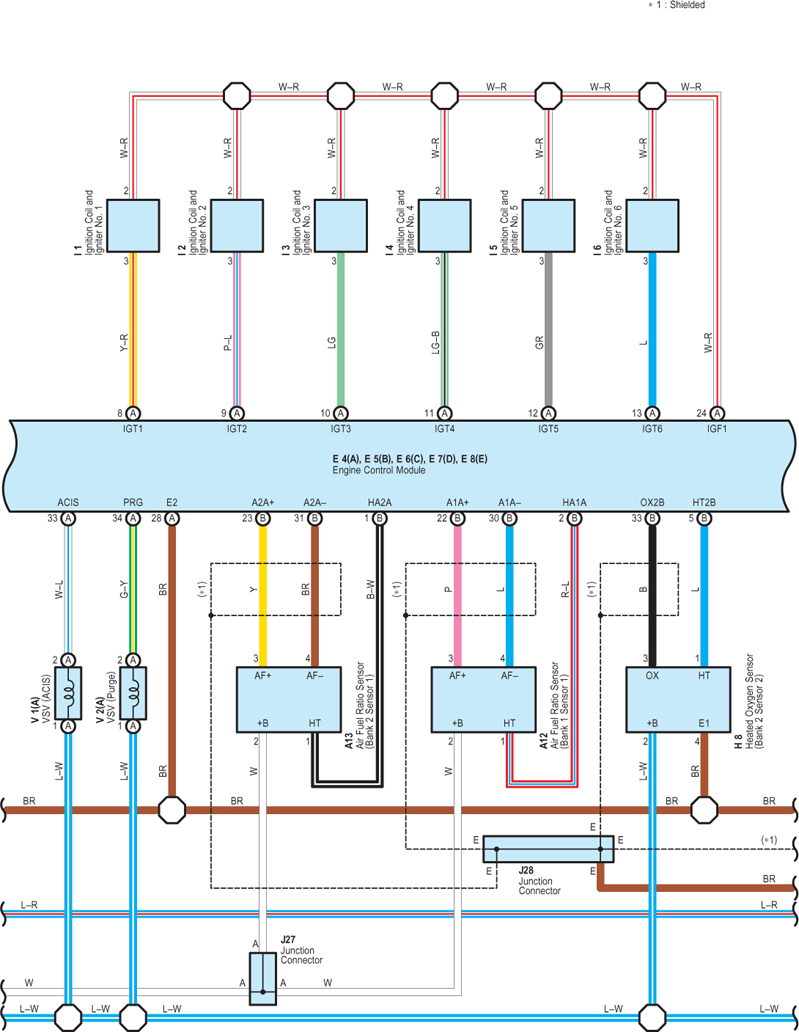

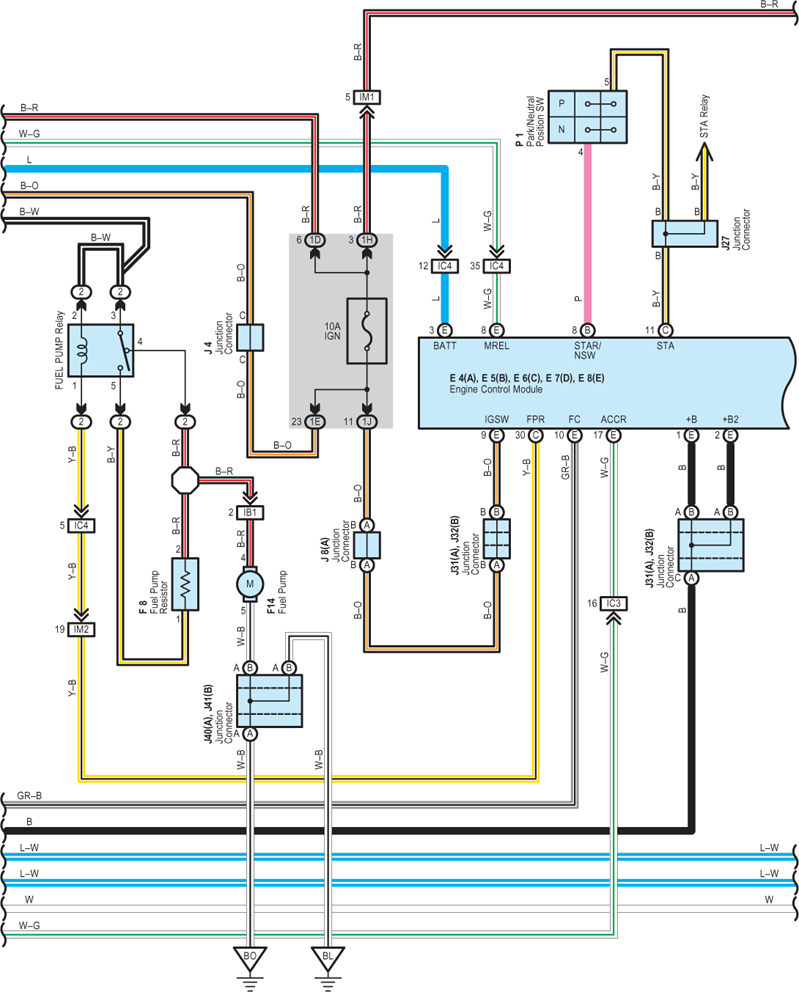

Fig 1: Engine Control For 1GR-FE - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

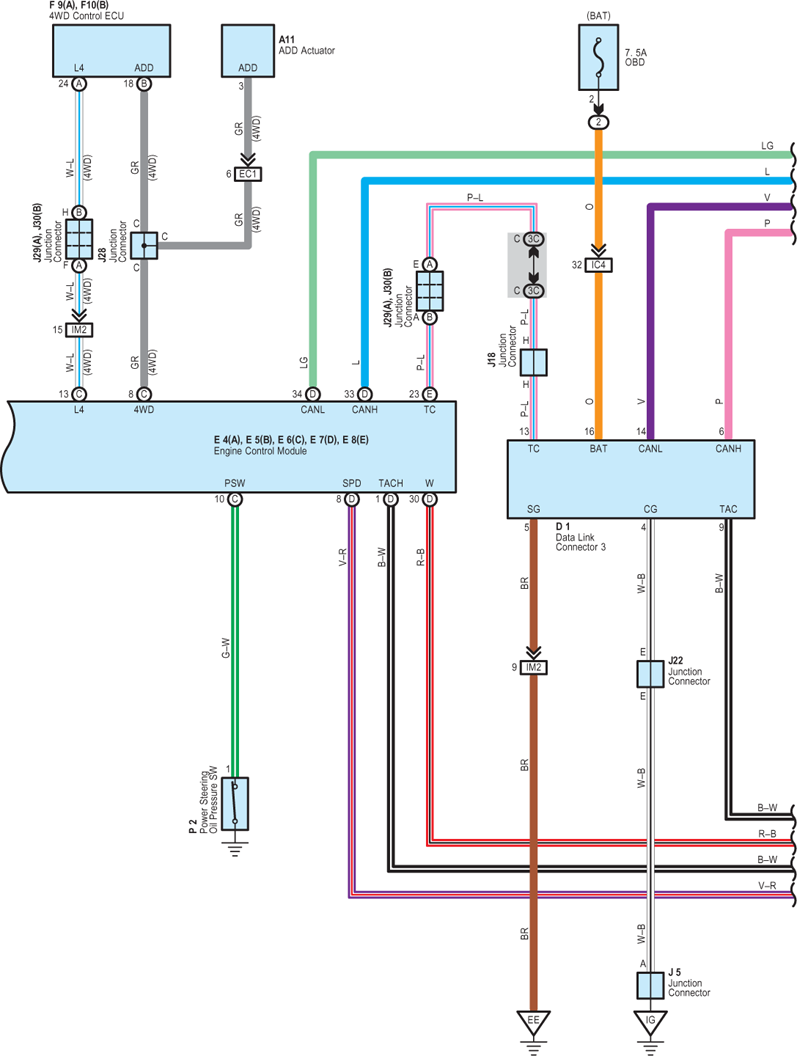

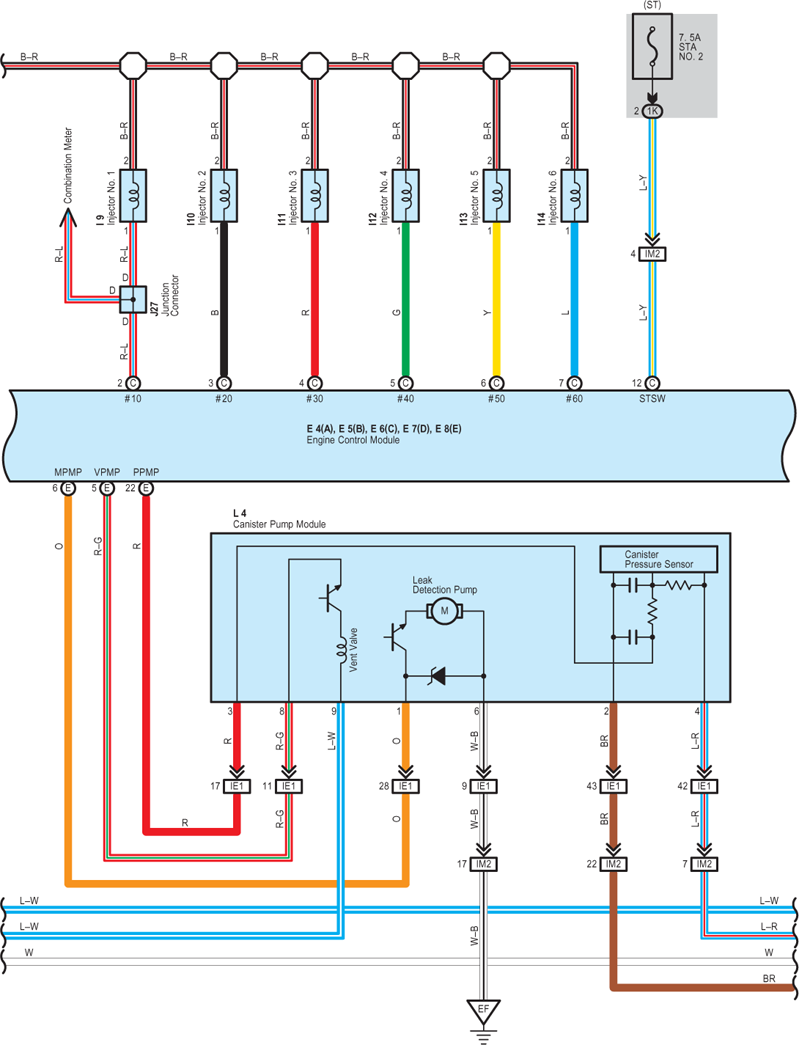

Fig 2: Engine Control For 1GR-FE - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

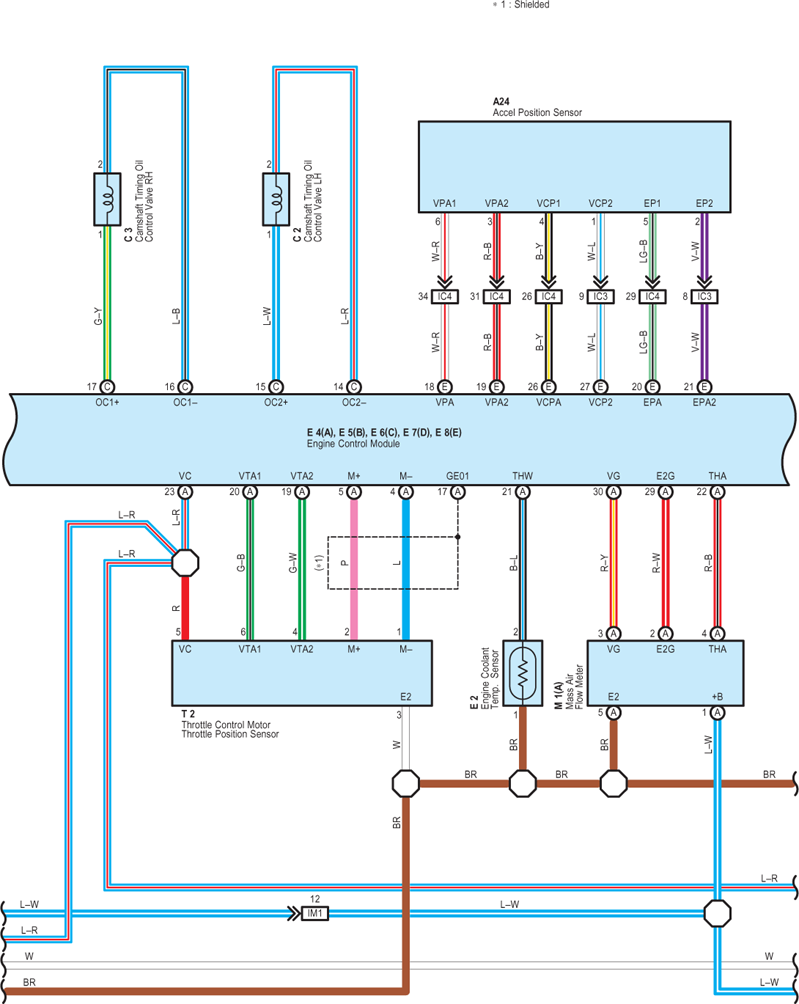

Fig 3: Engine Control For 1GR-FE - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Control For 1GR-FE - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

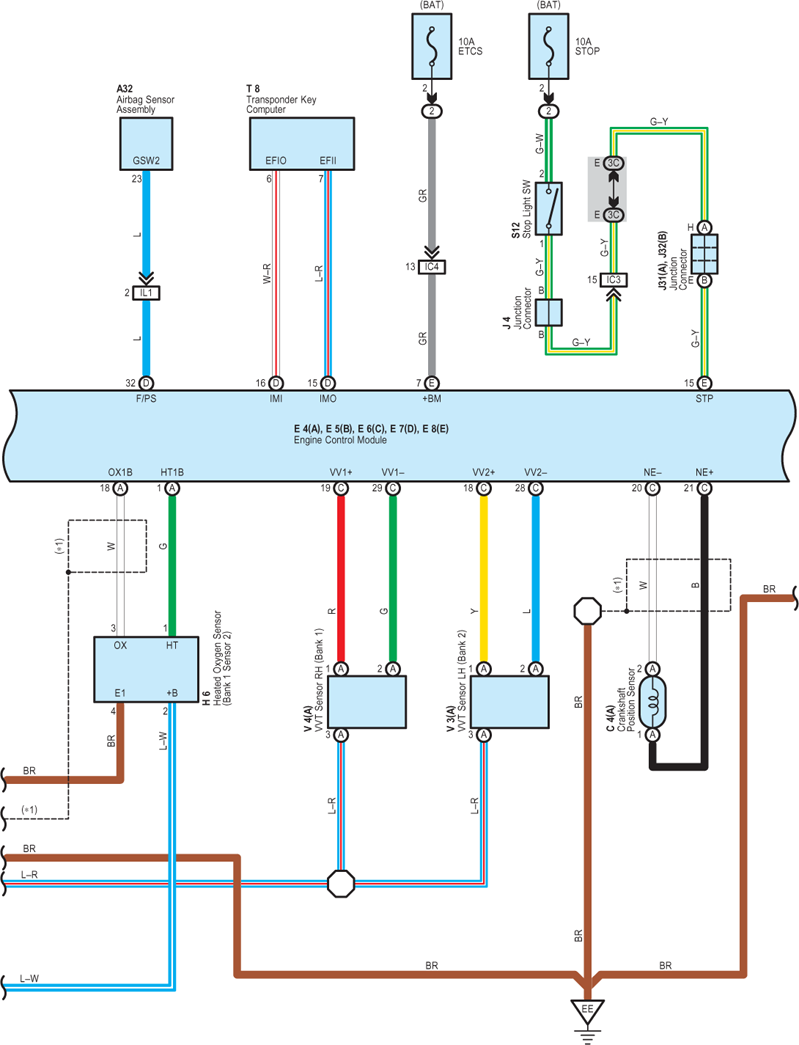

Fig 5: Engine Control For 1GR-FE - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

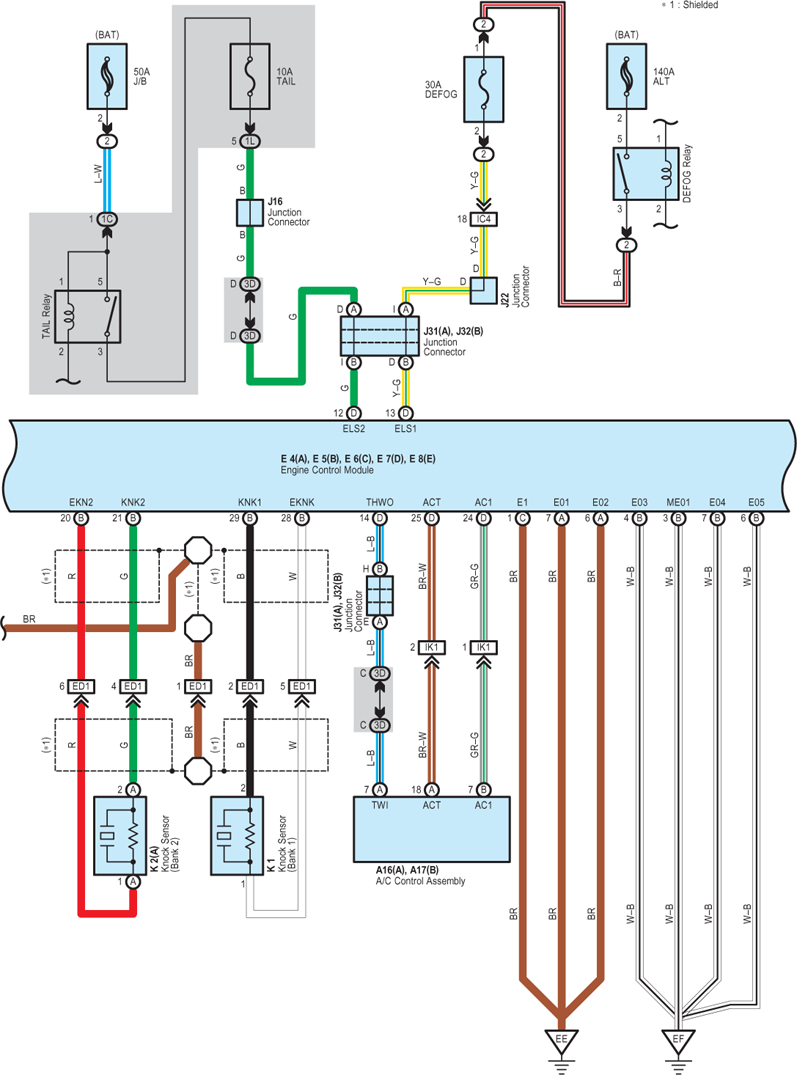

Fig 6: Engine Control For 1GR-FE - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Control For 1GR-FE - Circuit Diagram (7 Of 10)

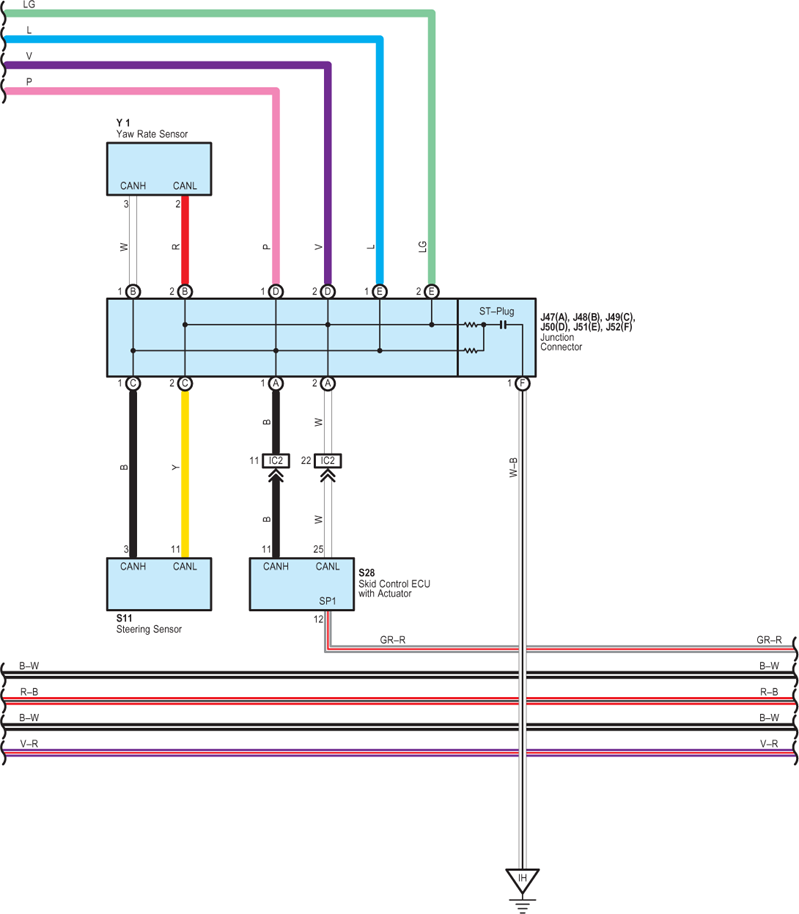

Fig 8: Engine Control For 1GR-FE - Circuit Diagram (8 Of 10)

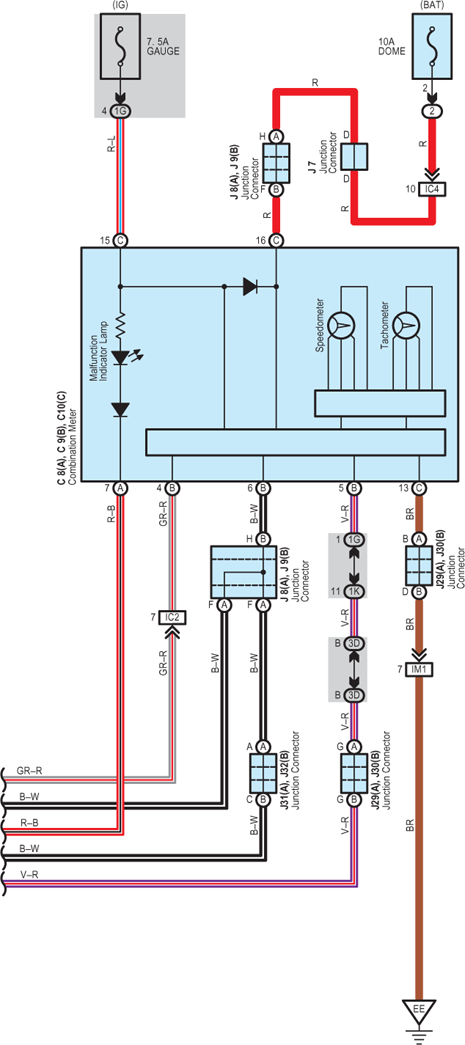

Fig 9: Engine Control For 1GR-FE - Circuit Diagram (9 Of 10)

Fig 10: Engine Control For 1GR-FE - Circuit Diagram (10 Of 10)
