Multi Mode System 4WD: Notes

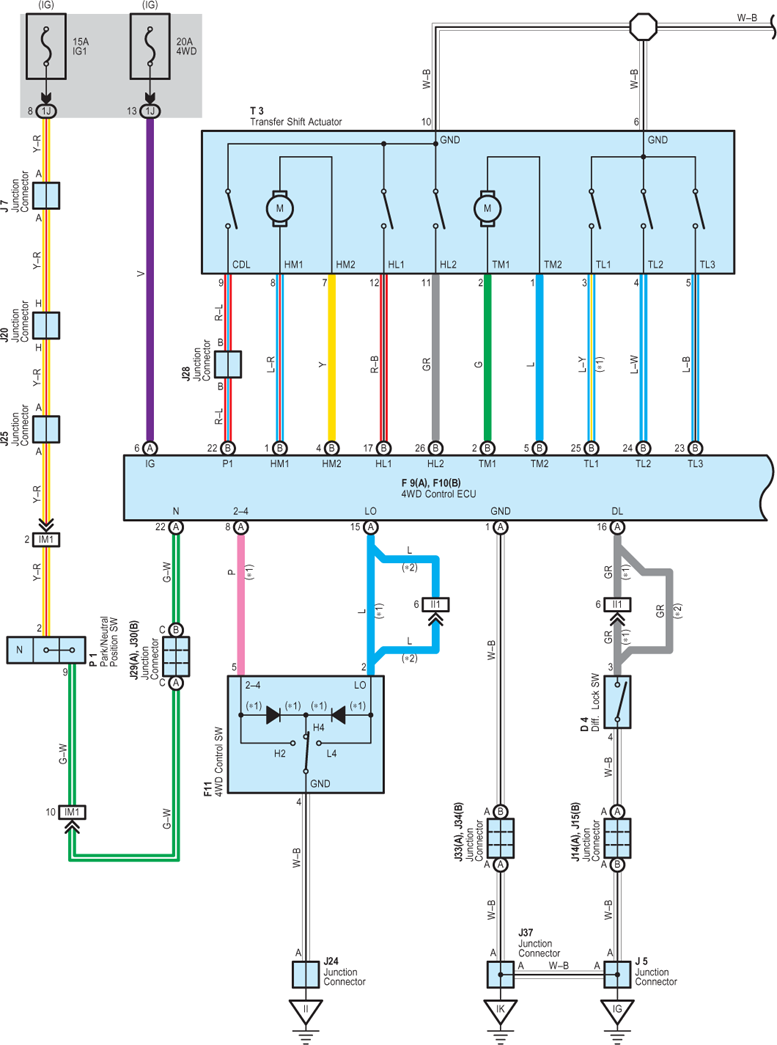

Fig 1: Multi Mode 4WD - Circuit Diagram (1 Of 4)
G07623432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

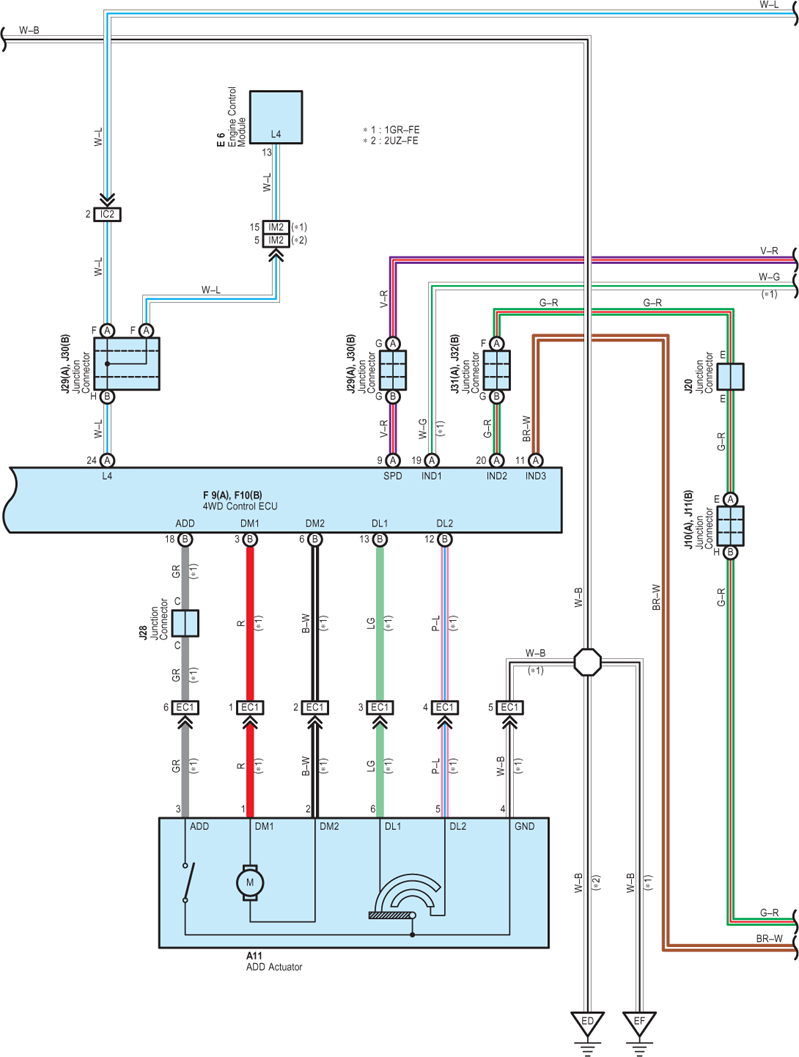

Fig 2: Multi Mode 4WD - Circuit Diagram (2 Of 4)
G07623433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

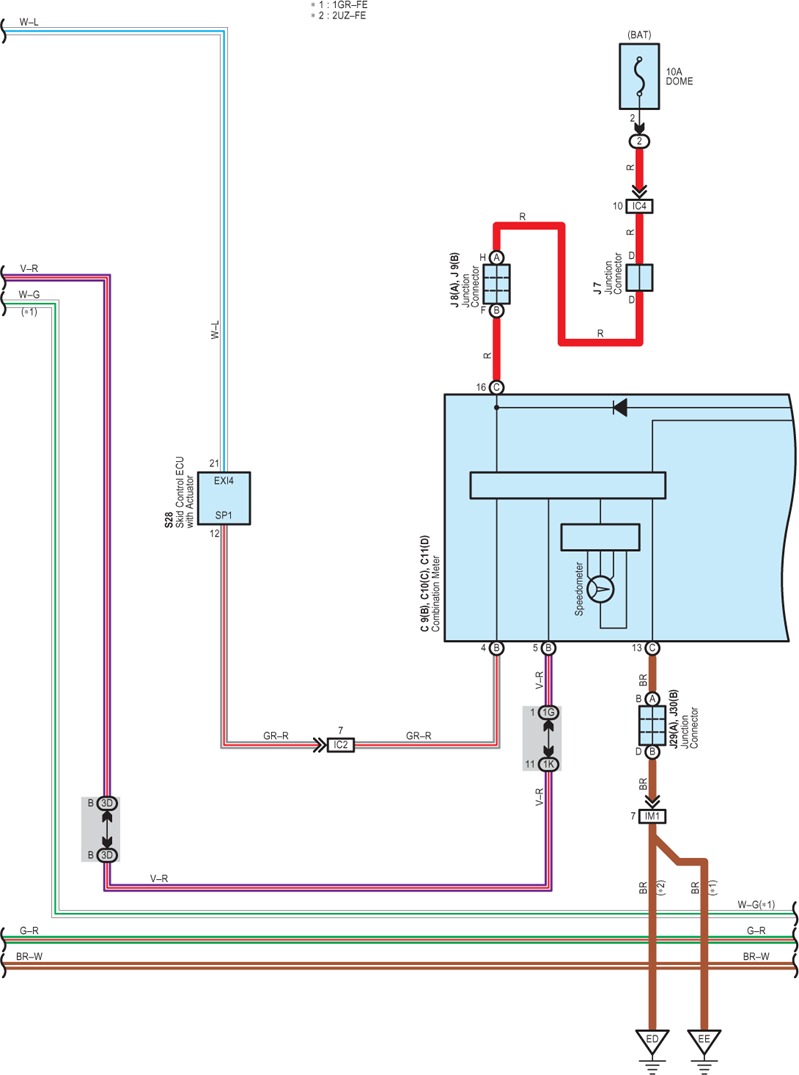

Fig 3: Multi Mode 4WD - Circuit Diagram (3 Of 4)
G07623434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

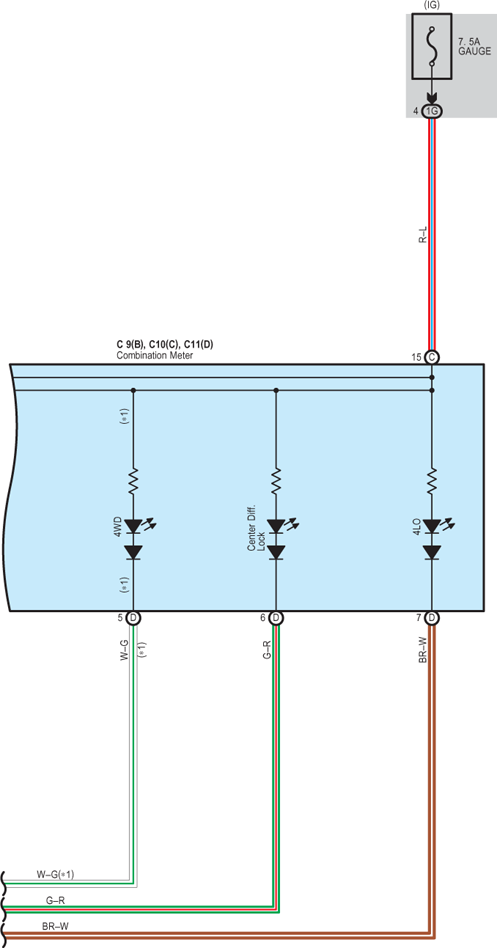

Fig 4: Multi Mode 4WD - Circuit Diagram (4 Of 4)
G07623435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
