Multiplex Communication System - BEAN: Notes

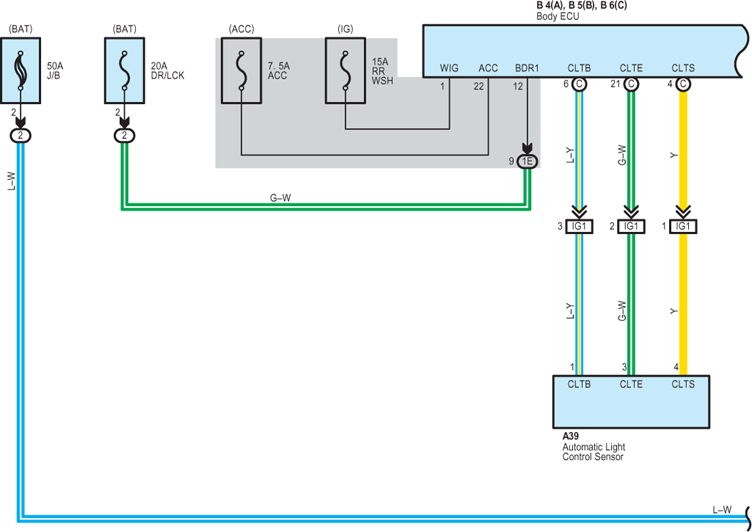

Fig 1: Multiplex Communication System - BEAN - Circuit Diagram (1 Of 22)

G07623318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

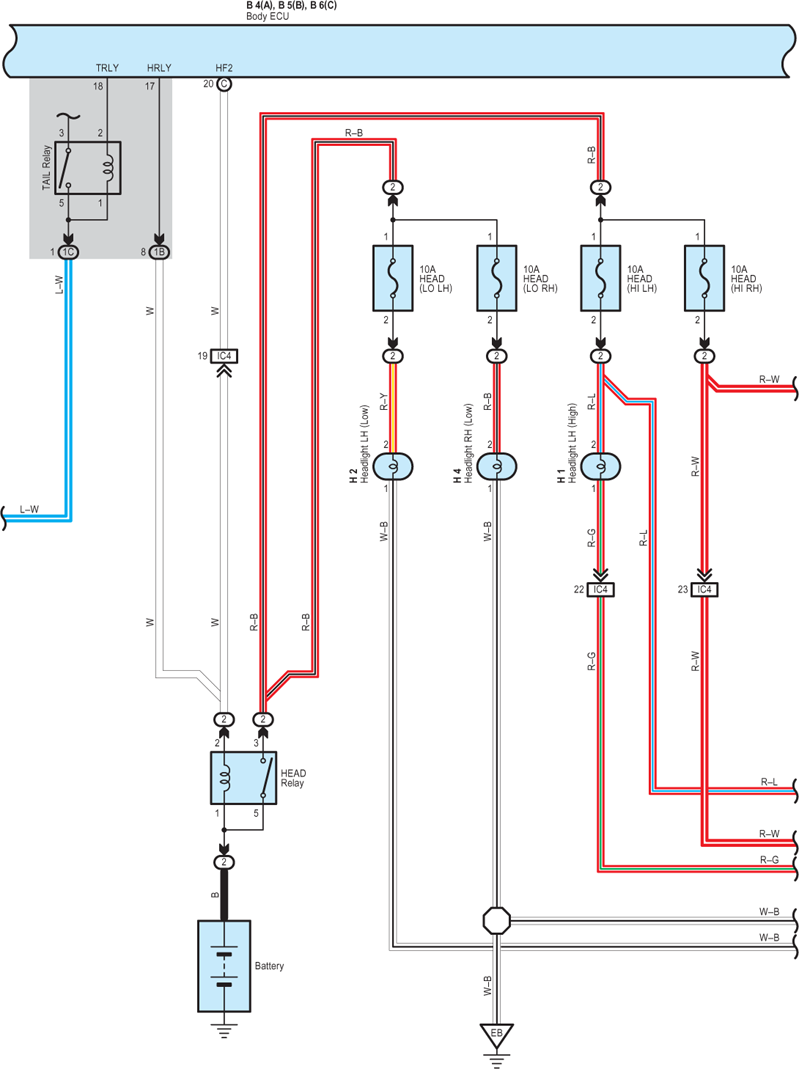

Fig 2: Multiplex Communication System - BEAN - Circuit Diagram (2 Of 22)

G07623319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

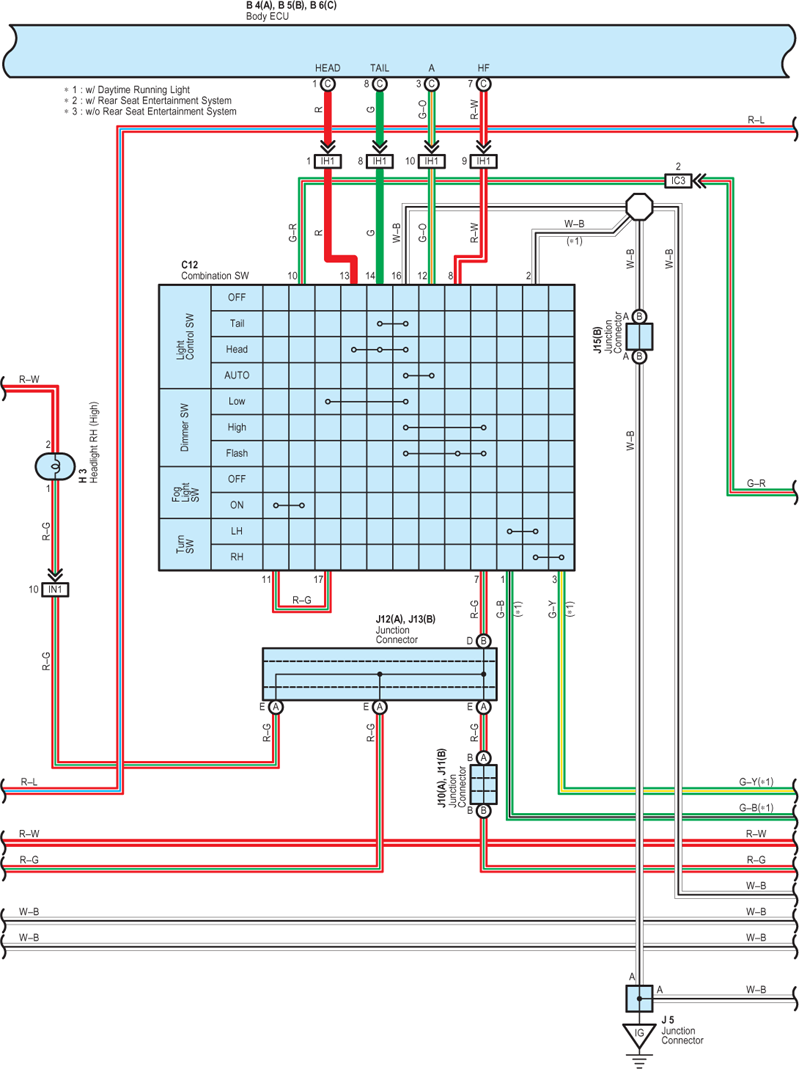

Fig 3: Multiplex Communication System - BEAN - Circuit Diagram (3 Of 22)

G07623320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

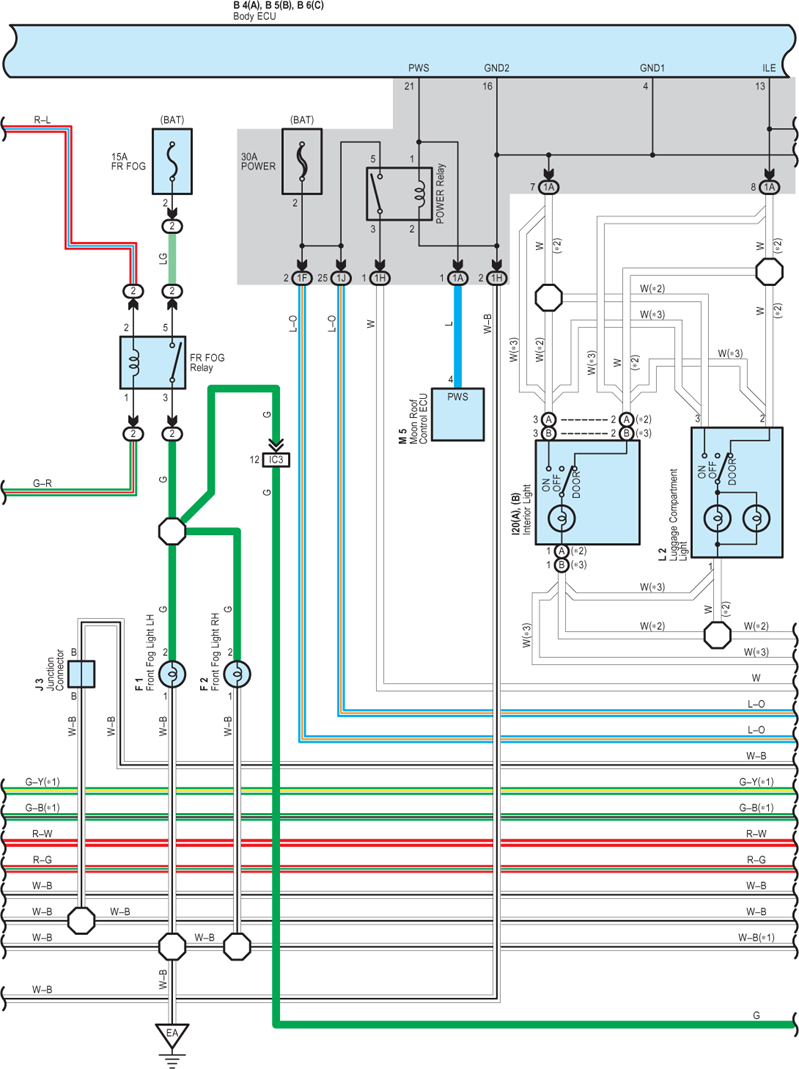

Fig 4: Multiplex Communication System - BEAN - Circuit Diagram (4 Of 22)

G07623321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

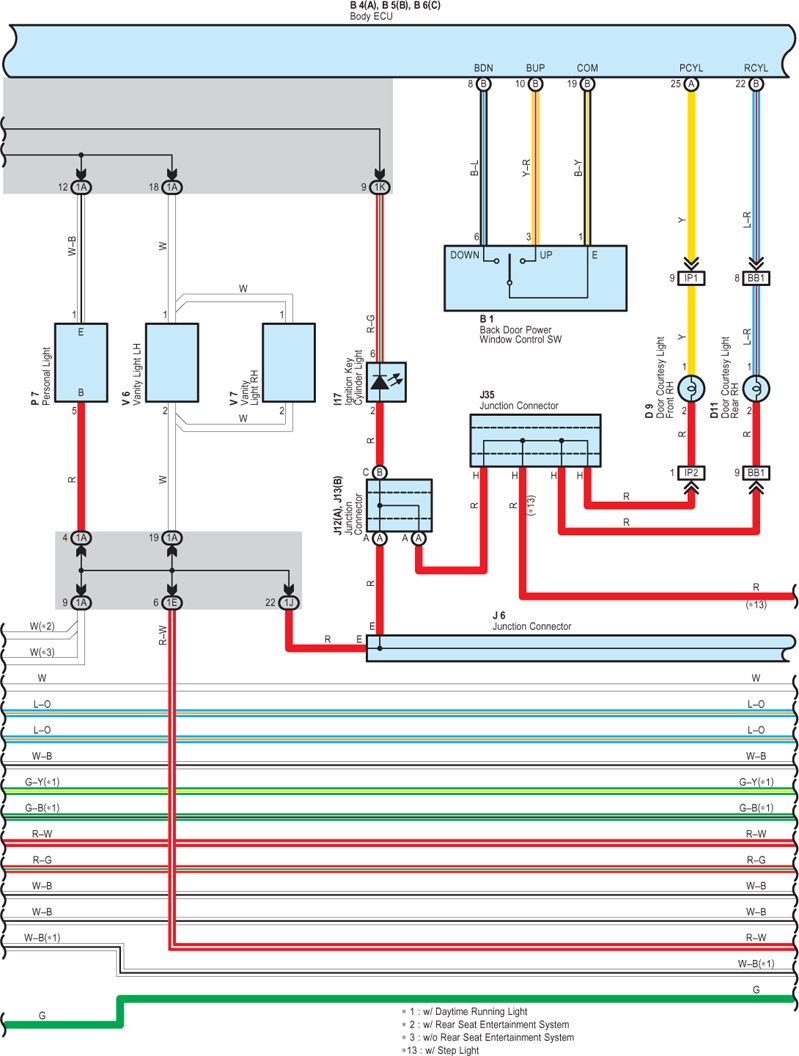

Fig 5: Multiplex Communication System - BEAN - Circuit Diagram (5 Of 22)

G07623322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

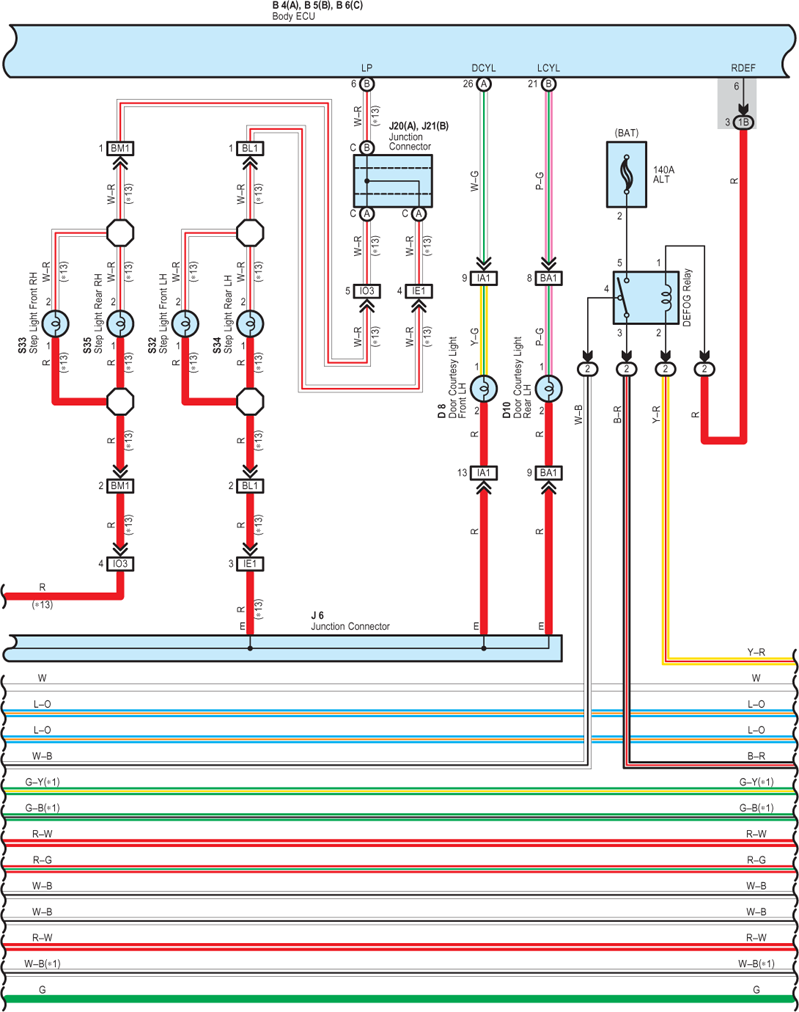

Fig 6: Multiplex Communication System - BEAN - Circuit Diagram (6 Of 22)

G07623323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

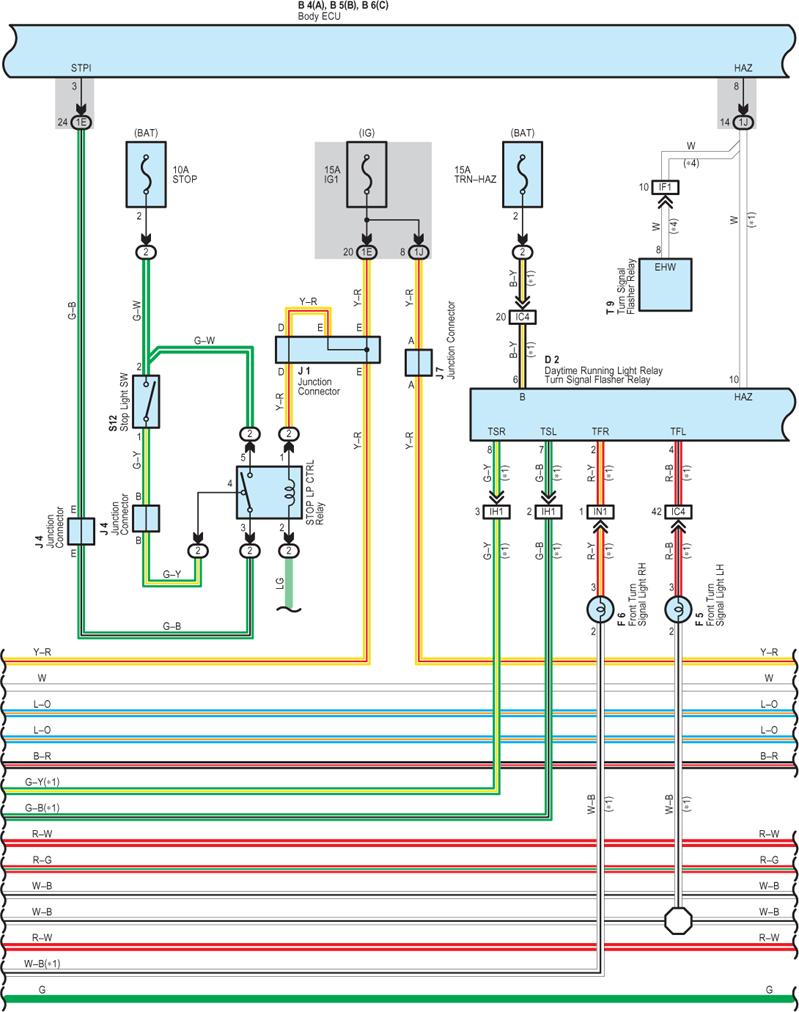

Fig 7: Multiplex Communication System - BEAN - Circuit Diagram (7 Of 22)

G07623324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

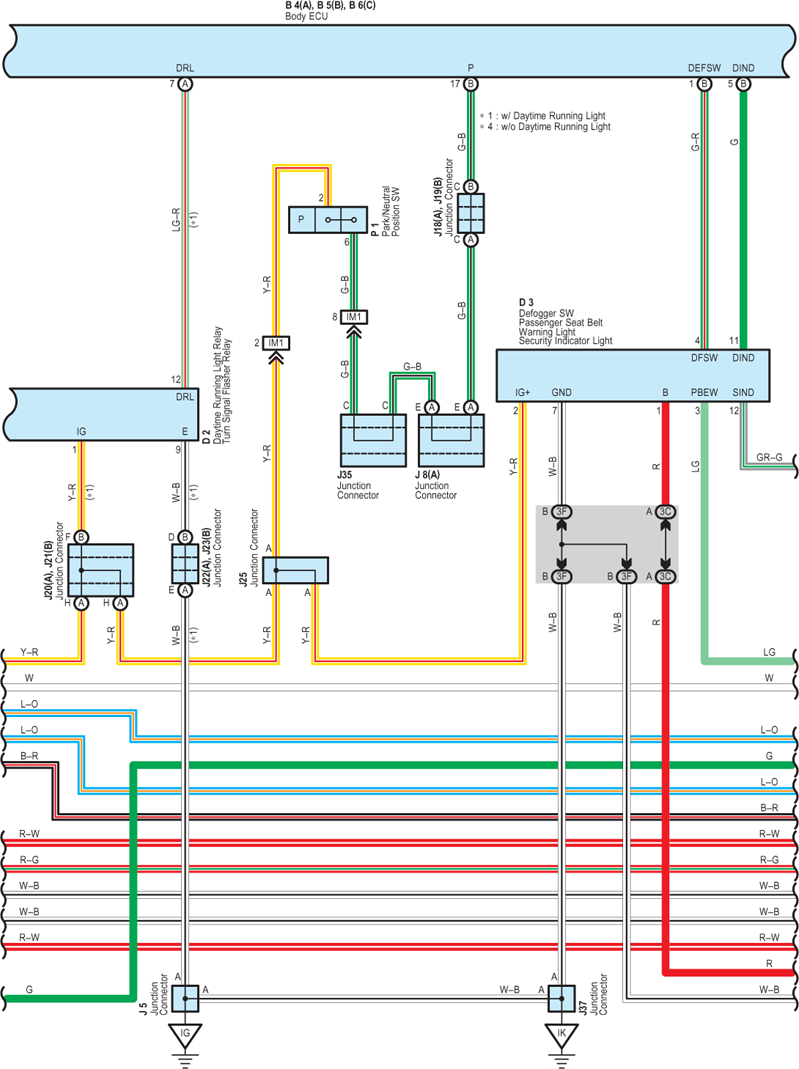

Fig 8: Multiplex Communication System - BEAN - Circuit Diagram (8 Of 22)

G07623325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

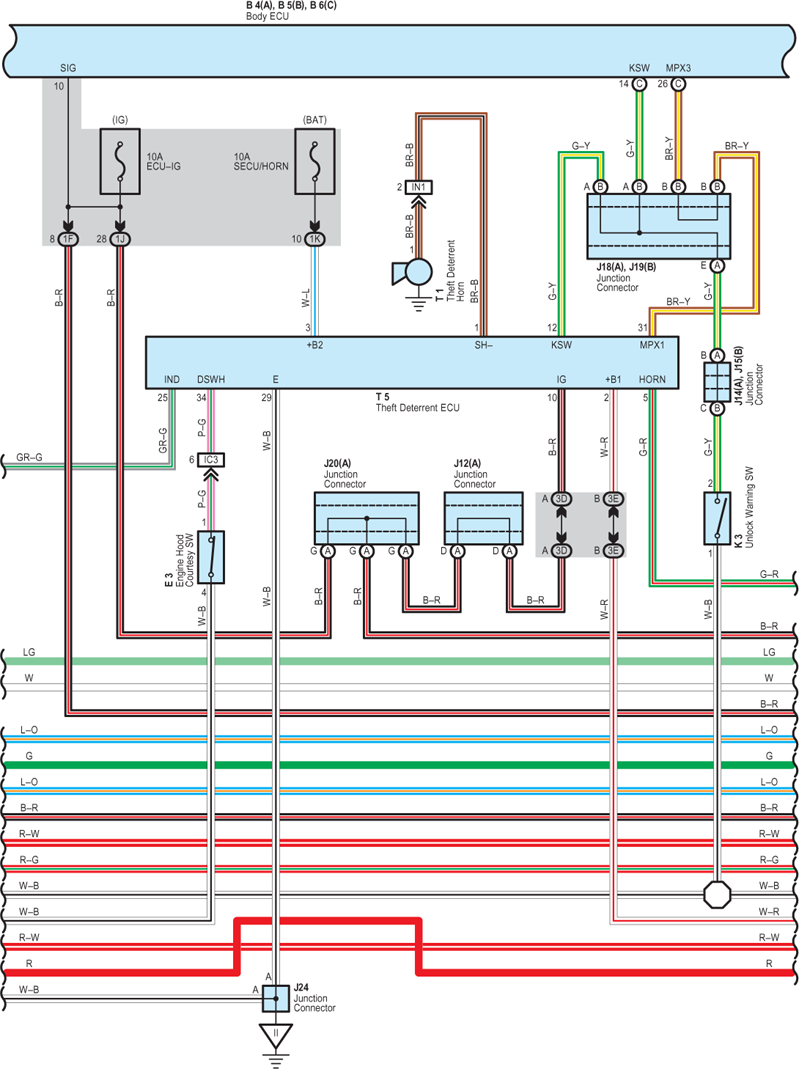

Fig 9: Multiplex Communication System - BEAN - Circuit Diagram (9 Of 22)

G07623326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

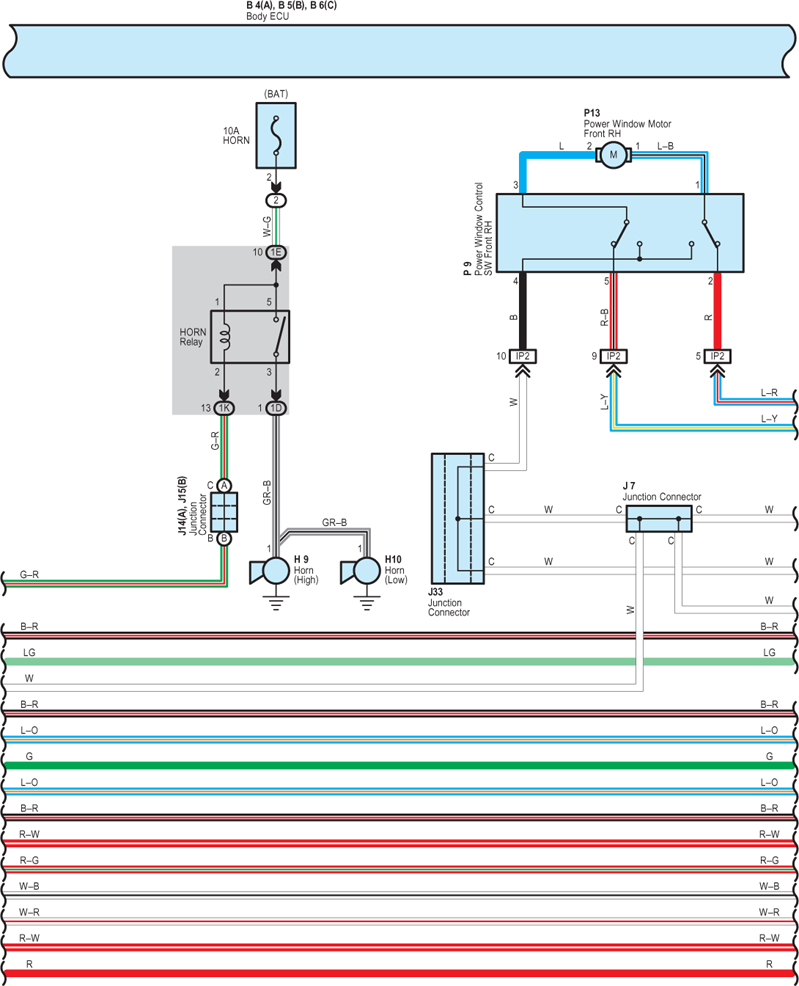

Fig 10: Multiplex Communication System - BEAN - Circuit Diagram (10 Of 22)

G07623327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

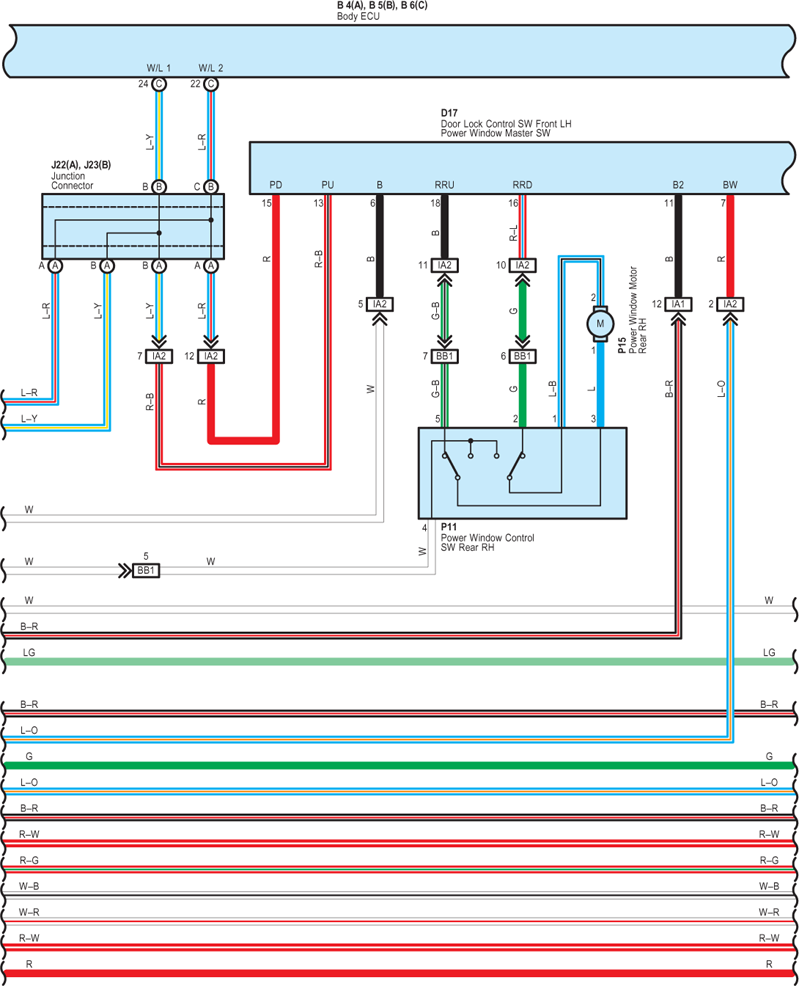

Fig 11: Multiplex Communication System - BEAN - Circuit Diagram (11 Of 22)

G07623328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

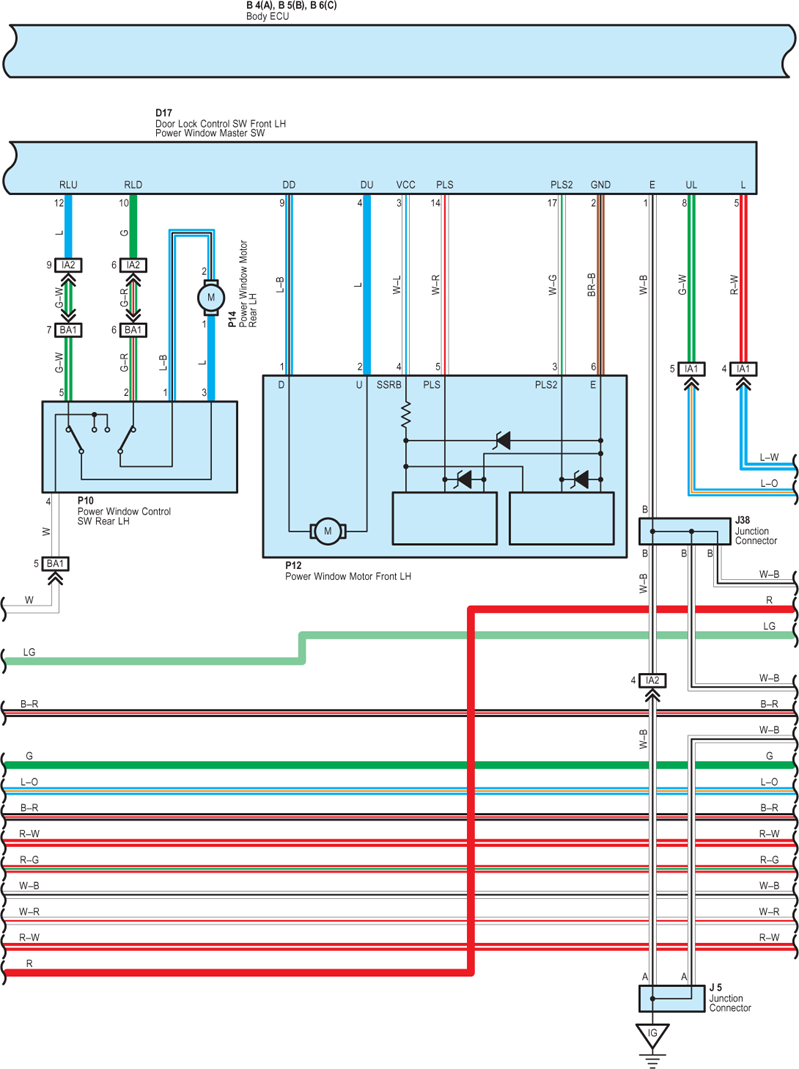

Fig 12: Multiplex Communication System - BEAN - Circuit Diagram (12 Of 22)

G07623329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

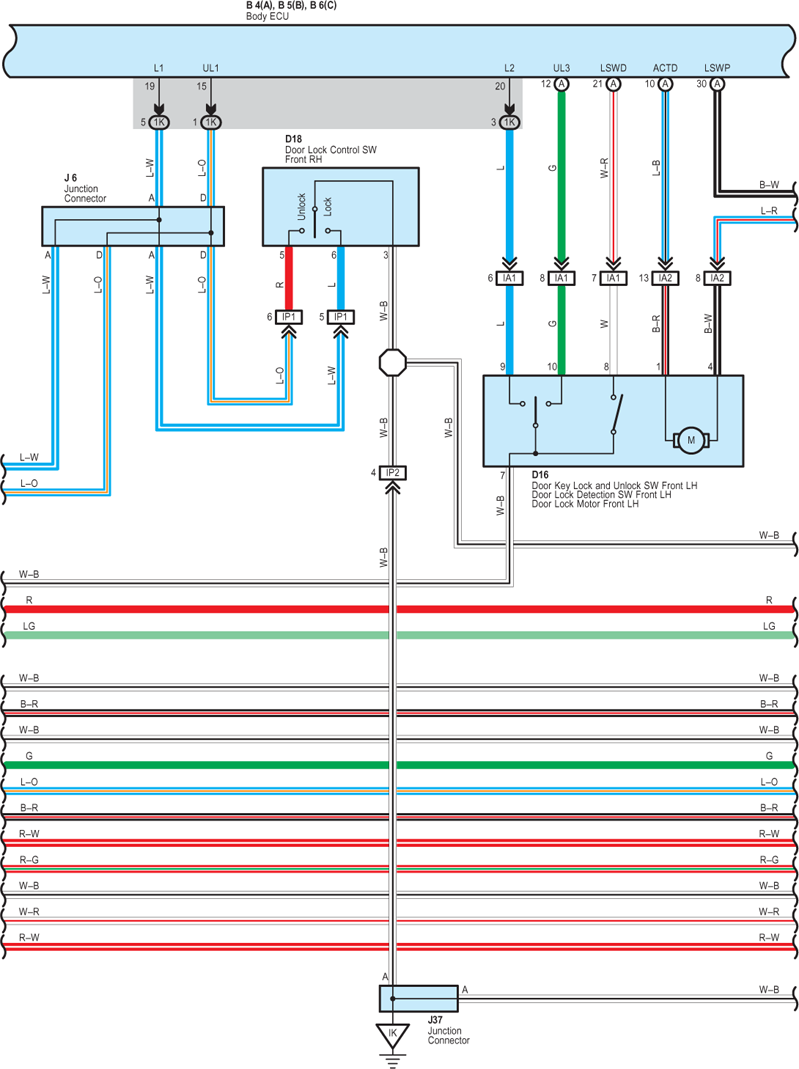

Fig 13: Multiplex Communication System - BEAN - Circuit Diagram (13 Of 22)

G07623330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

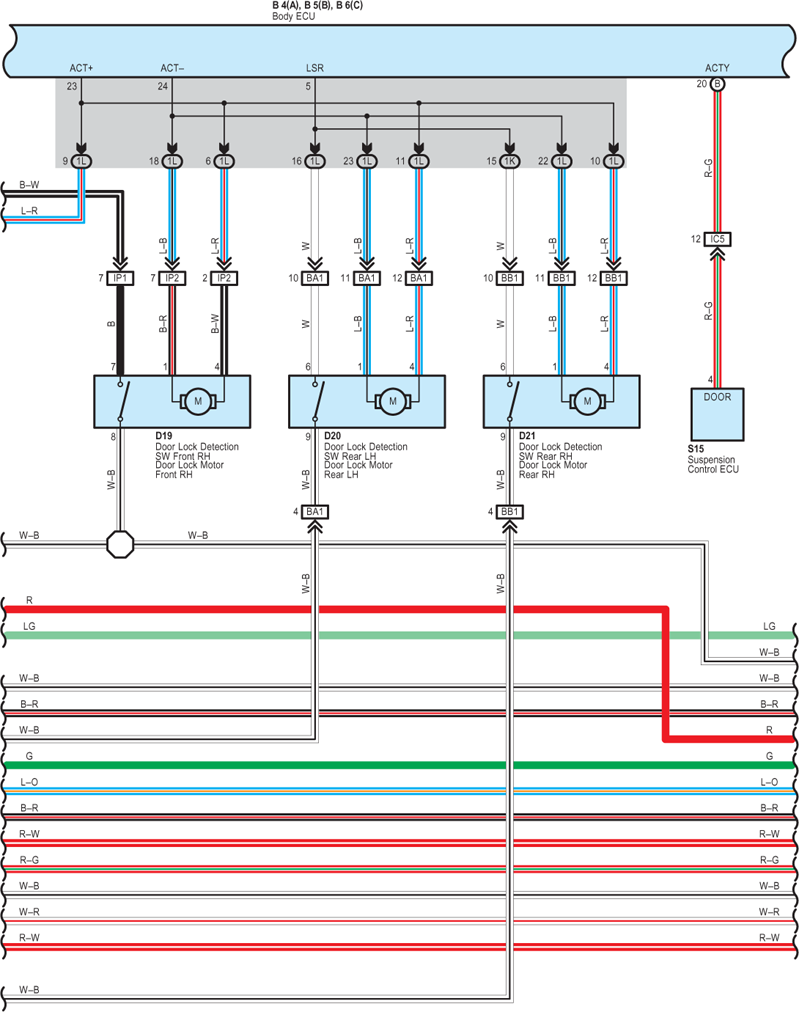

Fig 14: Multiplex Communication System - BEAN - Circuit Diagram (14 Of 22)

G07623331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

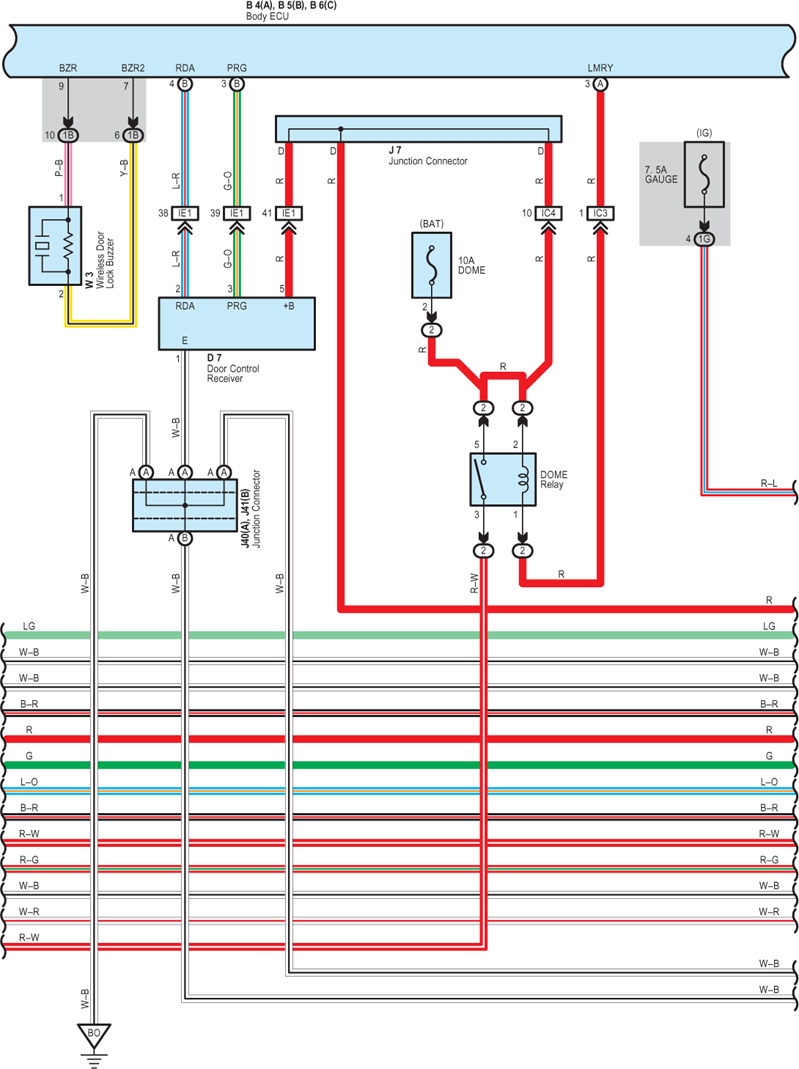

Fig 15: Multiplex Communication System - BEAN - Circuit Diagram (15 Of 22)

G07623332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

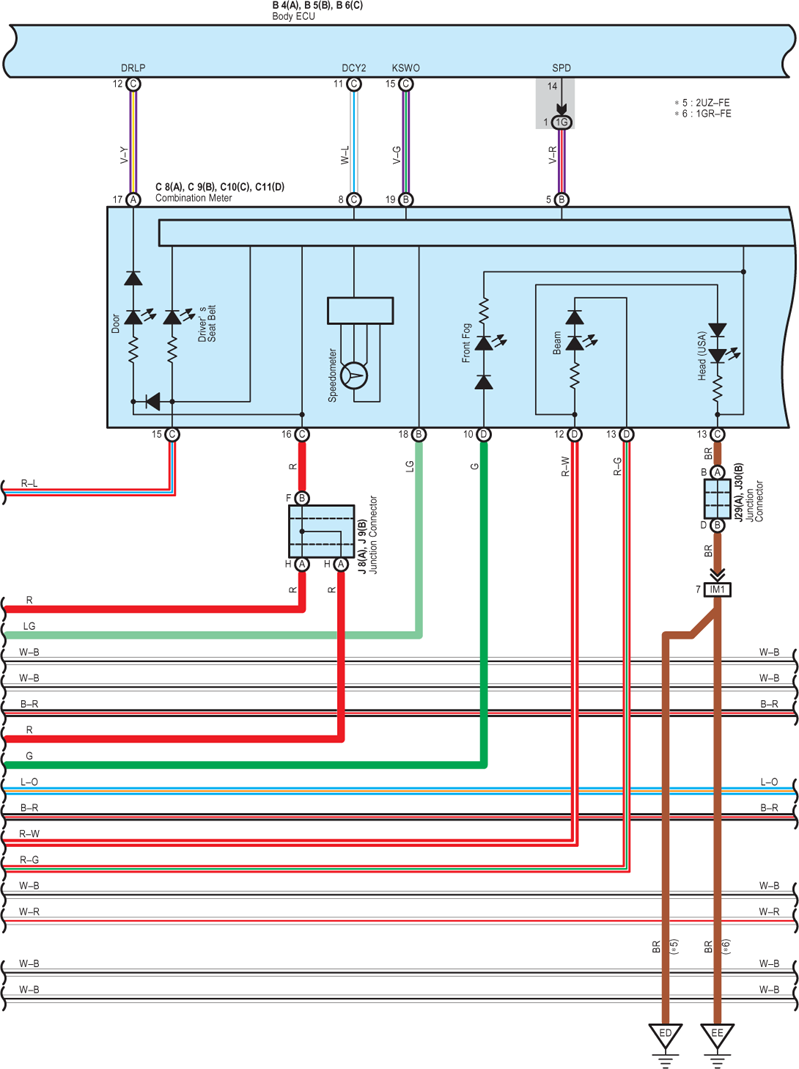

Fig 16: Multiplex Communication System - BEAN - Circuit Diagram (16 Of 22)

G07623333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

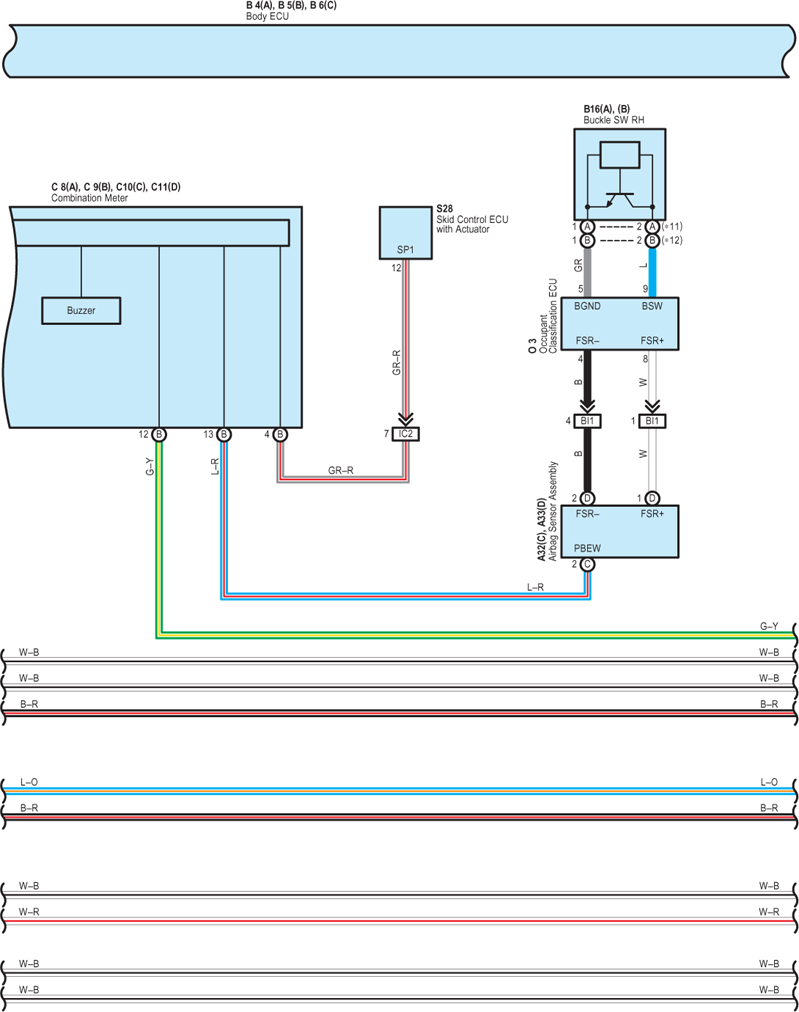

Fig 17: Multiplex Communication System - BEAN - Circuit Diagram (17 Of 22)

G07623334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

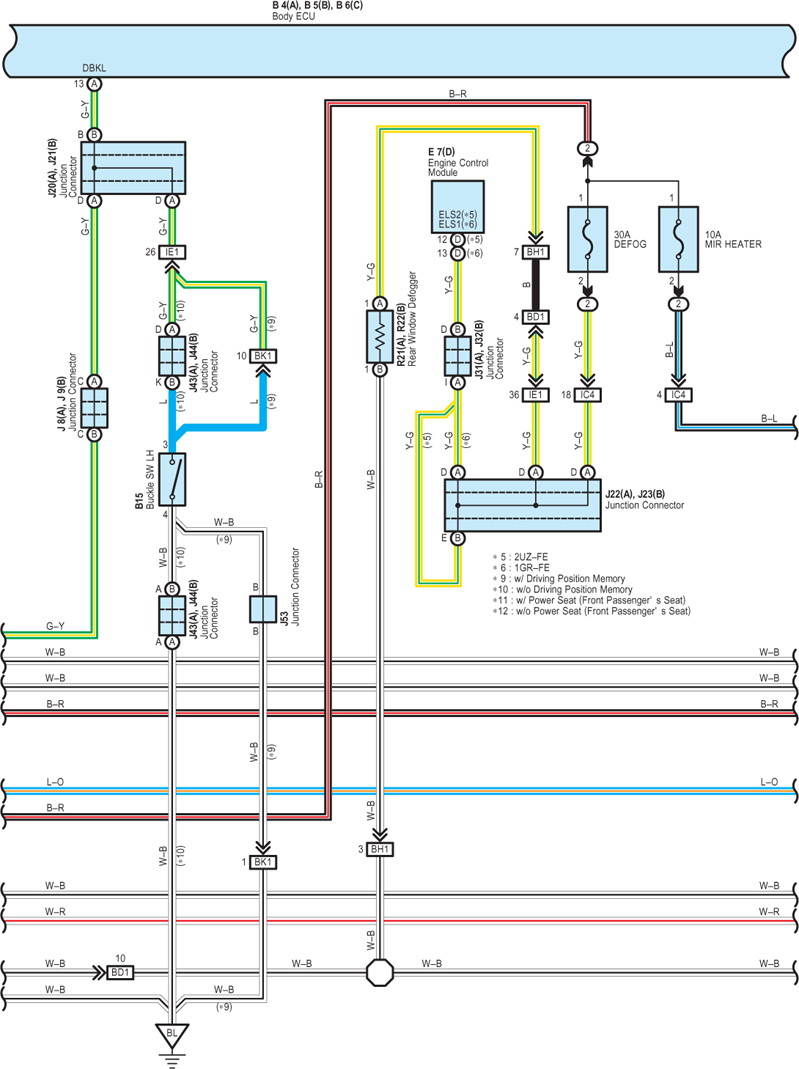

Fig 18: Multiplex Communication System - BEAN - Circuit Diagram (18 Of 22)

G07623335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

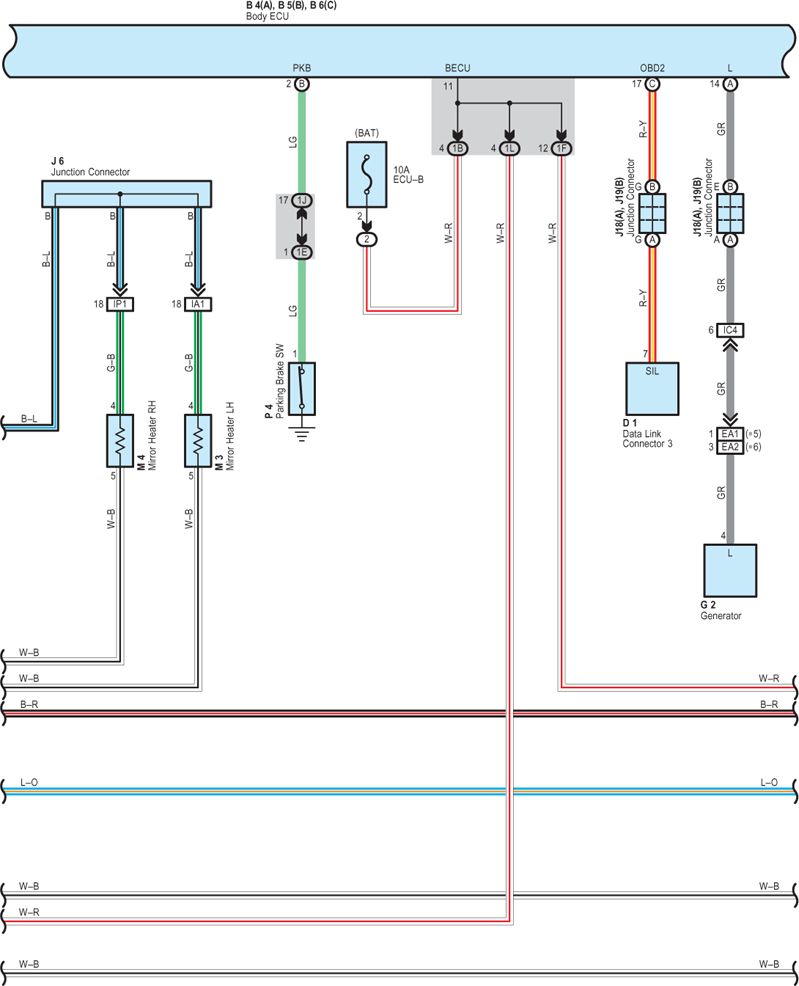

Fig 19: Multiplex Communication System - BEAN - Circuit Diagram (19 Of 22)

G07623336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

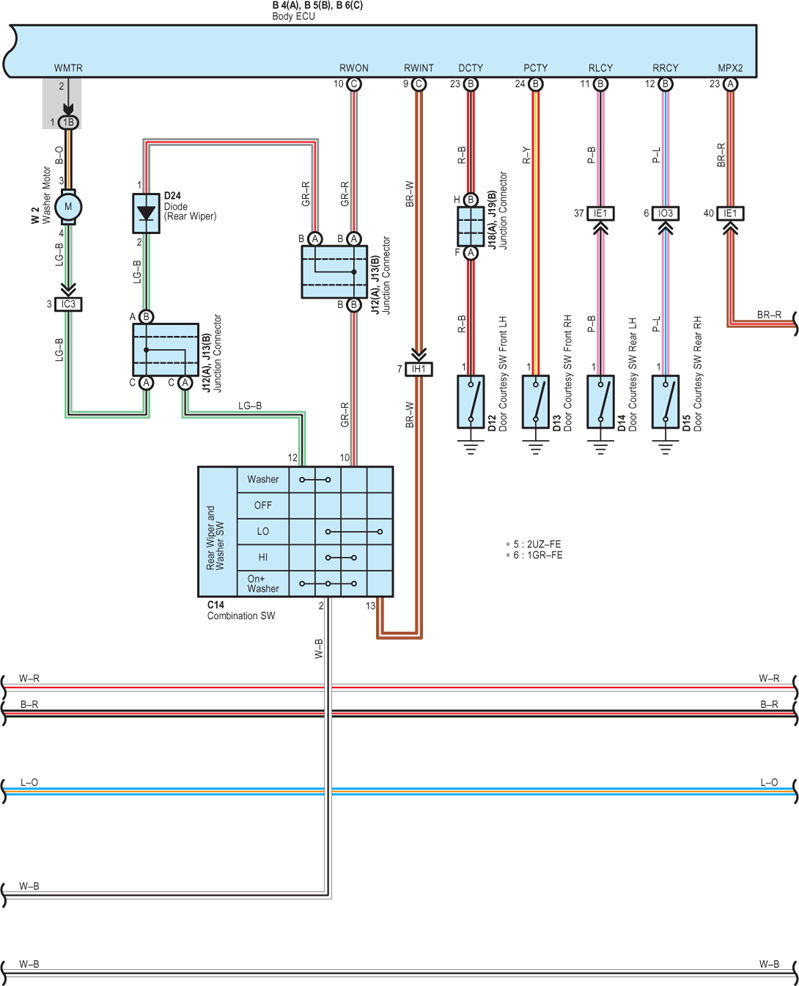

Fig 20: Multiplex Communication System - BEAN - Circuit Diagram (20 Of 22)

G07623337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

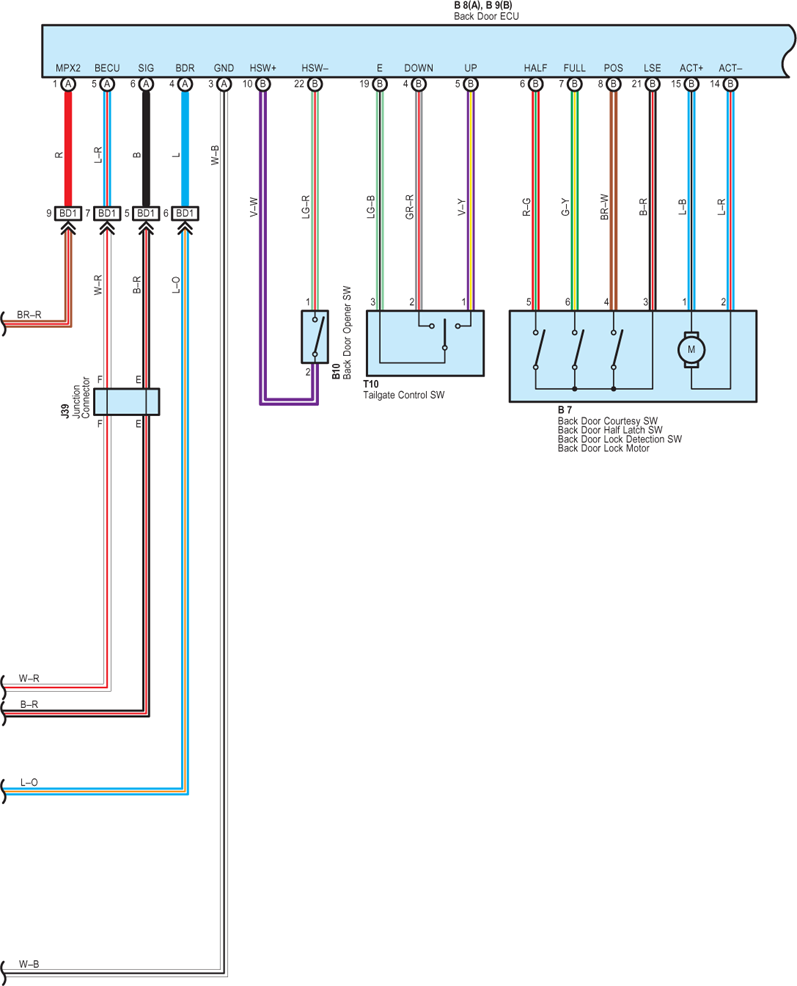

Fig 21: Multiplex Communication System - BEAN - Circuit Diagram (21 Of 22)

G07623338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

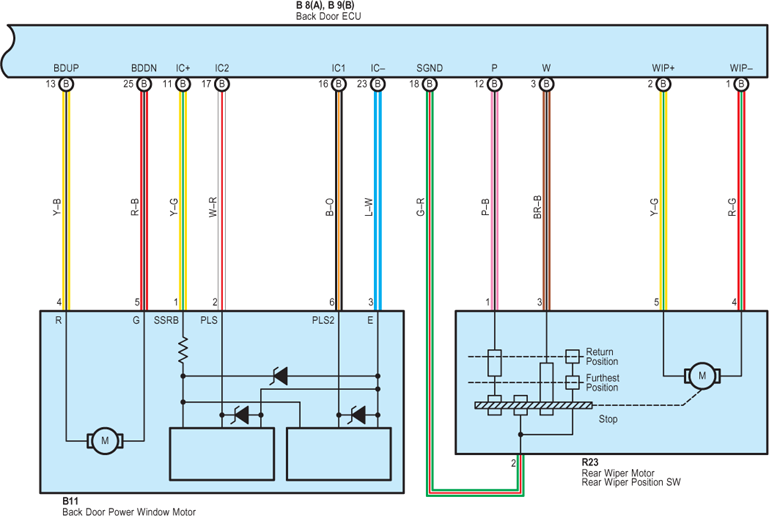

Fig 22: Multiplex Communication System - BEAN - Circuit Diagram (22 Of 22)

G07623339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
