Multiplex Communication System - CAN Bus: Notes

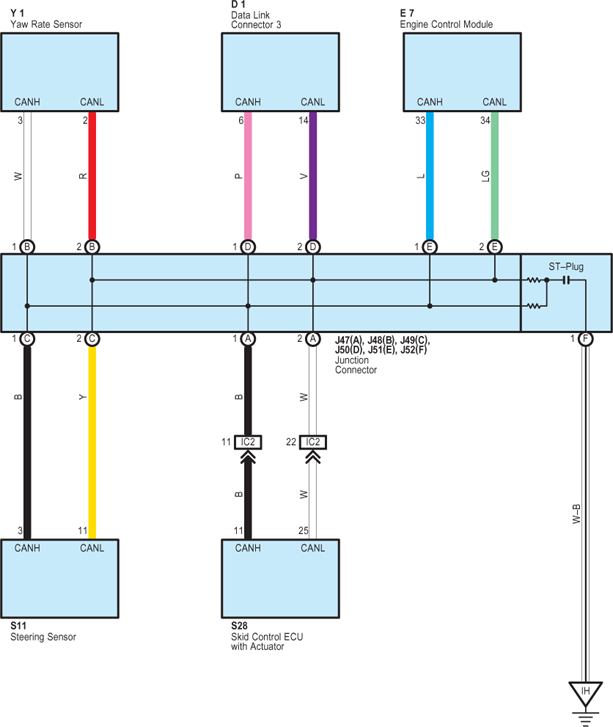

Fig 1: Multiplex Communication System - CAN BUS - Circuit Diagram
G07623317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
