4Runner Limited, 4.7 T, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Stop Light System
›
Notes
Stop Light System: Notes

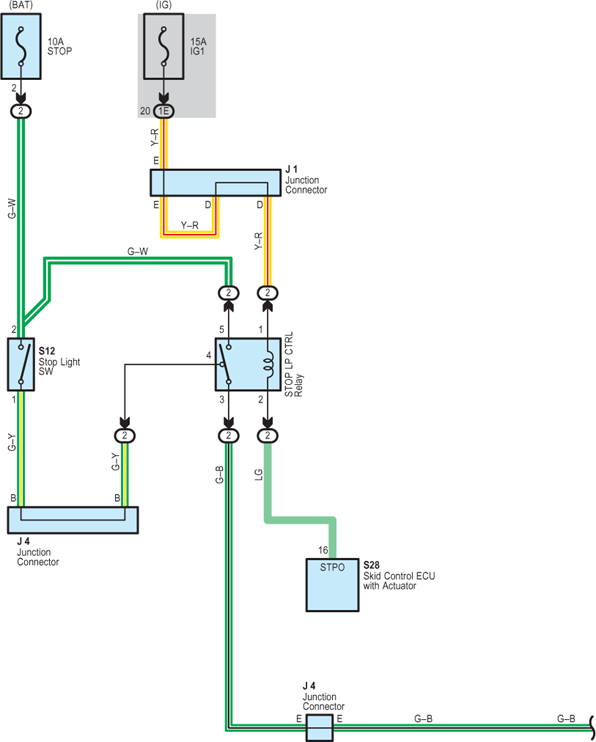

Fig 1: Stop Light - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

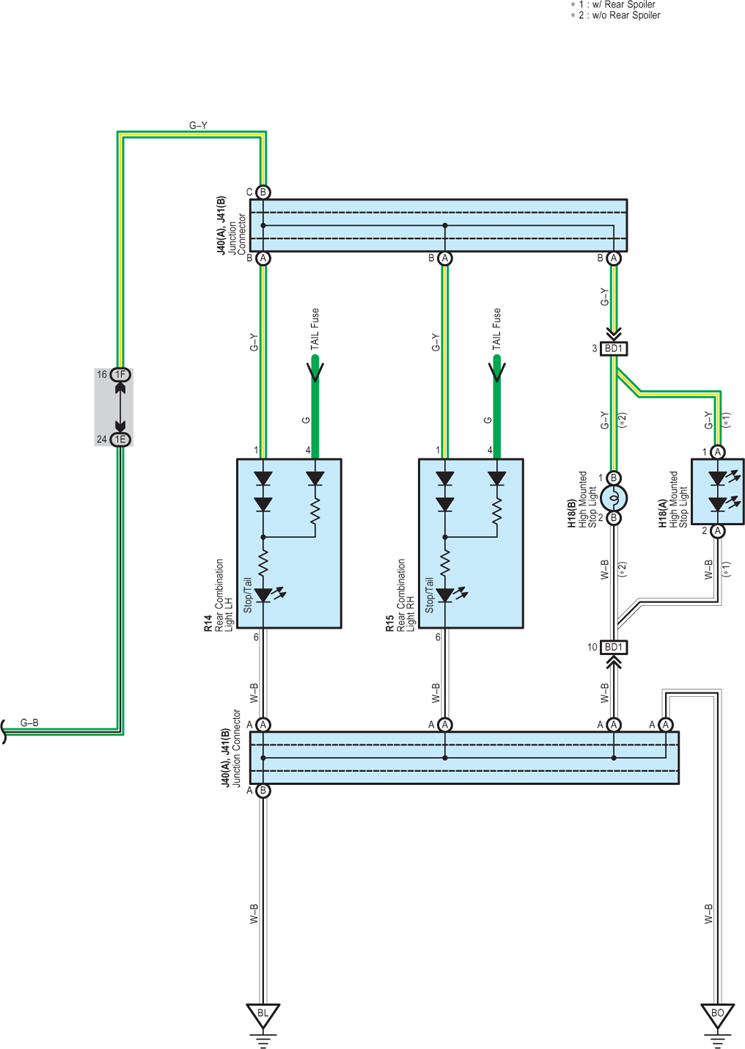

Fig 2: Stop Light - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
