Theft Deterrent System: Notes

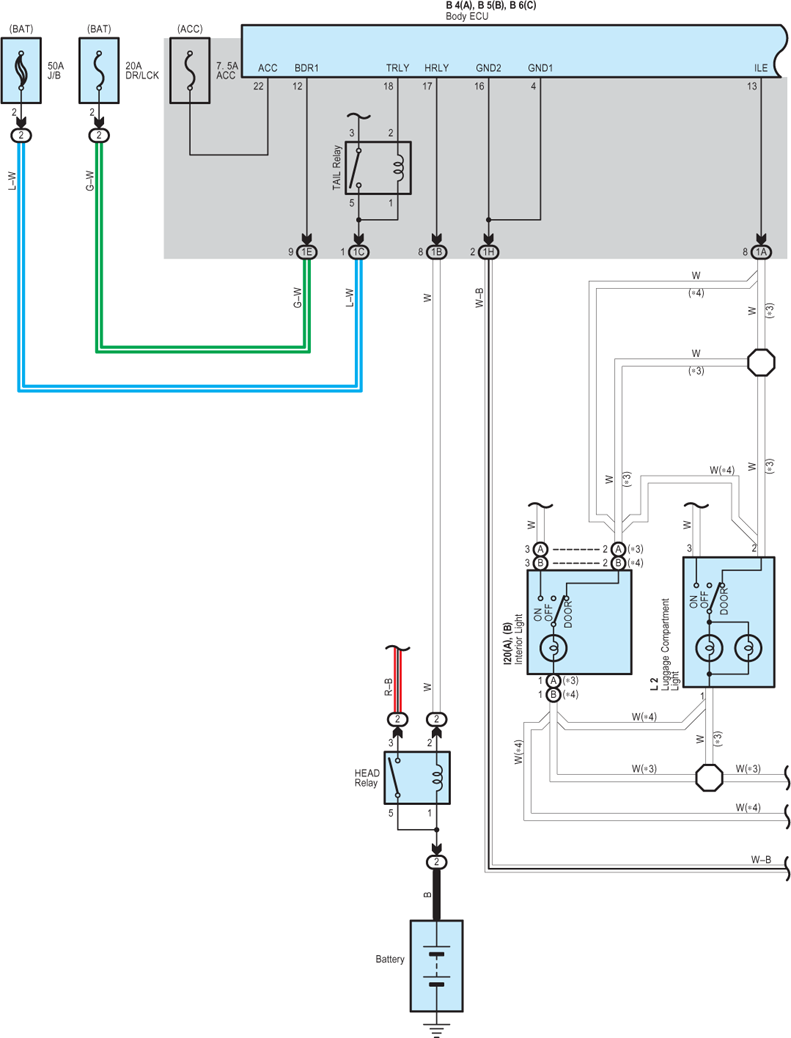

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 6)

G07623396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

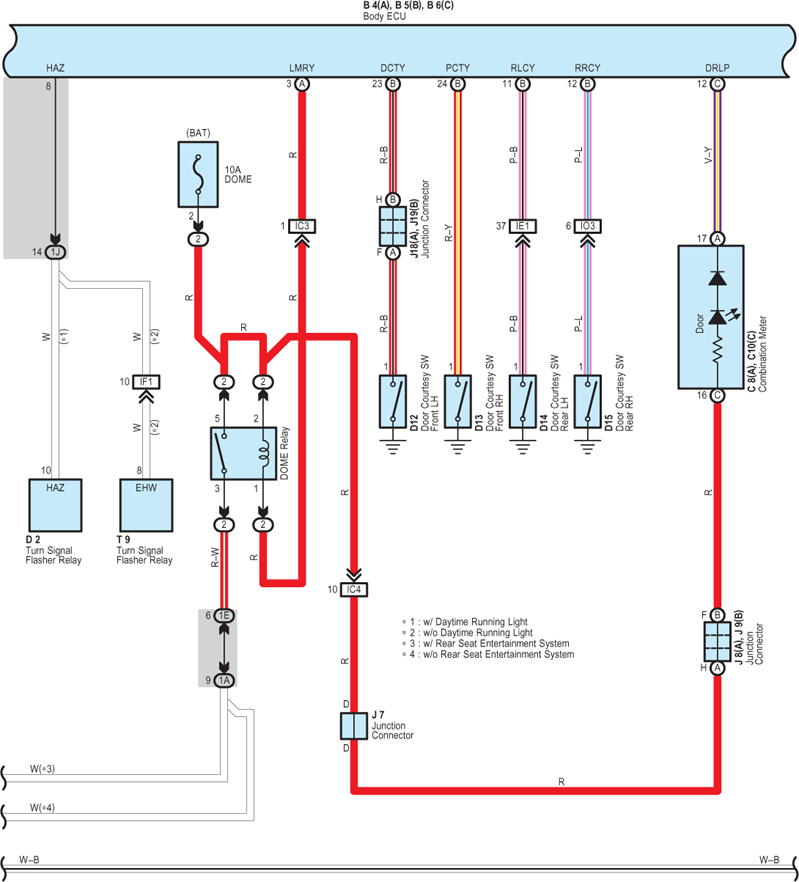

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 6)

G07623397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

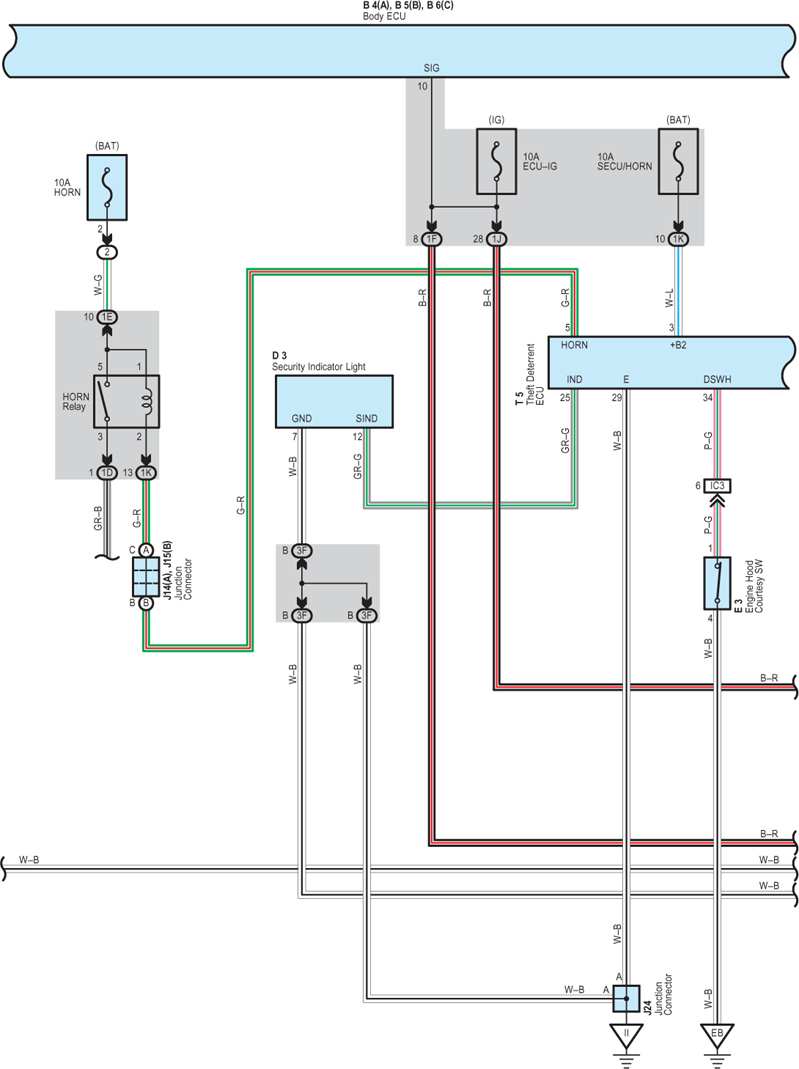

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 6)

G07623398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

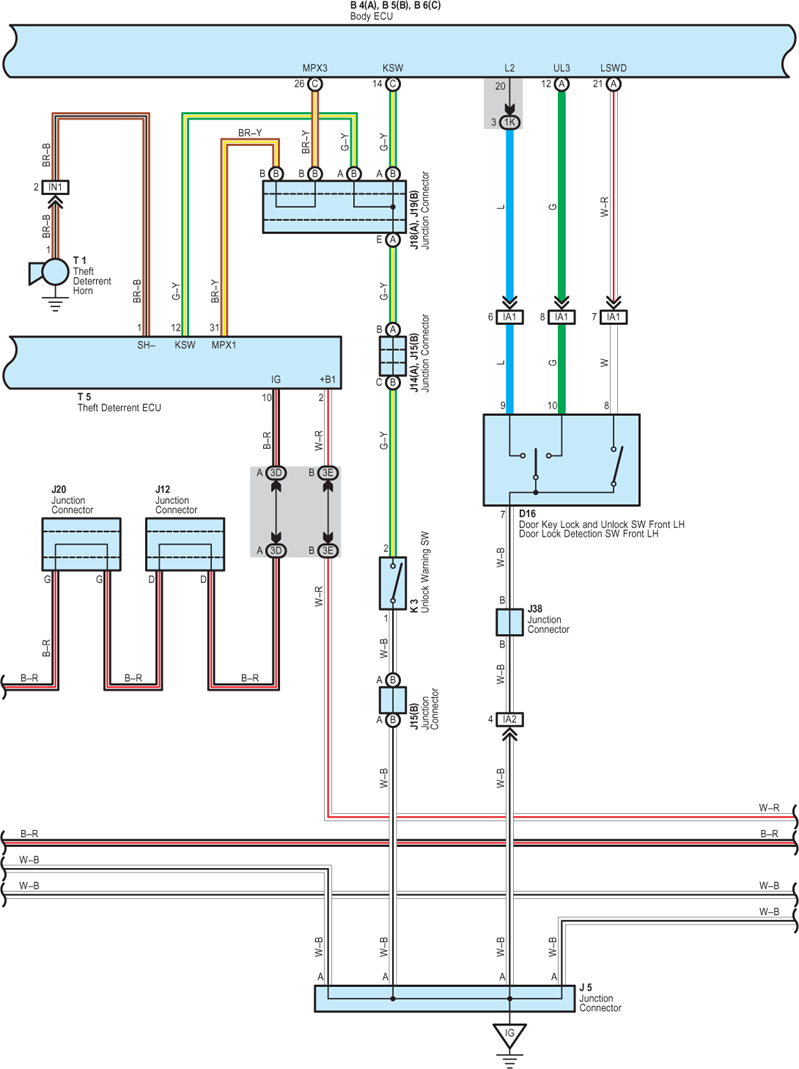

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 6)

G07623399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

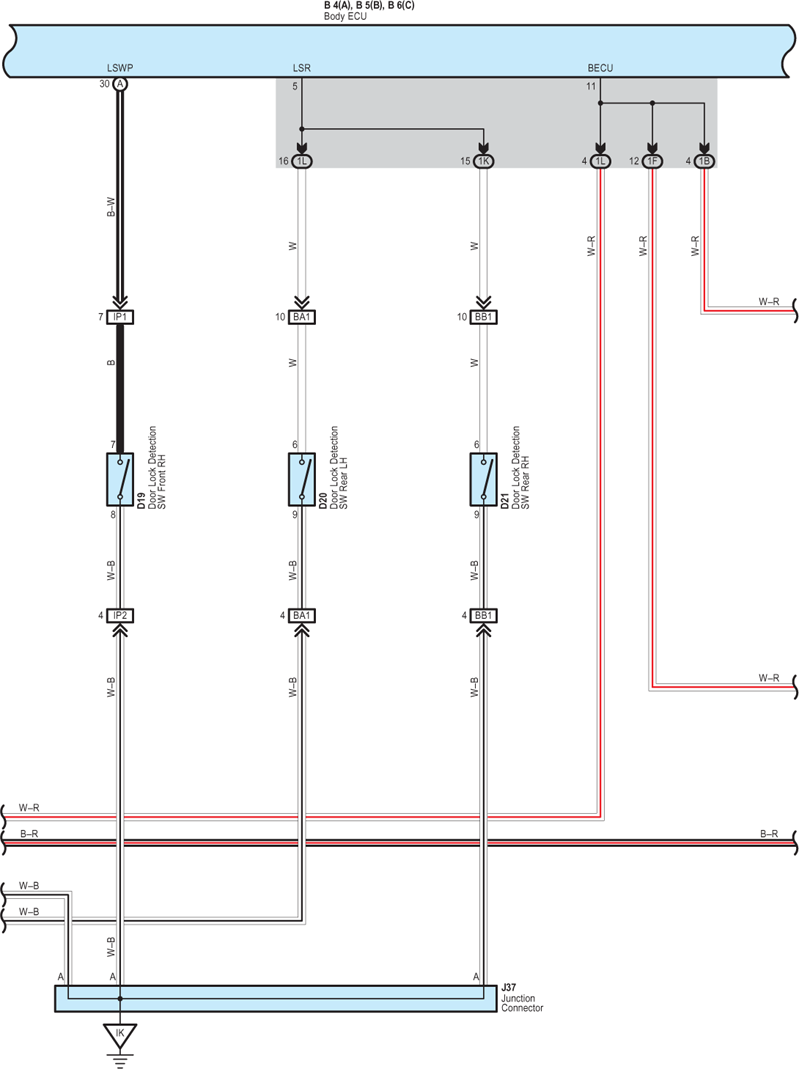

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 6)

G07623400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

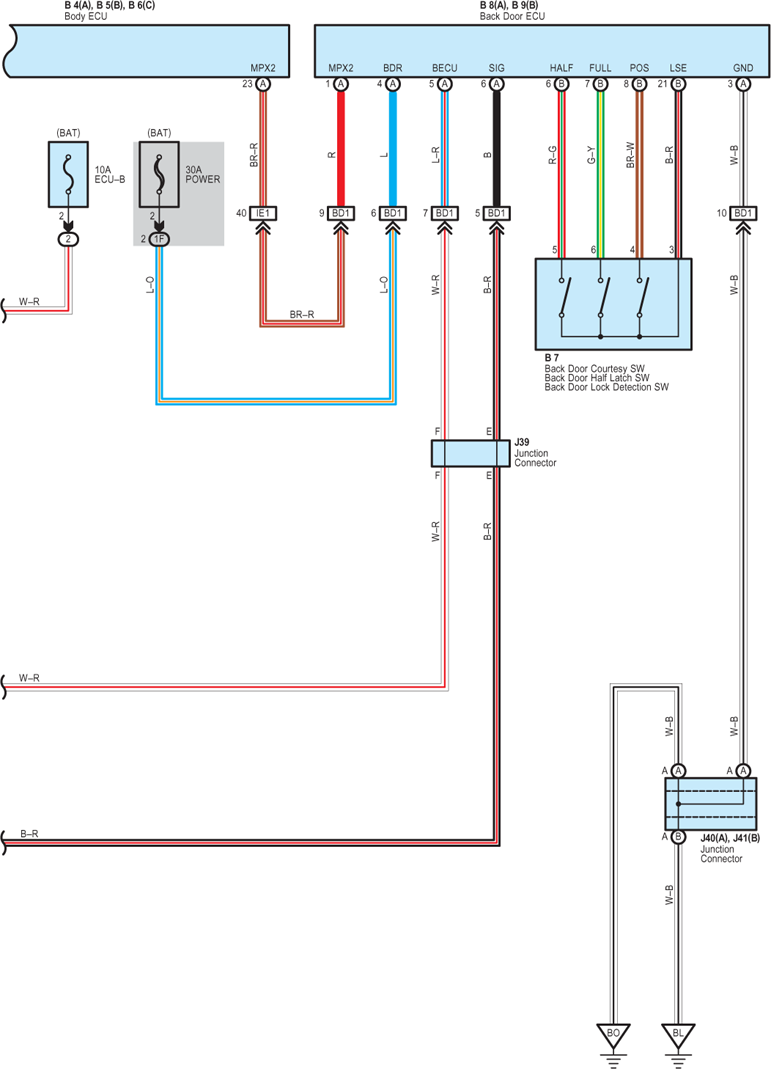

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 6)

G07623401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
