Wireless Door Lock Control System: Notes

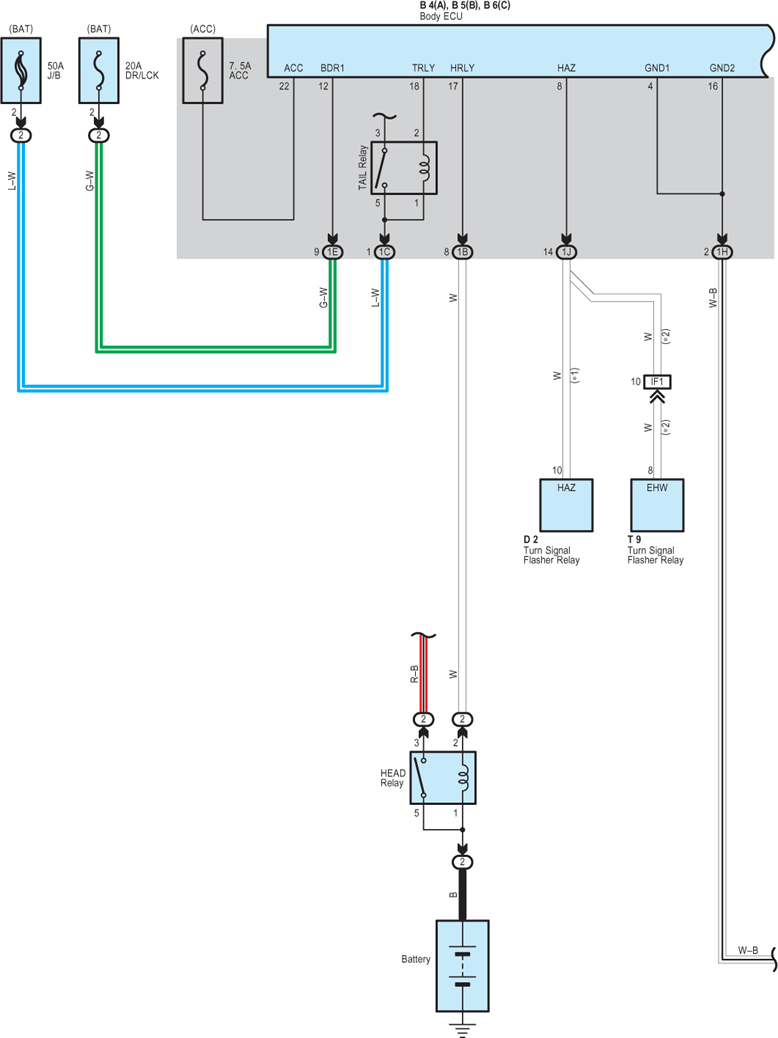

Fig 1: Wireless Door Lock Control - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

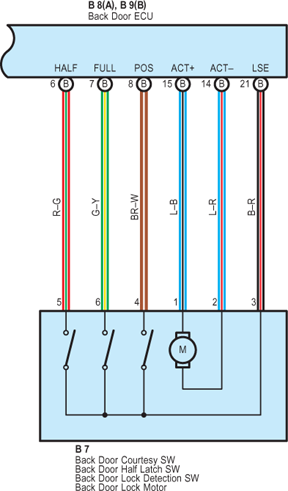

Fig 2: Wireless Door Lock Control - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

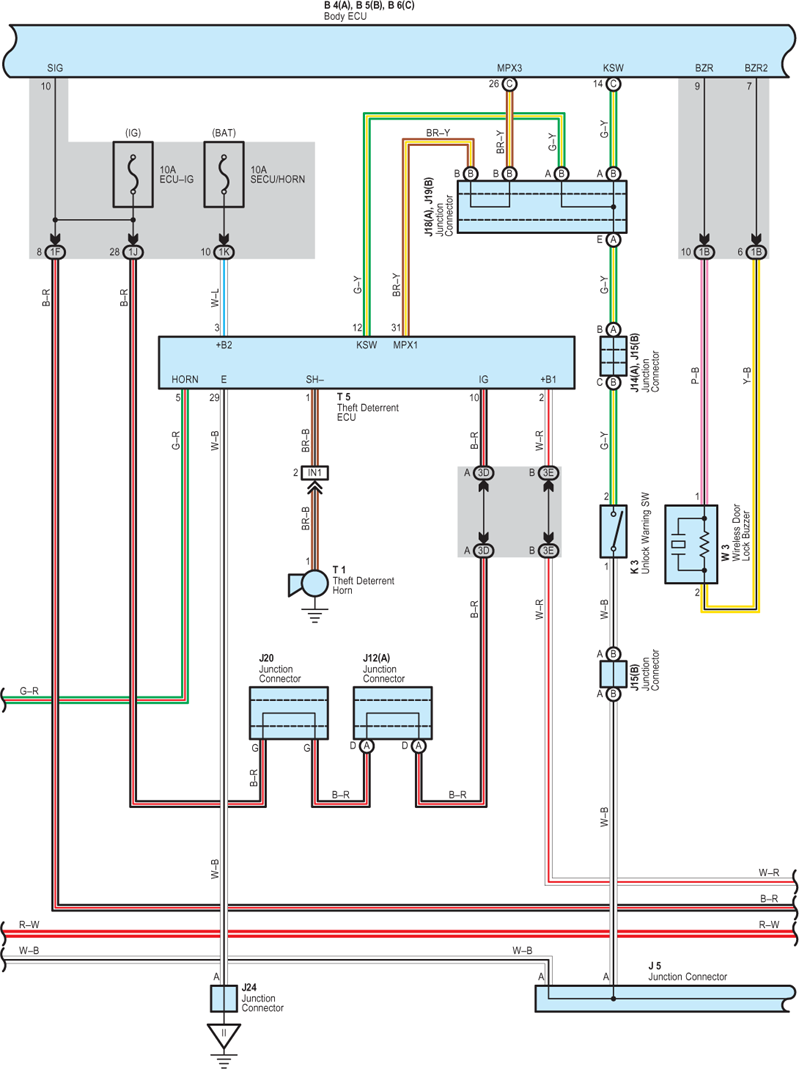

Fig 3: Wireless Door Lock Control - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

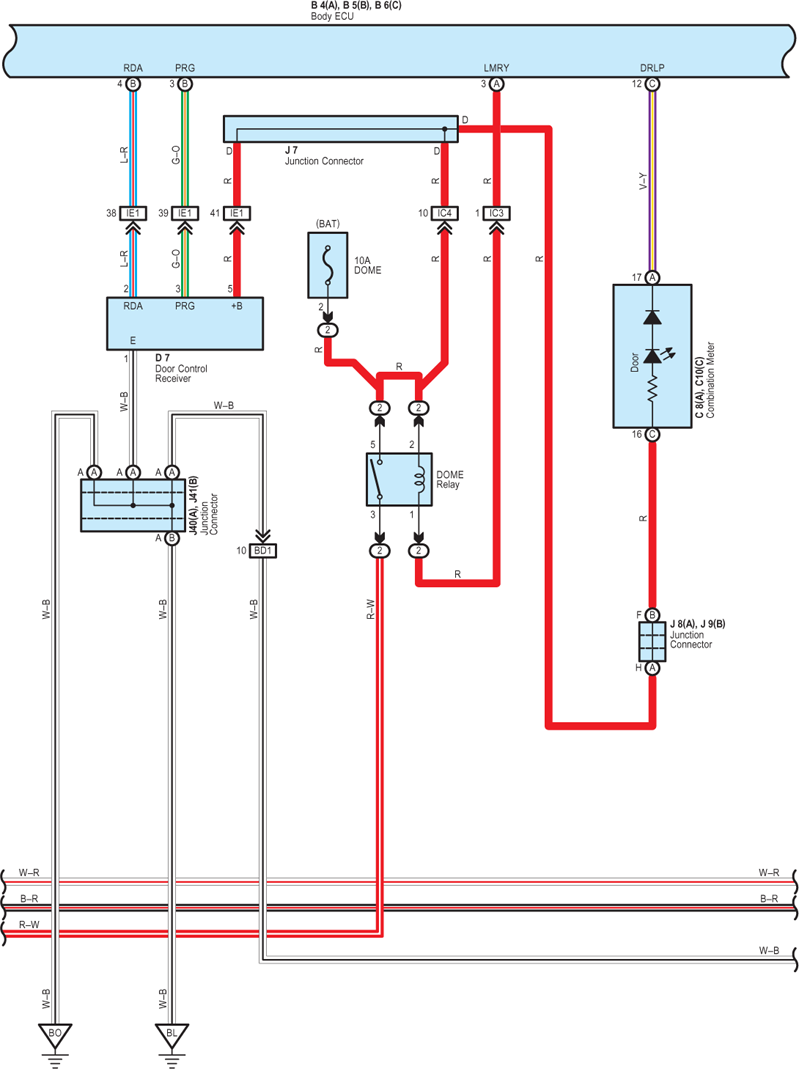

Fig 4: Wireless Door Lock Control - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

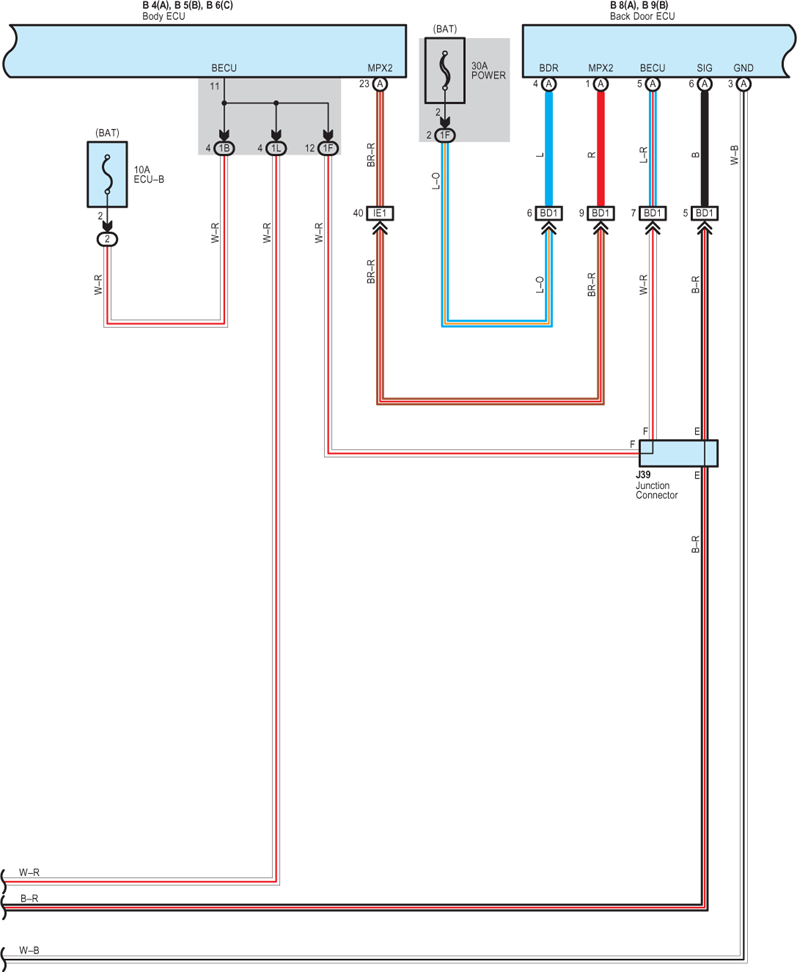

Fig 5: Wireless Door Lock Control - Circuit Diagram (5 Of 7)

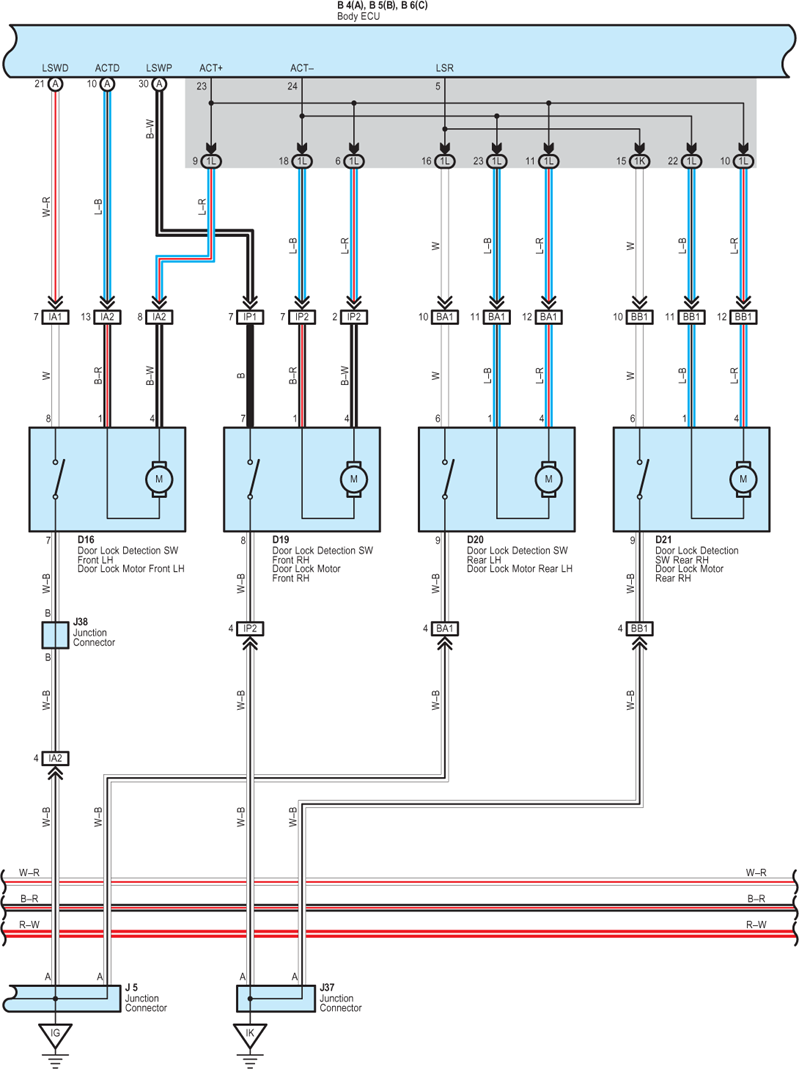

Fig 6: Wireless Door Lock Control - Circuit Diagram (6 Of 7)

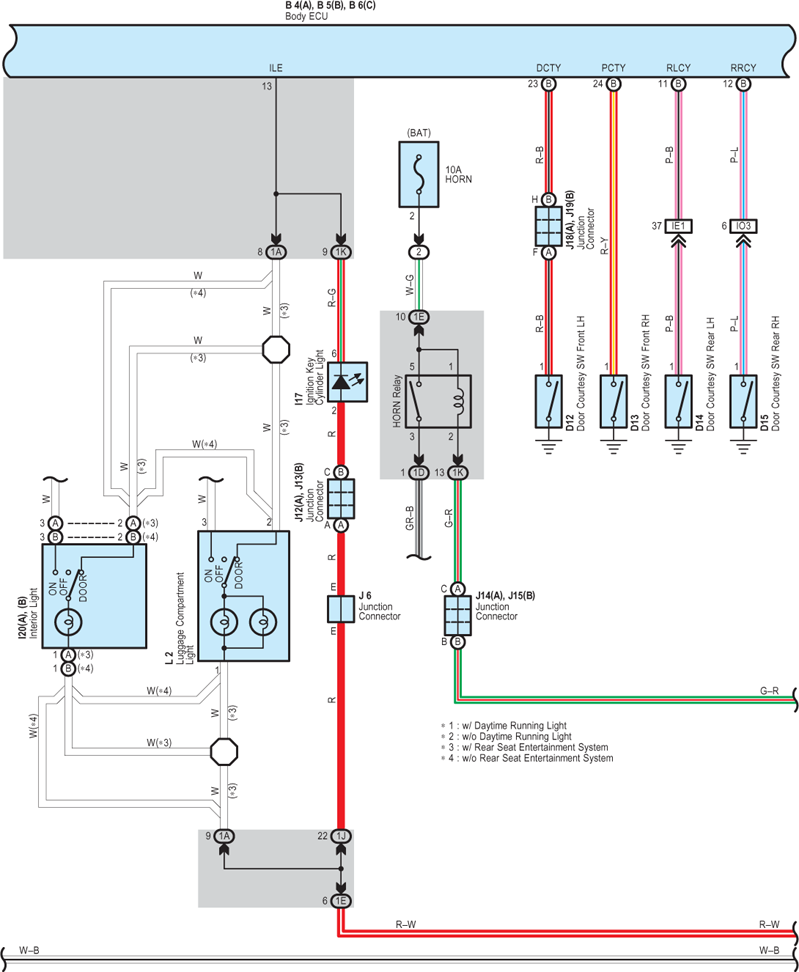

Fig 7: Wireless Door Lock Control - Circuit Diagram (7 Of 7)
