Multiplex Communication System - BEAN: Notes

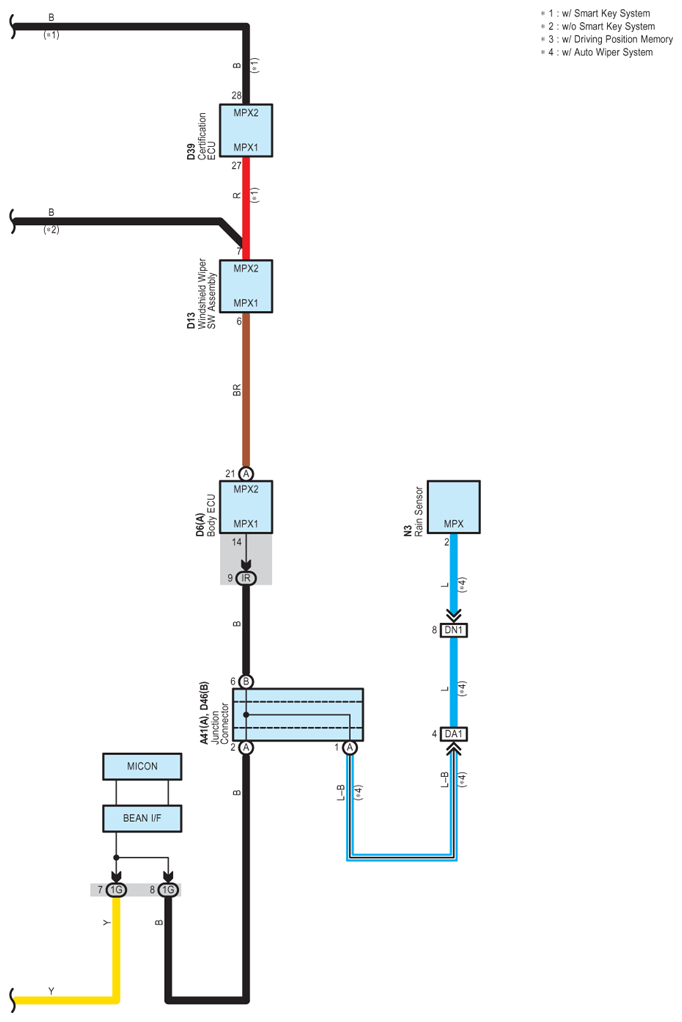

Fig 1: Multiplex Communication System - BEAN - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

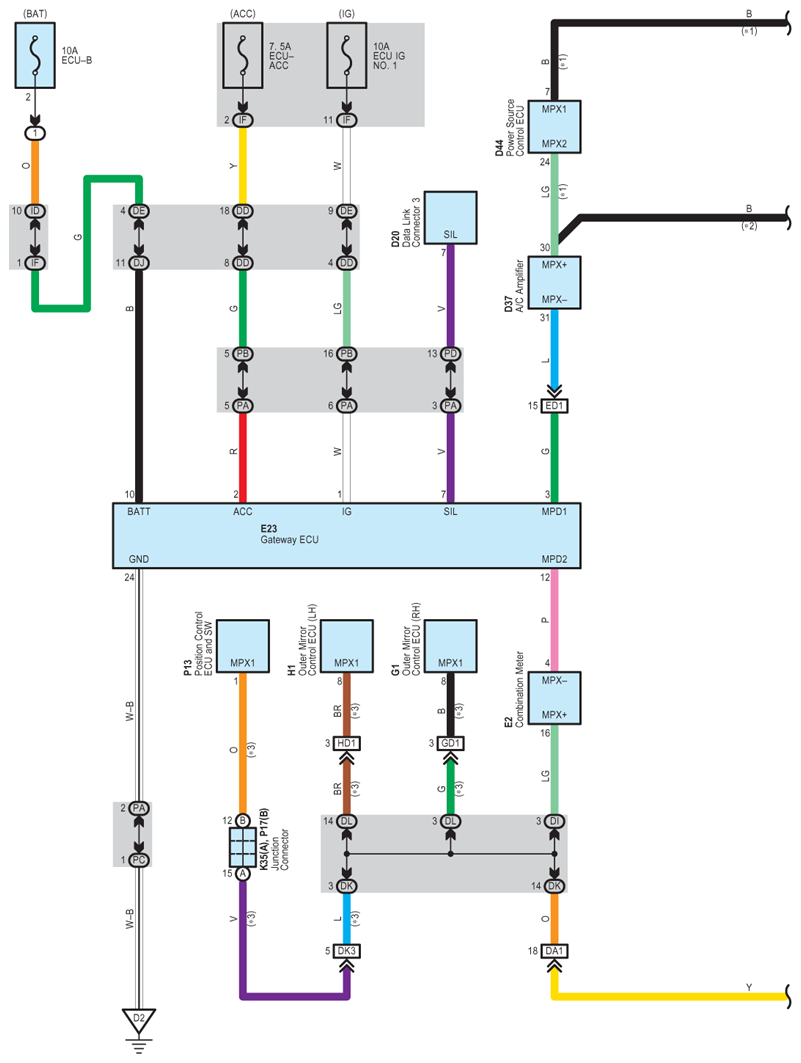

Fig 2: Multiplex Communication System - BEAN - Circuit Diagram (2 Of 2)
