Windshield/Window Glass
›
Power Window Control System
›
Front Passenger Side Power Window Switch Circuit
›
Wiring Diagram
Front Passenger Side Power Window Switch Circuit: Wiring Diagram

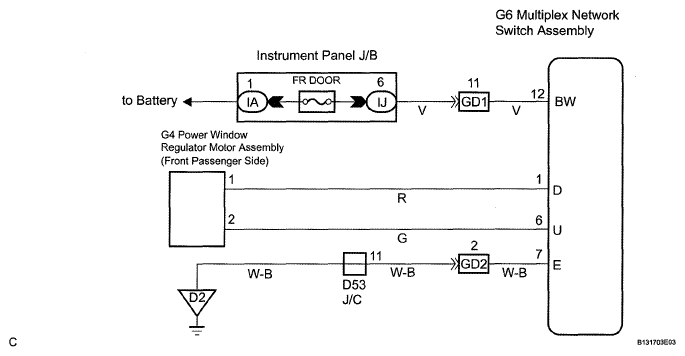

Fig 1: Front Passenger Side Power Window Switch - Wiring Diagram
