Audio System with 9 Speaker: Notes

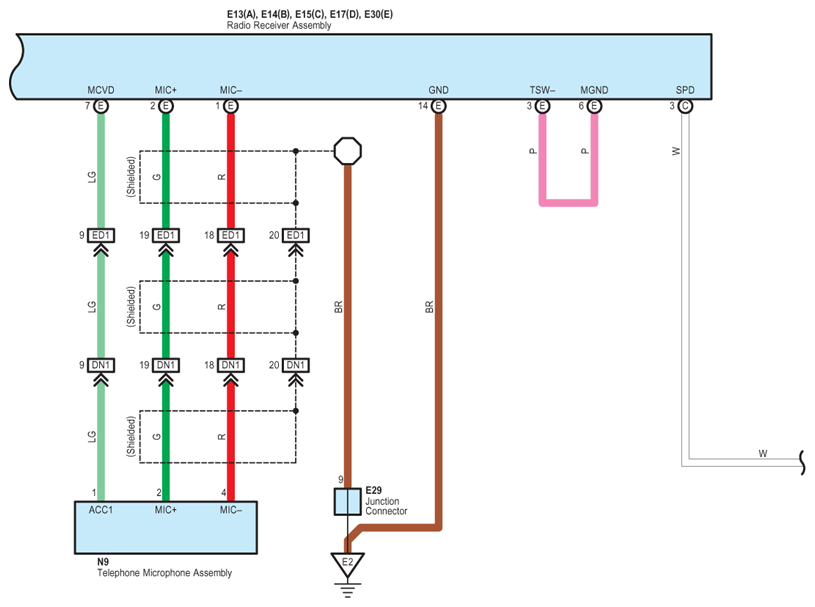

Fig 1: Audio System With 9 Speaker - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

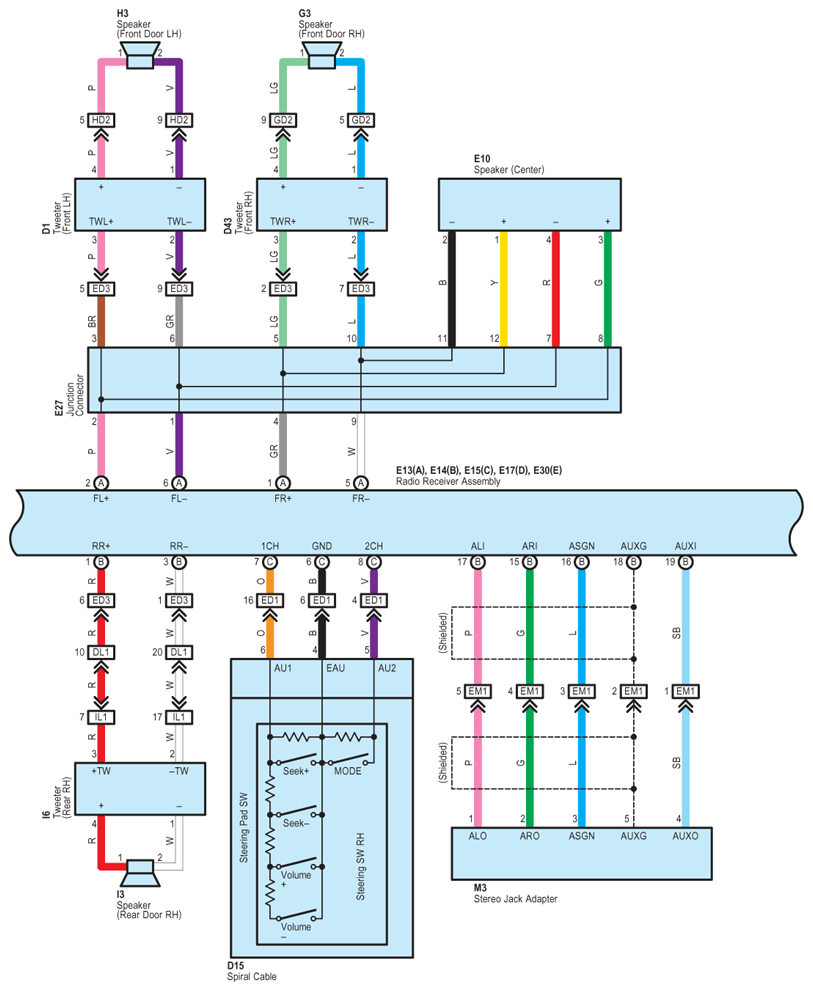

Fig 2: Audio System With 9 Speaker - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Audio System With 9 Speaker - Circuit Diagram (3 Of 4)

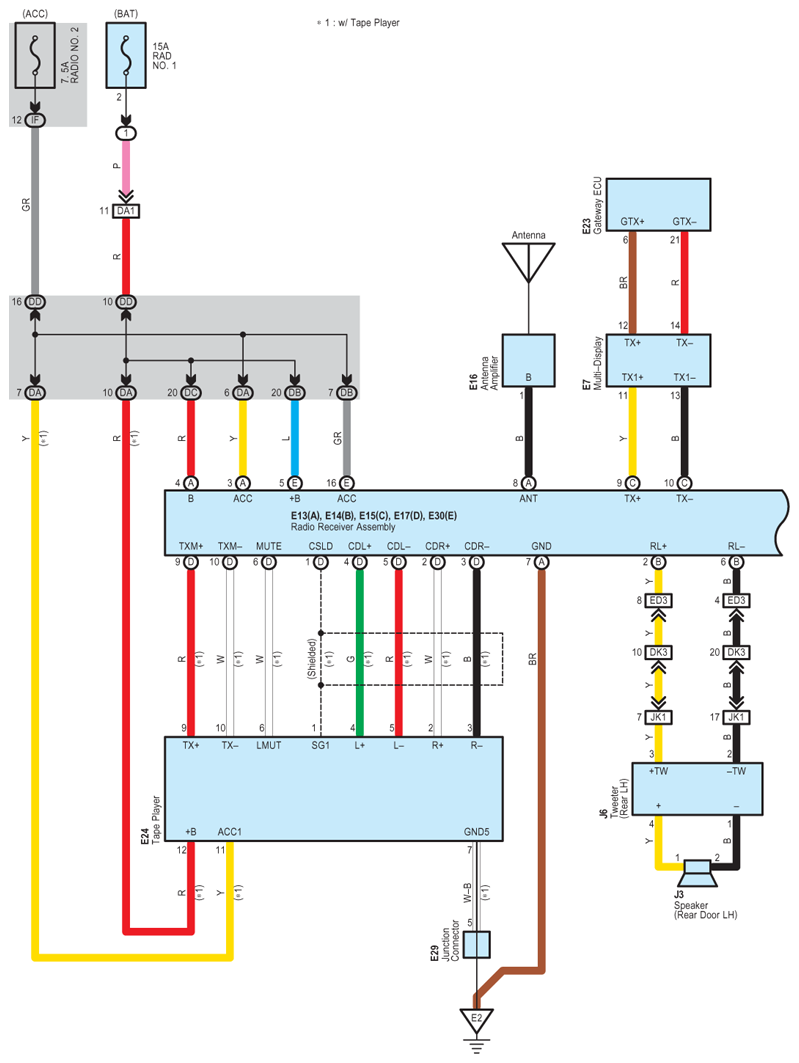

Fig 4: Audio System With 9 Speaker - Circuit Diagram (4 Of 4)
