Mirror Heater and Rear Window Defogger System
›
Notes
Mirror Heater and Rear Window Defogger System: Notes

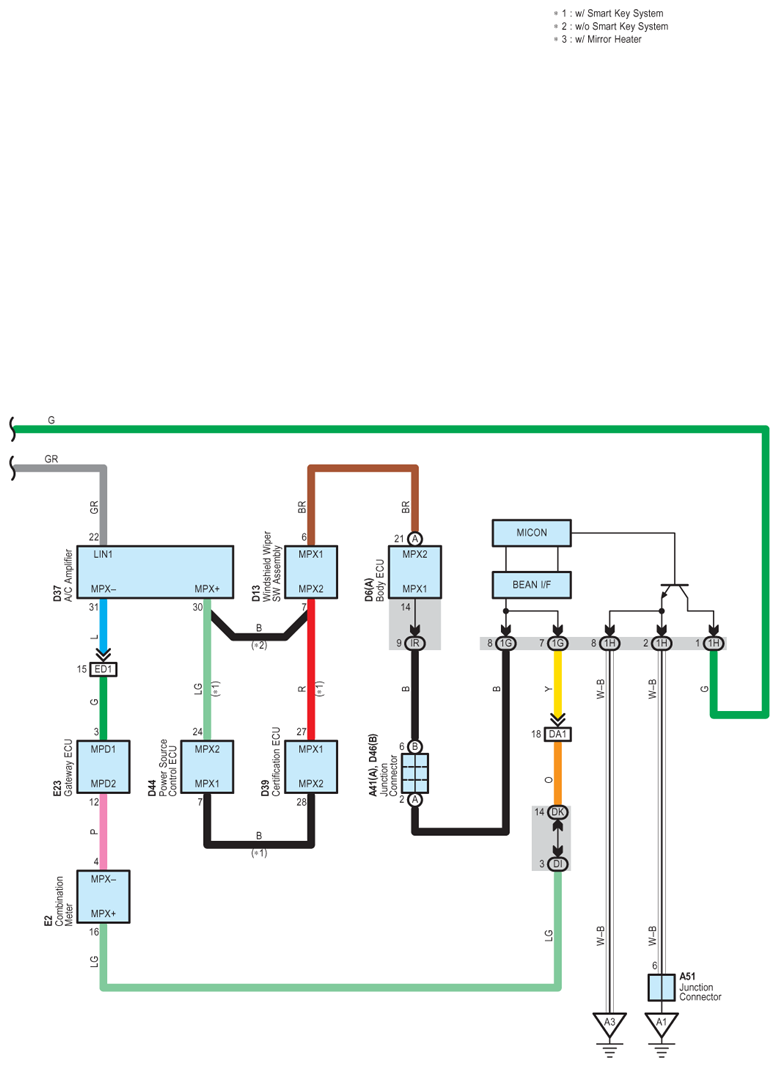

Fig 1: Mirror Heater And Rear Window Defogger - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

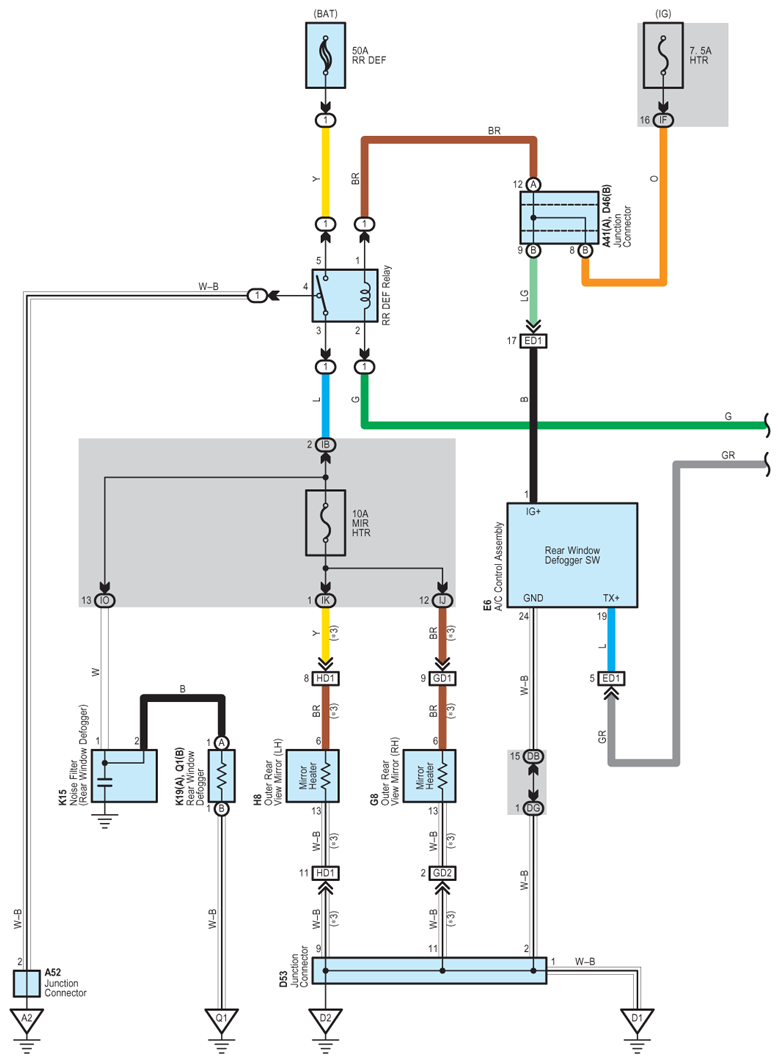

Fig 2: Mirror Heater And Rear Window Defogger - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
