Multiplex Communication System - CAN: Notes

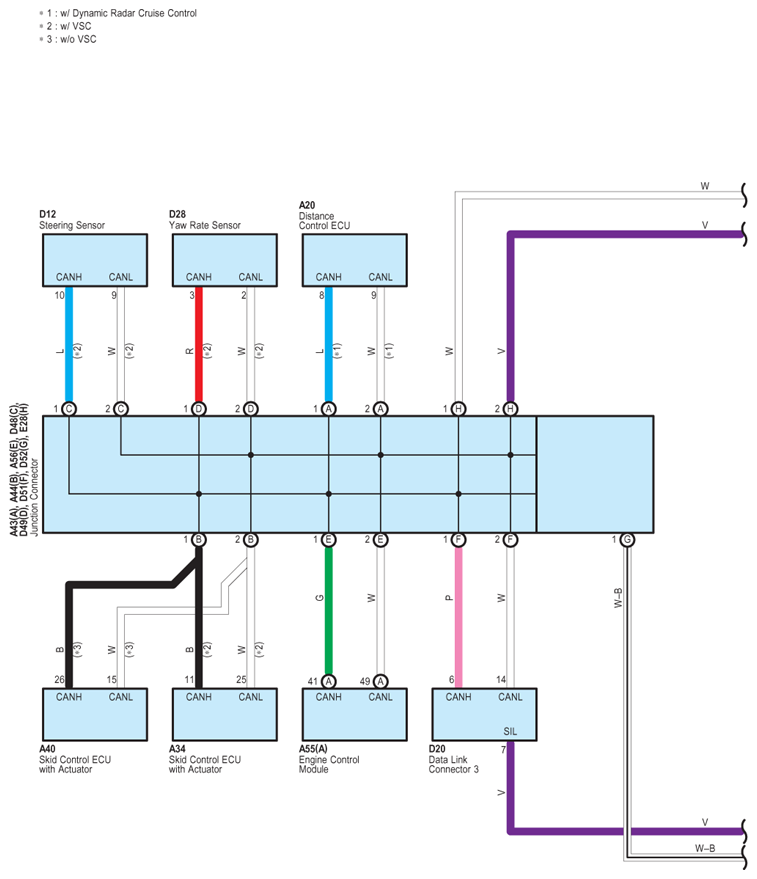

Fig 1: Multiplex Communication System - CAN - Circuit Diagram (1 Of 2)
G07616435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

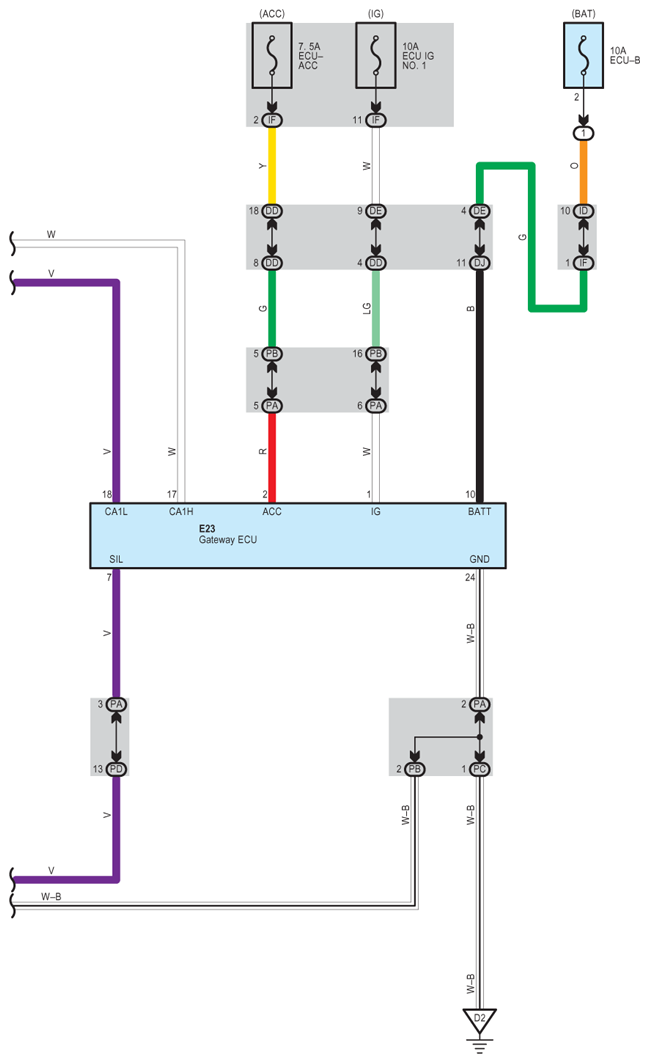

Fig 2: Multiplex Communication System - CAN - Circuit Diagram (2 Of 2)
G07616436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
