Seat Heater without Climate Control System Seat: Notes

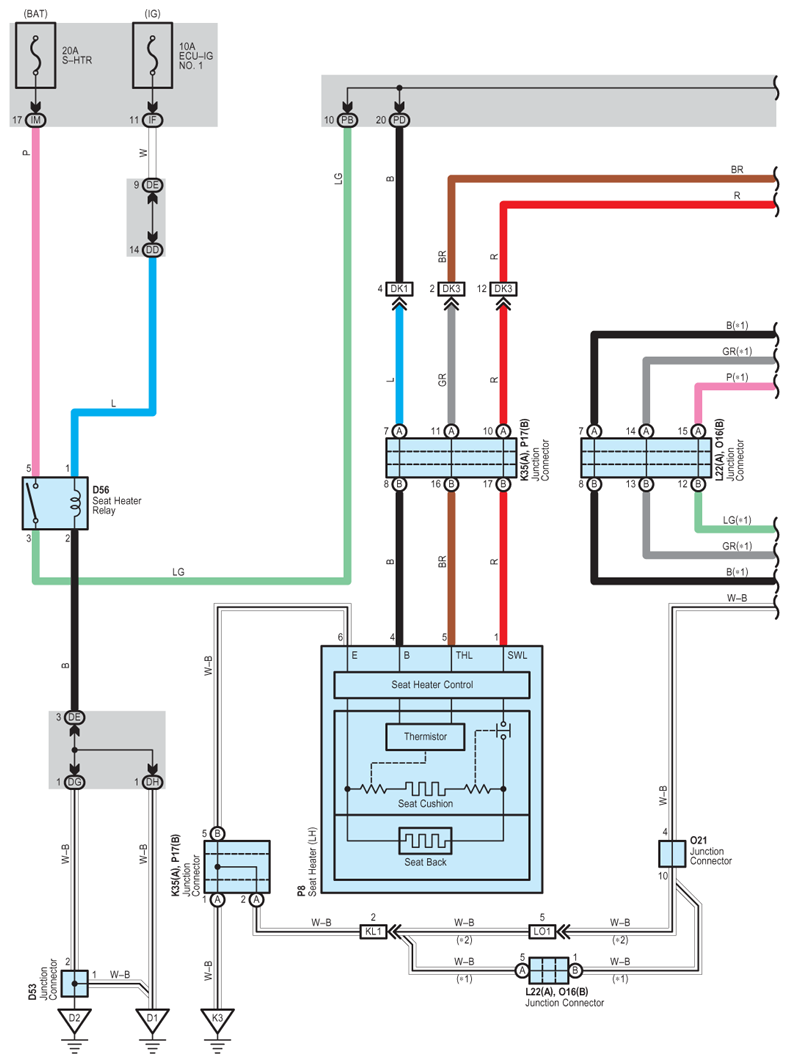

Fig 1: Seat Heater Without Climate Control Seat - Circuit Diagram (1 Of 2)
G07616589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

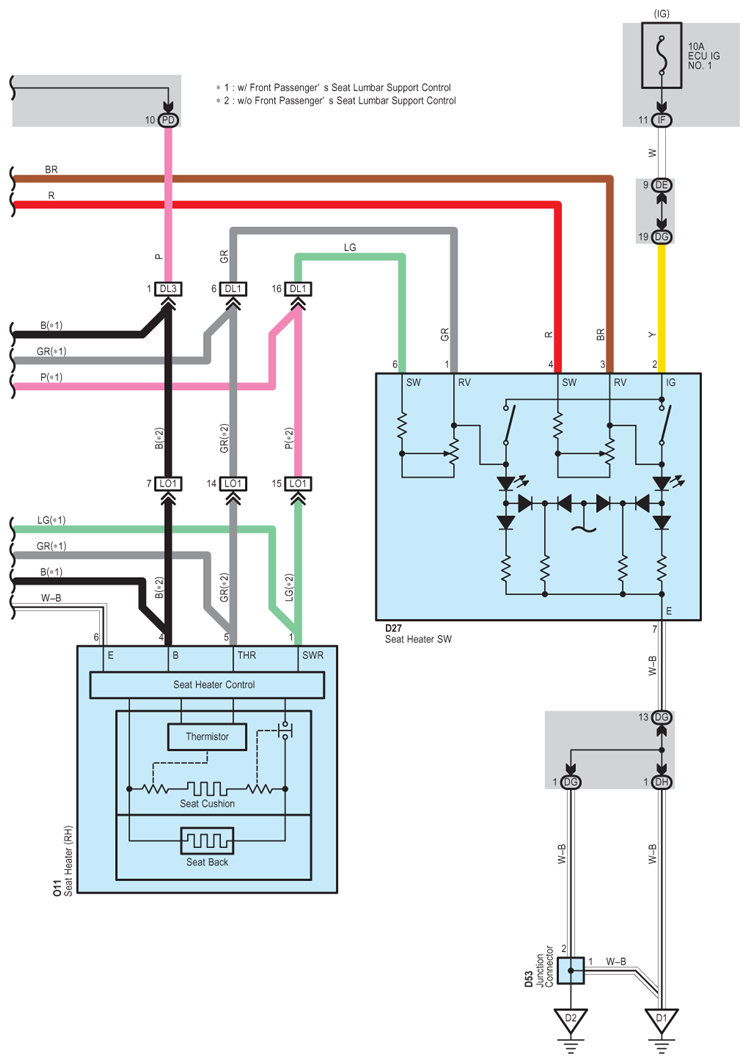

Fig 2: Seat Heater Without Climate Control Seat - Circuit Diagram (2 Of 2)
G07616590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
