Avalon XLS
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Starting System without Smart Key System
›
Notes
Starting System without Smart Key System: Notes

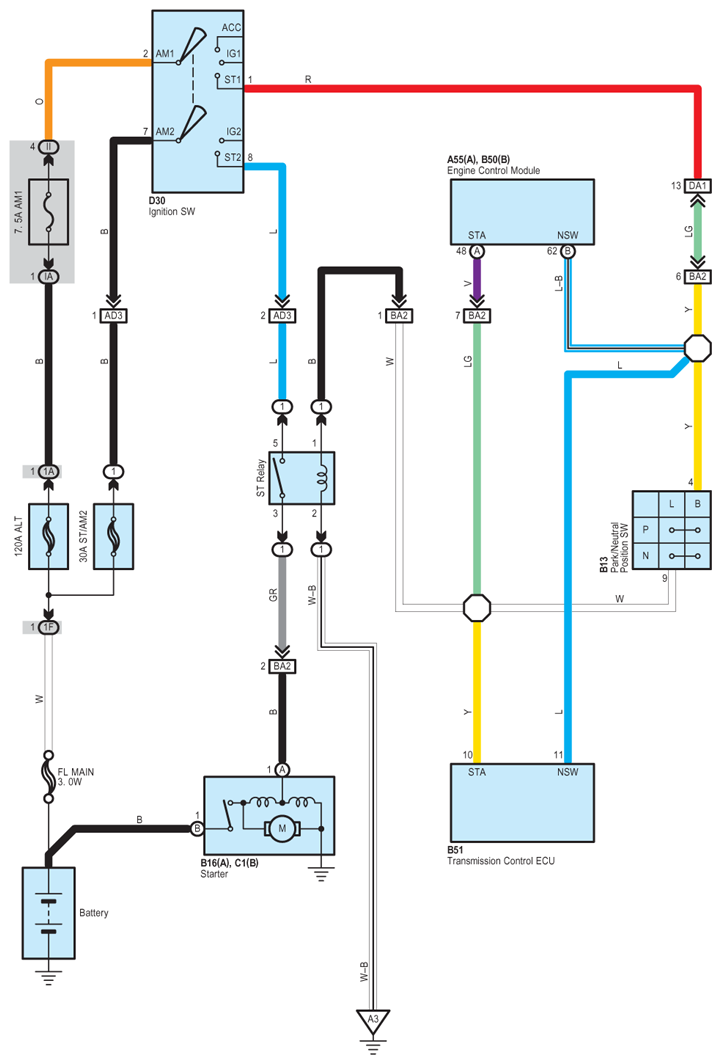

Fig 1: Starting Without Smart Key System - Circuit Diagram
