Operation Check

CHECK POWER SEAT FUNCTION
1. Check the basic functions.
  1. Operate the power seat switches and check that the following functions work:
    - Sliding
    - Reclining
    - Lumbar support (Driver side only)
    - Front vertical (Driver side only)
    - Lifter (Driver side only)

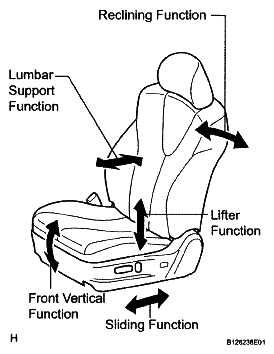

    Fig 1: Checking Power Seat Function
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
