Front Power Seat Control System
›
System Diagram
System Diagram

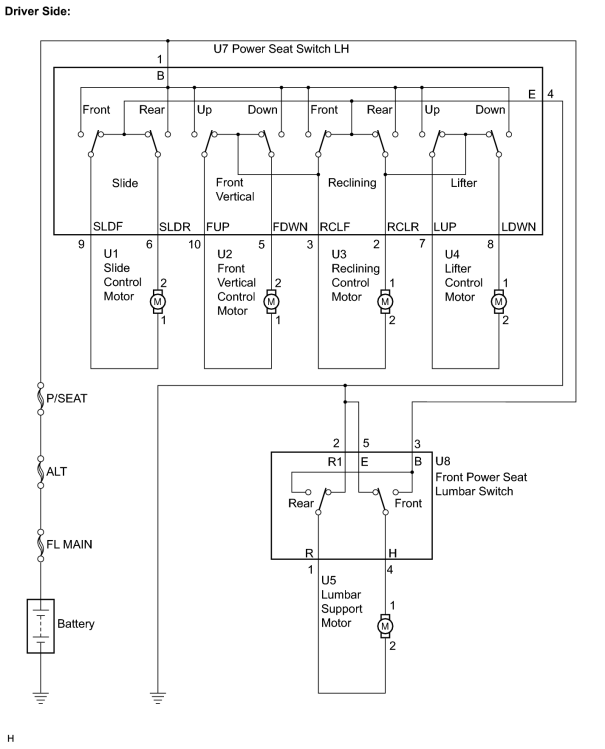

Fig 1: Front Power Seat Control System Diagram - Driver Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

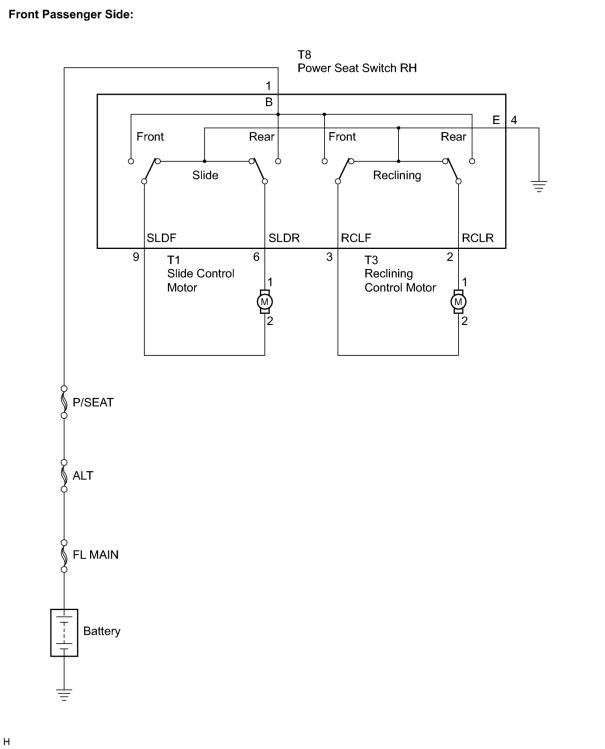

Fig 2: Front Power Seat Control System Diagram - Front Passenger Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
