Power Seat Switch: Components

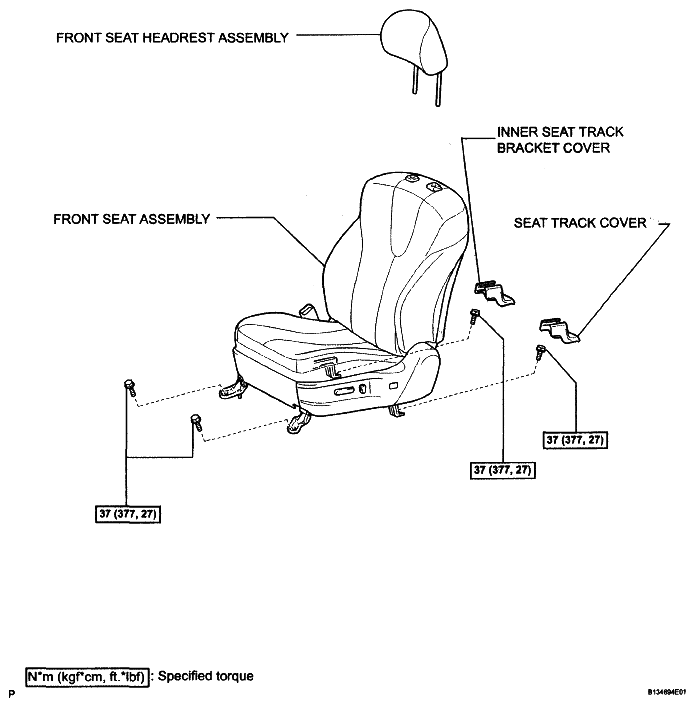

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

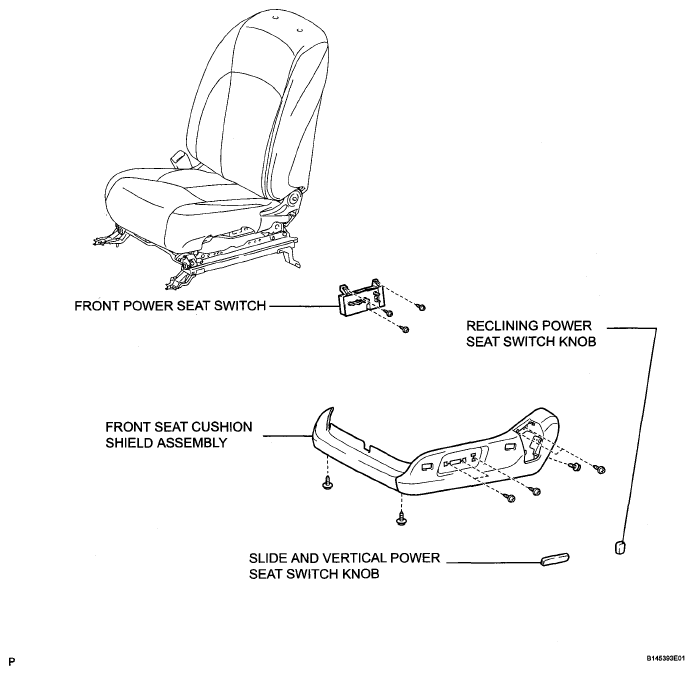

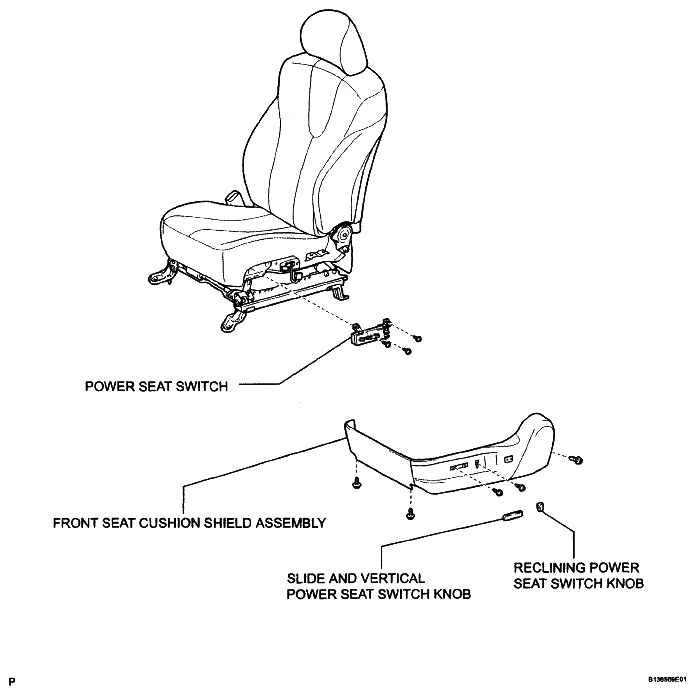

Fig 2: Identifying Power Seat Switch Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
