Customize Parameters

WARNING: This page is about a different variant/trim than selected.

HINT:

The following items can be customized.

NOTE:
  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.
  1. AIR CONDITIONING SYSTEM

    Air Conditioner

    AIR CONDITIONER REFERENCE

    Display Default Contents Setting
    Shift Set Temperature (Set Temp Shift) Normal To shift the temperature against the displayed temperature +2 C / +1 C / Normal / -1 C / -2 C
    Air Inlet Mode (Air Inlet Mode) Auto In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode Manual / Auto
    Compressor Mode (Compressor Mode) Auto Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF Manual / Auto
    Compressor/DEF Mode (Comprs/DEF Oper) Link Function to turn the A/C ON automatically linked with the FRONT DEF button when the A/C is OFF Normal / Link
    Evaporator Control (Evap Ctrl) Auto Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up Manual / Auto
    Foot/DEF Auto Mode (Foot/DEF Mode) ON Function to turn the airflow from FOOT/DEF ON automatically when AUTO MODE is ON OFF / ON
    Foot/DEF Auto Blow Up (Auto Blow Up) ON Function to change the blower level automatically when the defroster is ON OFF / ON
    Ambient Temperature Shift (Ambient Tmp Sft) Normal Function to shift the ambient temperature against the displayed ambient temperature +3 C / +2 C / +1 C / Normal / -1 C / -2 C / -3 C
  2. LIGHTING SYSTEM

    Illuminated Entry

    ILLUMINATED ENTRY REFERENCE

    Display Default Contents Setting
    Lighting Time 15 s Changes the lighting time of the interior light and power switch illumination. 7.5 s/15 s/30 s
    I/L when ACC OFF ON Lights up the interior light and power switch illumination when the power switch is turned from on (ACC or IG) to off ON / OFF
    I/L ON / W/Door Key Unlock ON Lights up the interior light and power switch illumination when the doors are unlocked. ON / OFF

    Light Control

    LIGHT CONTROL REFERENCE

    Display Default Contents Setting
    Sensitivity NORMAL Adjusts the sensitivity of the automatic light control system. *1 LIGHT 2 / LIGHT 1 / NORMAL / DARK 1/DARK 2
    DRL Function ON ON / OFF of the DRL function ON/OFF
    Disp Ex ON Sen NORMAL Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light, and clock. LIGHT 2 / LIGHT 1 / NORMAL / DARK 1 / DARK 2
    Disp Ex OFF Sen NORMAL Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light, and clock. LIGHT 2 / LIGHT 1 / NORMAL / DARK 1 / DARK 2
    Light Auto OFF Delay 30 s Keeps the headlights on for a certain period of time after turning the power switch off and closing all the doors with the headlights on. OFF / 30 s / 60 s / 90 s

    HINT:

    Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

    Illustration *1

    Fig 1: Ambient Brightness Level Chart
    G05617235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. POWER DOOR LOCK CONTROL SYSTEM

    Door Lock

    DOOR LOCK REFERENCE

    Tester Display Default Contents Setting
    Auto Unlk/Shift (Unlock, power switch on (IG), shift P, speed 0 km/h (0 mph)) ON Function that unlocks doors when the shift lever is moved to the P position from any other position while the power switch is on (IG) ON/OFF
    All Unlk/Opn-CI (All unlock, D door open-close) OFF Function that unlocks all other doors when opening driver side door within 10 seconds after turning the power switch off from on (IG) ON/OFF
    Unlk/Key Twice (Unlock, 2 times D key operation) ON
    • Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice
    • In the OFF setting, turning it once unlocks all doors
    		 ON/OFF
    Auto Lock/Shift (Auto lock/shift not P) ON Function that locks doors when the shift lever is moved from the P position to any other position ON/OFF
    Auto Lock OFF Function that locks doors when vehicle reaches a vehicle speed 20 km/h (13 mph) ON/OFF

    Wireless D Lock

    WIRELESS D LOCK REFERENCE

    Tester Display Default Contents Setting
    Auto Lock Delay 60s Function that selects AUTO LOCK time (30 sec. or 60 sec.) 30s/60s
  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Wireless Door Lock

    WIRELESS DOOR LOCK REFERENCE

    Display (item) Default Function Setting
    Wireless Control (Wireless door lock control function) ON Function that turns wireless door lock function ON/OFF ON/OFF
    Hazard Answer Back (Hazard answer-back for wireless door lock control) ON
    • When the doors are locked by wireless operation, the hazard warning lights flash once.
    • When the doors are unlocked by wireless operation, the hazard warning lights flash twice.
    		 ON/OFF
    Wireless Buzzer Resp (Wireless buzzer answer-back) ON Wireless door lock buzzer response/ON or OFF ON/OFF
    Open Door Warning (Door ajar warning) ON The buzzer sounds when LOCK is pressed when any of the doors are ajar. ON/OFF
    Unlock 2 Operation (Wireless unlock operated twice) ON This function unlocks the driver's door when the UNLOCK switch is pressed once, and unlocks all doors when pressed twice within 3 seconds. If set to OFF, pressing UNLOCK once unlocks all doors. ON/OFF
    Panic Function ON This function operates the theft deterrent system when PANIC is pressed and held for 0.8 seconds. ON/OFF
    Auto Lock Time 60s This function regulates the interval between unlocking and automatic relocking of doors. 30 s/60 s/120 s
    Trunk Lid Operation (Wireless trunk opener function setting) 0.8 s This function changes operation method of transmitter to open luggage compartment door.
    1tim ON: Push 1 time
    2tim ON: Push 2 times
    0.8 s: Push and hold 0.8 seconds
    OFF: Does not operate    		 1tim ON/2tim ON/0.8 s/OFF
  5. SMART KEY SYSTEM (DOOR LOCK)

    Smart

    SMART REFERENCE CHART

    Tester Display Default Contents Setting
    Park Wait Time (Wait time to permit opening door after locking) 2.5s Function that sets waiting time to permit opening door after door is locked with entry lock function. 0.5s/1.5s/2.5s/5.0s
    Ignition Available Area (SMART ignition available area) ALL Function to choose the available area for electrical key to start HV control system and cancel the steering lock. FRONT/ALL
    Trunk Open Mode (Luggage compartment opening operation) ON Function to open a luggage compartment when the driver has the electrical key and presses the luggage open button. ON / OFF

    Wireless Door Lock

    WIRELESS DOOR LOCK REFERENCE

    Display (Item) Default Contents Setting
    Alarm Function (Panic function) ON Function to operate the theft deterrent system by keeping pressing the lock button of the transmitter for 2.5 seconds. If there is a panic button, press the panic button instead of the lock button. ON / OFF

    Warning

    WARNING REFERENCE

    Display (Item) Default Contents Setting
    Key Low-Batt Wrn ON Function to set a warning function for the time when a key battery becomes weak. ON / OFF
  6. ENTRY UNLOCK MODE SWITCHING FUNCTION (Customizing Function Without Techstream)
    1. To change the vehicle to entry unlock mode switching function, make sure the vehicle power is off and simultaneously press and hold the electrical key's LOCK switch and another electrical key switch for 4.5 seconds.

      When the switches are pressed and held for 4.5 seconds, the entry door unlock mode changes in the following order: driver door mode, all door mode.

      NOTE: After pressing and holding the switches for 4.5 seconds, wait 4.5 seconds before performing the same procedure again.
      • Driver door unlock mode:

        When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

      • All door unlock mode:

      When the touch sensor is touched, all doors unlock.

    2. The certification ECU receives this signal from the door control receiver and changes the smart key system to the entry unlock mode.
    3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

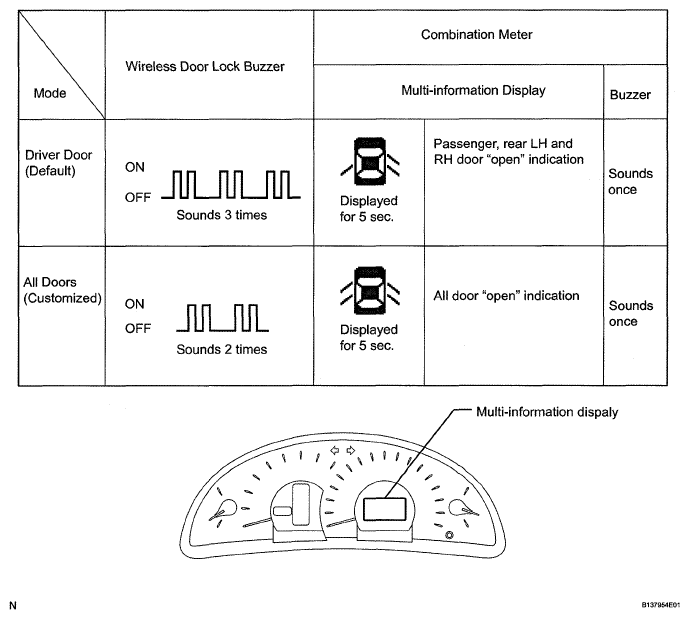

      Fig 2: Identifying Multi-Infomation Display
      G05616957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

  7. ELECTRICAL KEY CANCEL (Customizing Function Without Techstream)

    The electrical key cancel operation disables the following functions:

    • Entry Ignition (HV control system is on (READY))
    • Entry Unlock/Lock
    • Entry Luggage Compartment Open
    • Electrical Key Lock-in Prevention
    • Warning
    • Memory Call

    The operation procedures are as follows:

    Precondition:

    Power switch off, driver side door closed and unlocked.

    1. Unlock the driver side door once with the UNLOCK switch of the electrical key.
    2. Open the driver door within 5 seconds.
    3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
    4. Repeat open → close twice for the driver door within 30 seconds, and open again.

      (Driver door: Open → Close → Open → Close → Open)

    5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
    6. Repeat open → close once for the driver door within 30 seconds, and open again.

      (Driver door: Open → Close → Open)

    7. Close the driver door within 5 seconds.

      When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

      To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

  8. METER / GAUGE SYSTEM

    Meter

    METER REFERENCE

    Tester Display Default Contents Setting
    Seat-belt Warning Buzzer D/P ON Function to change the setting of the seat belt warning buzzer D/P ON, D ON, P ON, D/P OFF

    HINT:

    This setting is only valid for the buzzer which sounds at 20 km/h (12.4 mph) or more.

  9. SLIDING ROOF SYSTEM

    Sliding roof ECU

    SLIDING ROOF ECU REFERENCE

    Tester Display Default Contents Setting
    Door Key Related Open ON Function to manually open sliding roof linked with power window if holding driver's side and passenger's side door key for 1.5 seconds or more to unlock position when power switch is off ON/OFF
    Door Key Related Close ON Function to manually close sliding roof linked with power window if holding driver's side and passenger's side door key for 1.5 seconds or wore to lock position when power switch is off ON/OFF
    Wireless Key Related Open ON Function to manually open sliding roof linked with power window if pressing transmitter UNLOCK switch for 2.4 seconds or more when power switch is off ON/OFF
    Wireless Key Related Close ON Function to manually open sliding roof linked with power window if pressing transmitter LOCK switch for 2.4 seconds or more when power switch is off ON/OFF
    Door Key Related Operation SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window Activated by holding driver's side door key for 1.5 seconds or more to unlock position when power switch is off TILT/SLIDE
    Wireless Key Related Operation SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window Activated by pressing transmitter UNLOCK switch for 2.4 seconds or more when power switch is off TILT/SLIDE
