EVAP System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

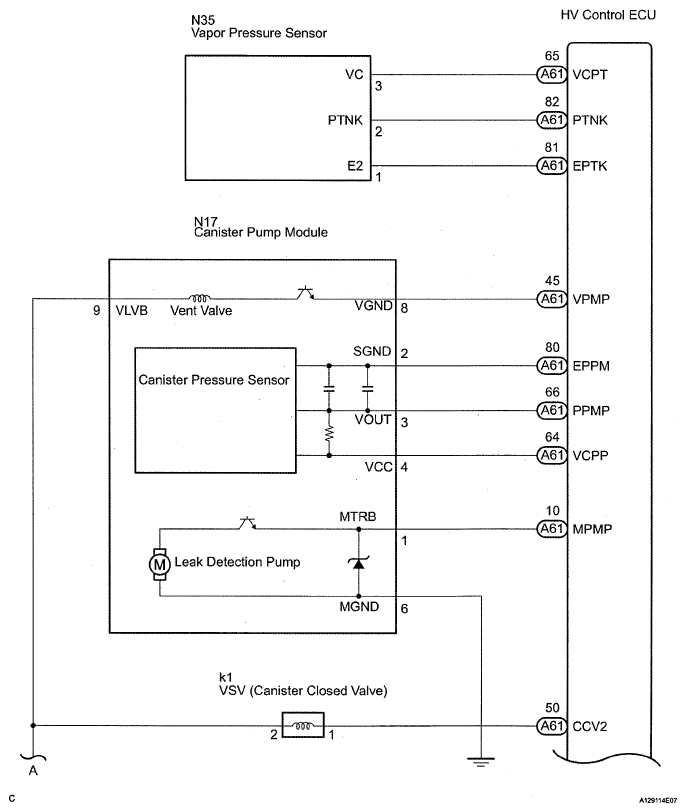

Fig 1: EVAP System - Wiring Diagram (1 Of 2)
G05617682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

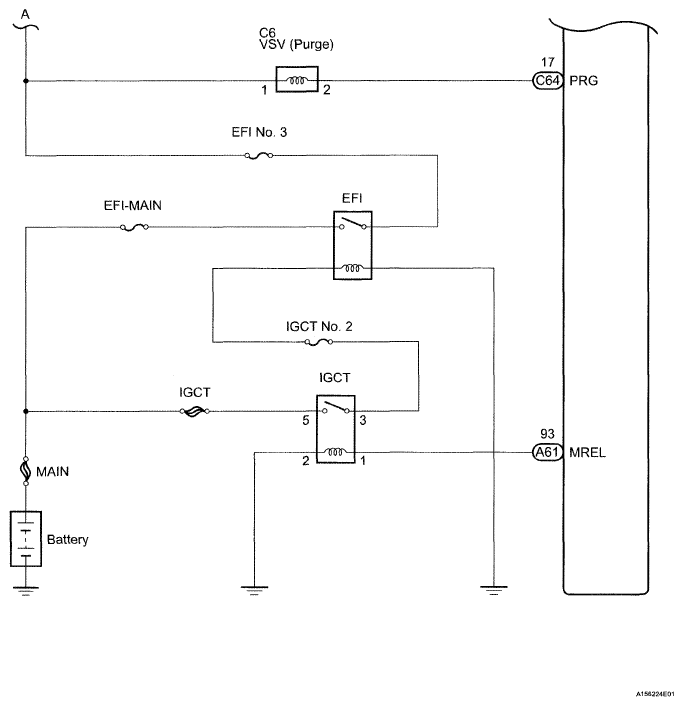

Fig 2: EVAP System - Wiring Diagram (2 Of 2)
G05007812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
