Transmission Control Cable: Components

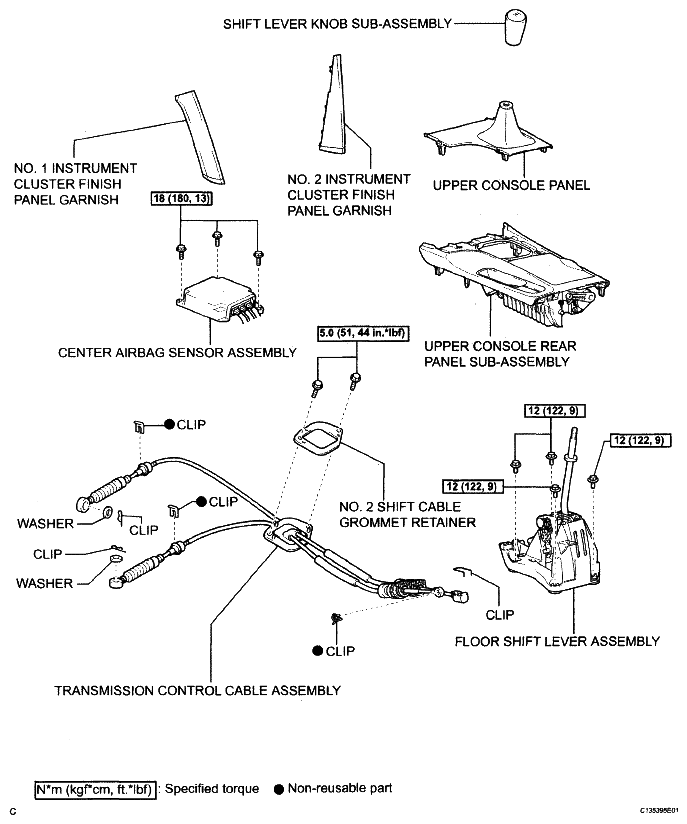

Fig 1: Exploded View Of Transmission Control Cable Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Transmission Control Cable Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
