MIL Circuit: Wiring Diagram

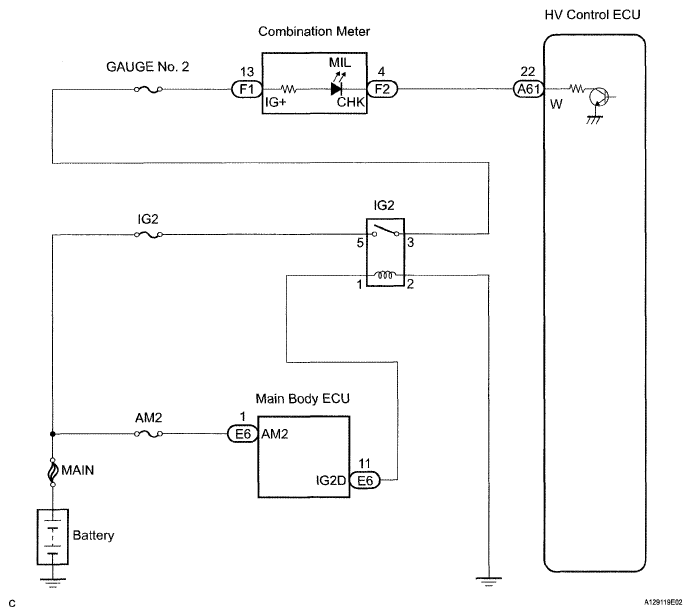

Fig 1: Malfunction Indicator Lamp Wiring Diagram

G05007962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
