Front Speed Sensor: Installation

1. Install the speed sensor front LH with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE: Prevent foreign matter from attaching to the sensor tip.
   Fig 1: Identifying Speed Sensor Front LH Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor harness clamps with the 2 bolts "A" and "B" to the body and shock absorber.

   Torque:

   Bolt A

   5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Bolt B

   19 N*m (192 kgf*cm, 14 in.*lbf)

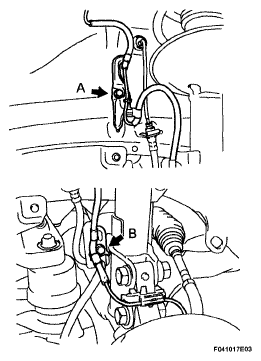

   Fig 2: Identifying Speed Sensor Harness Clamp Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the clamp to the knuckle.
4. Connect the speed sensor connector and clamp.

Fig 3: Identifying Speed Sensor Connector And Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

HINT:

See TEST MODE PROCEDURE  for ABS system, TEST MODE PROCEDURE  for VSC system
