Skid Control Sensor: Components

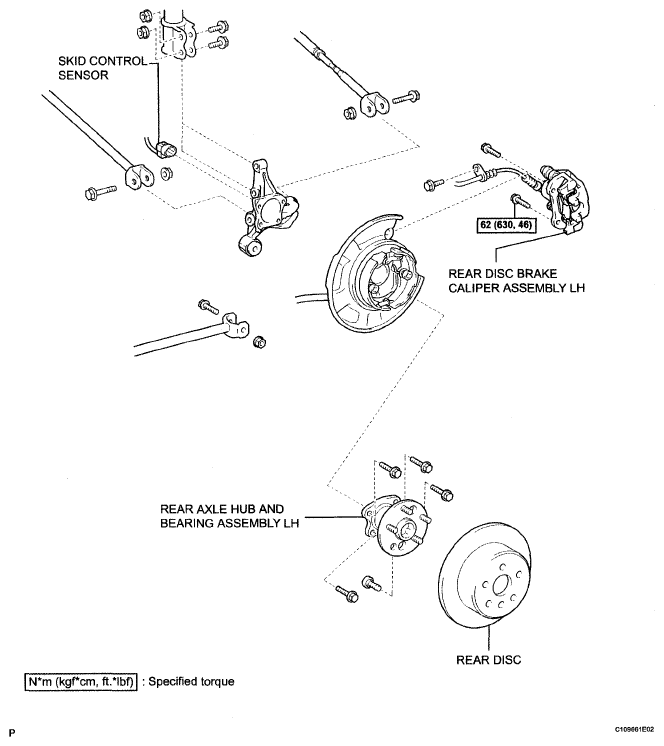

Fig 1: Identifying Skid Control Sensor Replacement Components With Torque Specification (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

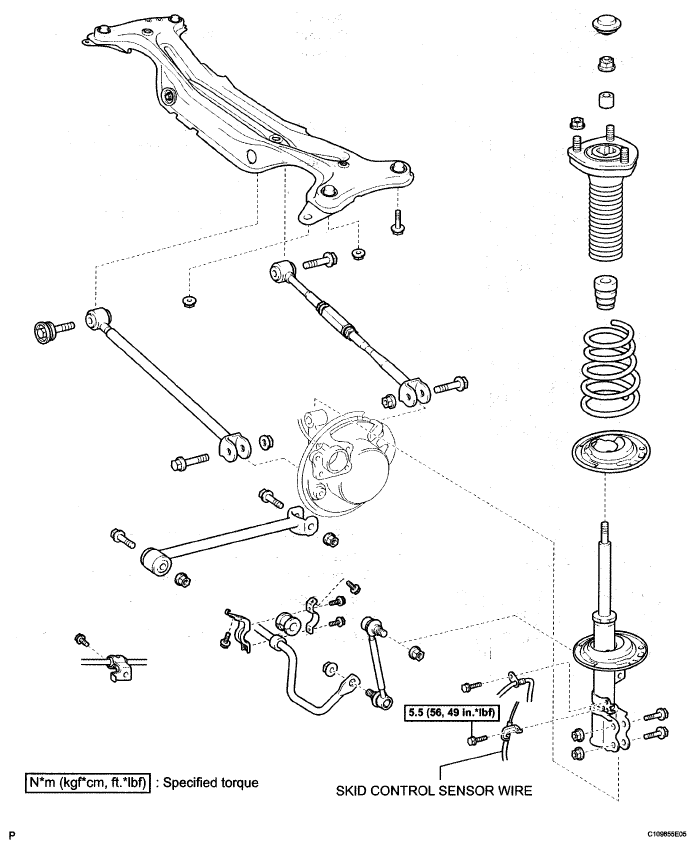

Fig 2: Identifying Skid Control Sensor Replacement Components With Torque Specification (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
