Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the 2 knock sensors with the 2 nuts, as shown in the illustration.

      Torque: 20 N*m (199 kgf*cm, 14 ft.*lbf)

      Fig 1: Identifying Knock Sensors Position Angle
      G05128736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 knock sensor connectors.
  2. INSTALL WATER OUTLET
    1. Install 2 new gaskets to the 2 cylinder heads.
    2. Install the water outlet together with the water bypass hose No. 1 and unlock the hose clamp.
    3. Tighten the 2 bolts, 2 nuts and 2 washers.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

    4. Install the clamp.
    5. Connect the ECT sensor connector.
    6. Connect the radiator hose inlet.
  3. INSTALL INTAKE MANIFOLD
    1. Tighten the intake manifolds's 9 bolts and 2 nuts uniformly in the numerical order shown in the illustration.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      NOTE: Fully tightening one of these bolts or nuts without partially tightening the other bolts or nuts in the group may damage the intake manifold, bolts and nuts.

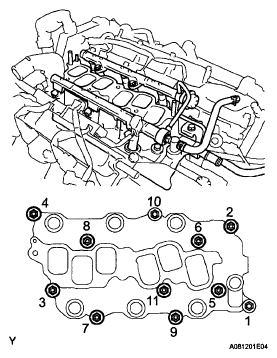

      Fig 2: Identifying Tightening Sequence Of Intake Manifolds Bolts And Nuts
      G05128737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Retighten the water outlet mounting bolts and nuts.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

    3. Install the ground cable with the nut.

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

    4. Connect the heater inlet water hose.
    5. Connect the fuel pipe No. 1.
      1. Push the quick connector into the pipe until a "click" sound is heard.
        NOTE:
        • Check if there is any damage or contamination on the connected part.
        • After connecting, confirm that the connector and pipe are securely connected by trying to pull them apart.
          Fig 3: Identifying Quick Connector Into Pipe
          G05128738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the fuel pipe clamp.
  4. INSTALL INTAKE AIR SURGE TANK
  5. INSTALL EMISSION CONTROL VALVE SET
  6. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
  7. CHECK CONNECTION OF VACUUM HOSE
  8. ADD ENGINE COOLANT
  9. CHECK FOR ENGINE COOLANT LEAKS  (See REPLACEMENT )
  10. CHECK FOR FUEL LEAKS  (See INSTALLATION )
  11. INSTALL V-BANK COVER SUB-ASSEMBLY  (See INSTALLATION  )
