Parts Location

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

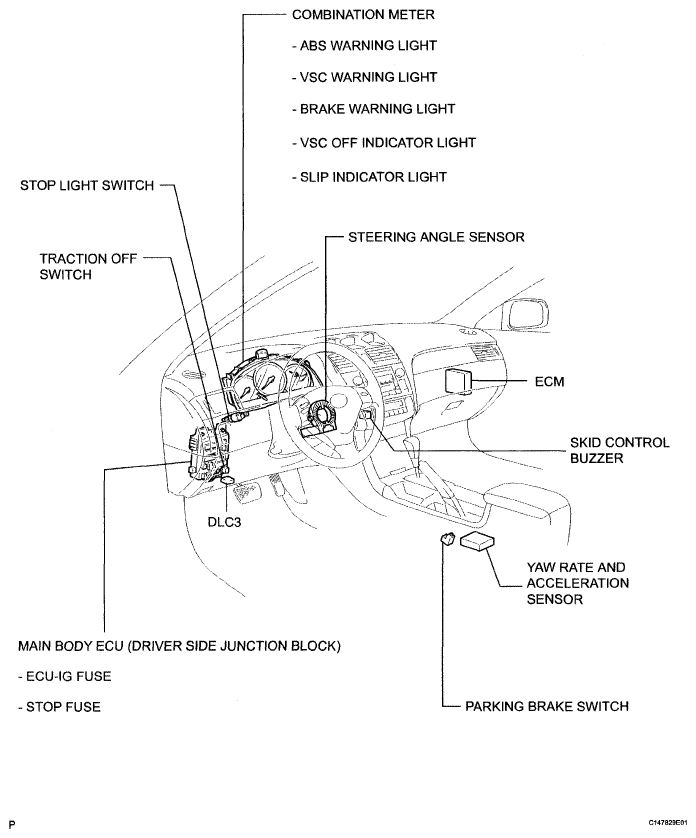

Fig 1: Identifying Anti-Lock Brake System Replacement Components Location (1 Of 2)

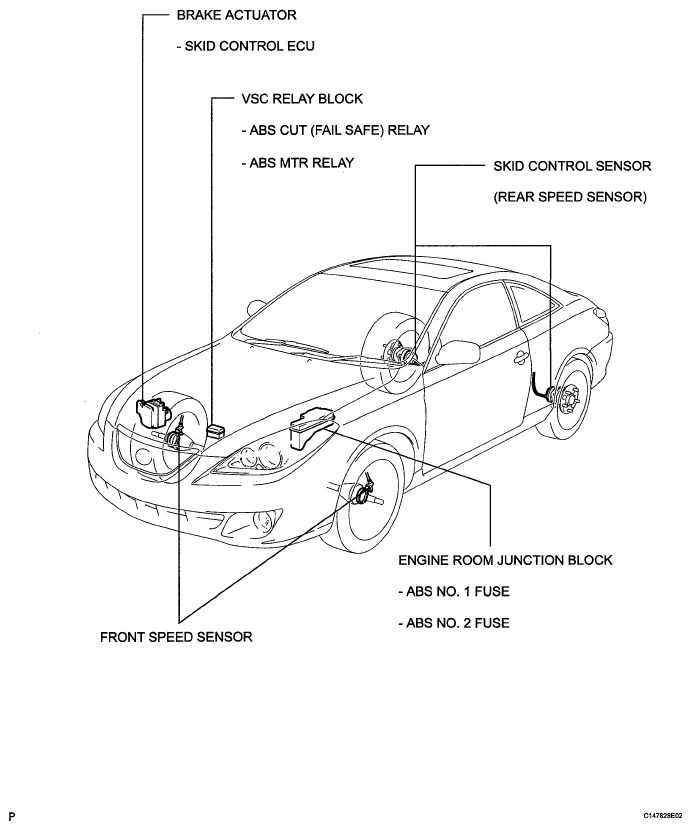

Fig 2: Identifying Anti-Lock Brake System Replacement Components Location (2 Of 2)
