Camshaft Position Sensor: Components

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Camshaft Position Sensor Components (1 Of 2)

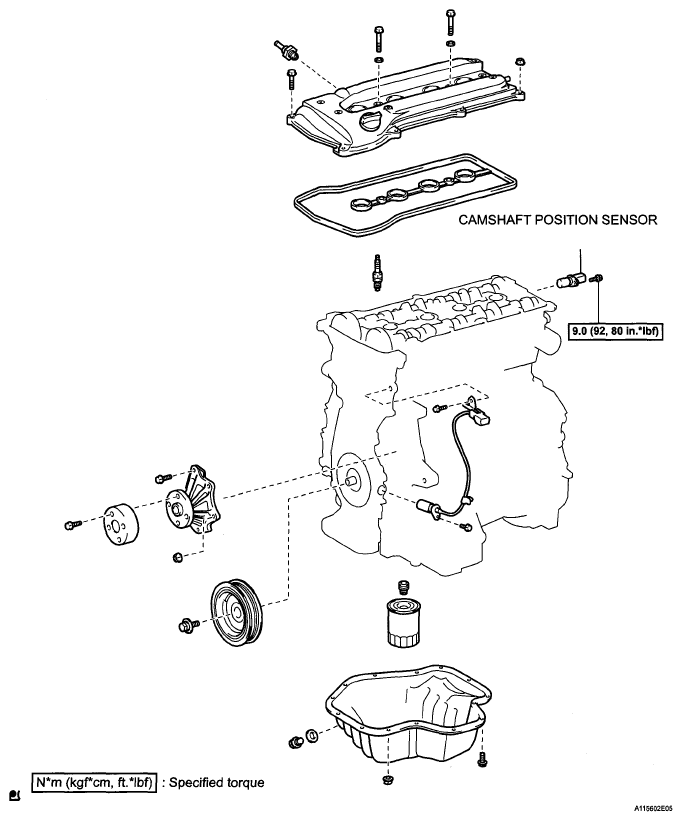

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
