Corolla LE, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control
›
Vehicle Stability Control System
›
Brake Warning Light Circuit
›
Wiring Diagram
Brake Warning Light Circuit: Wiring Diagram

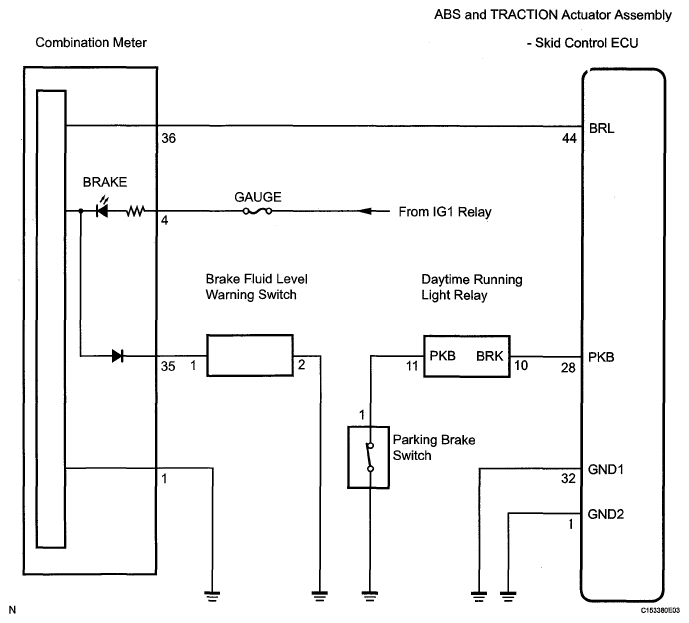

Fig 1: Brake Warning Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
