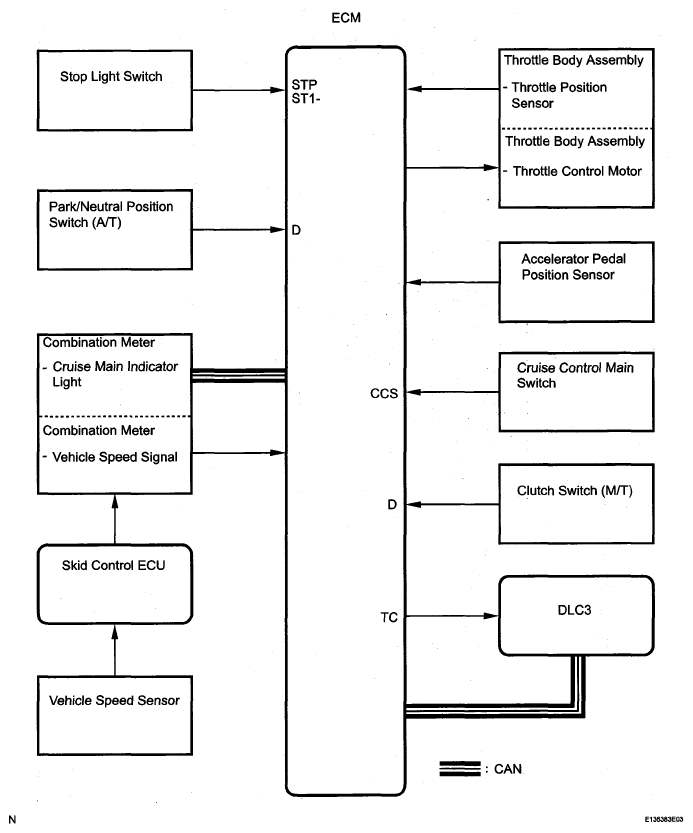

System Diagram
WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table:
COMMUNICATION REFERENCE CHART
| Sender |
Receiver |
Signal |
Line |
| ECM |
Combination Meter ECU |
CRUISE main indicator operation signal |
CAN |
