Soft Top: Components

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

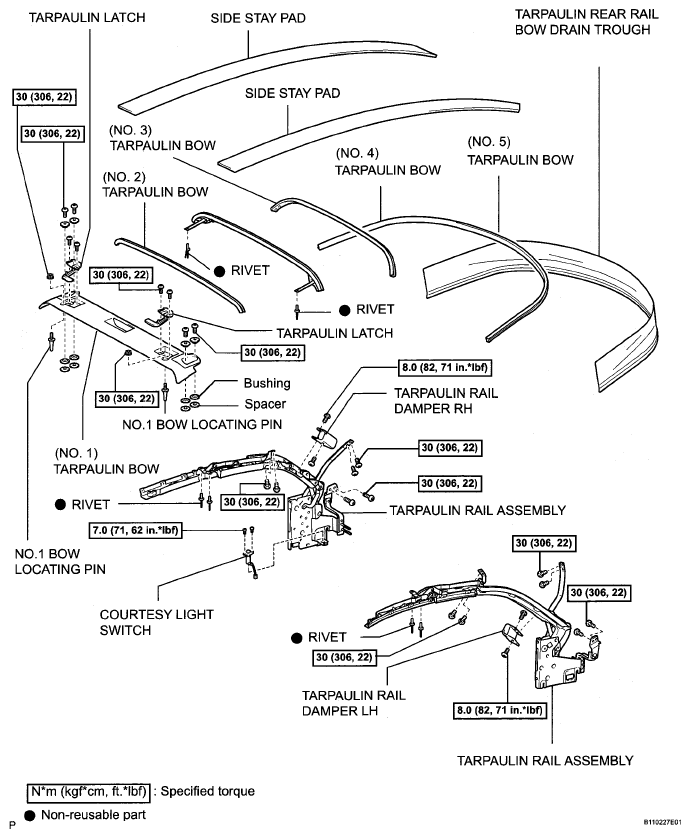

Fig 1: Identifying Soft Top Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

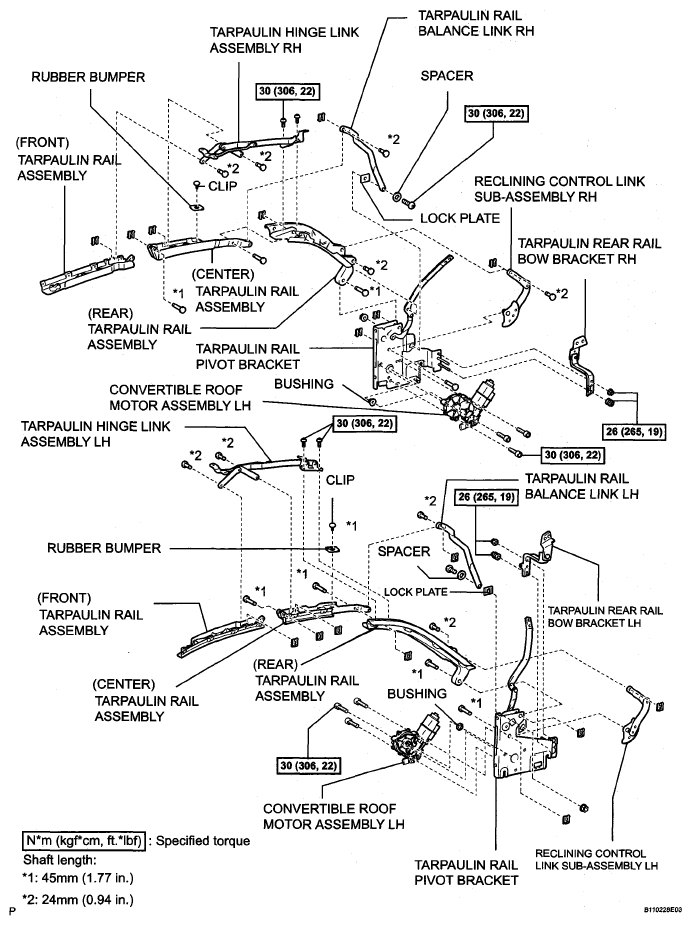

Fig 2: Identifying Soft Top Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

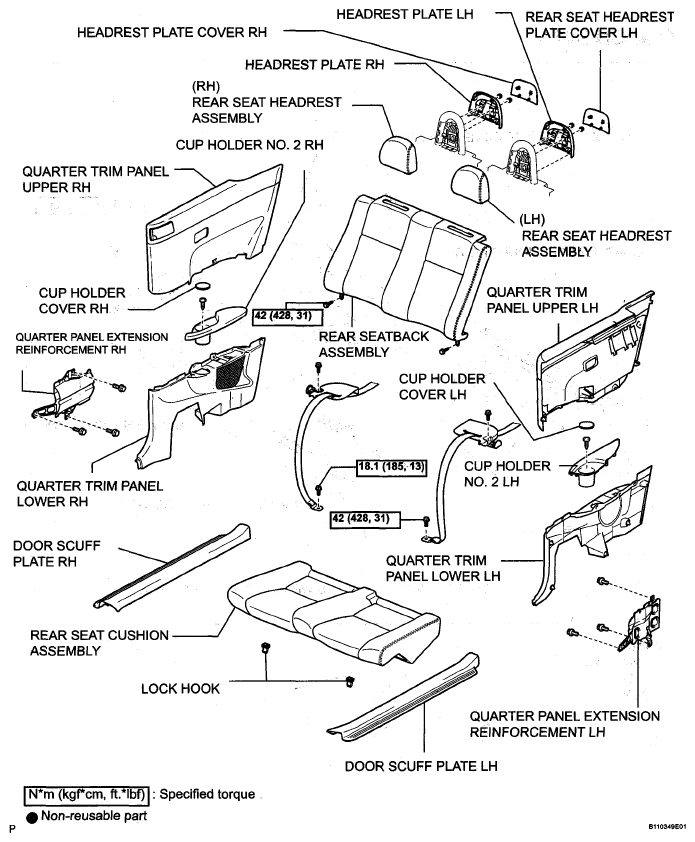

Fig 3: Identifying Soft Top Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

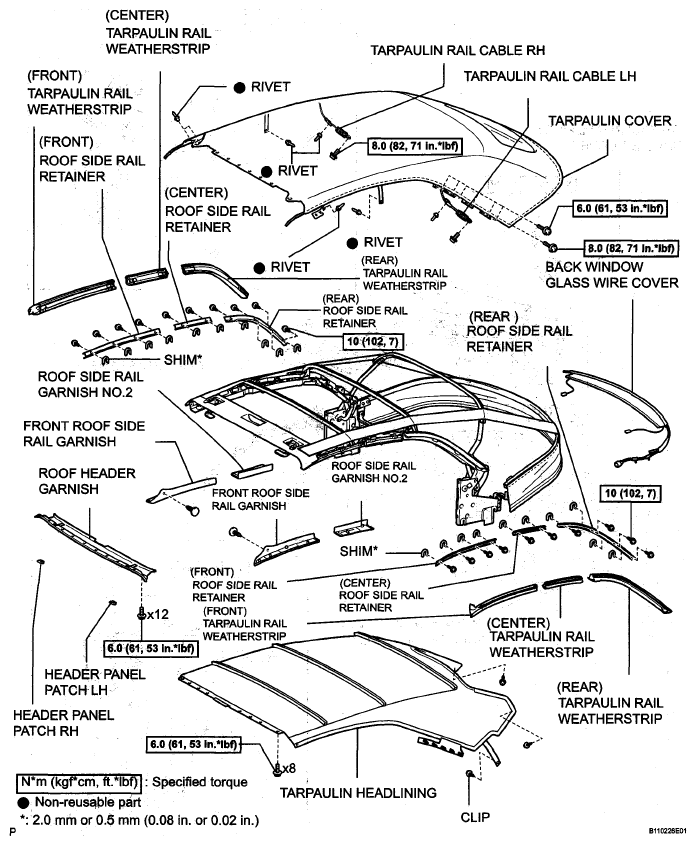

Fig 4: Identifying Soft Top Replacement Components With Torque Specifications (4 Of 6)

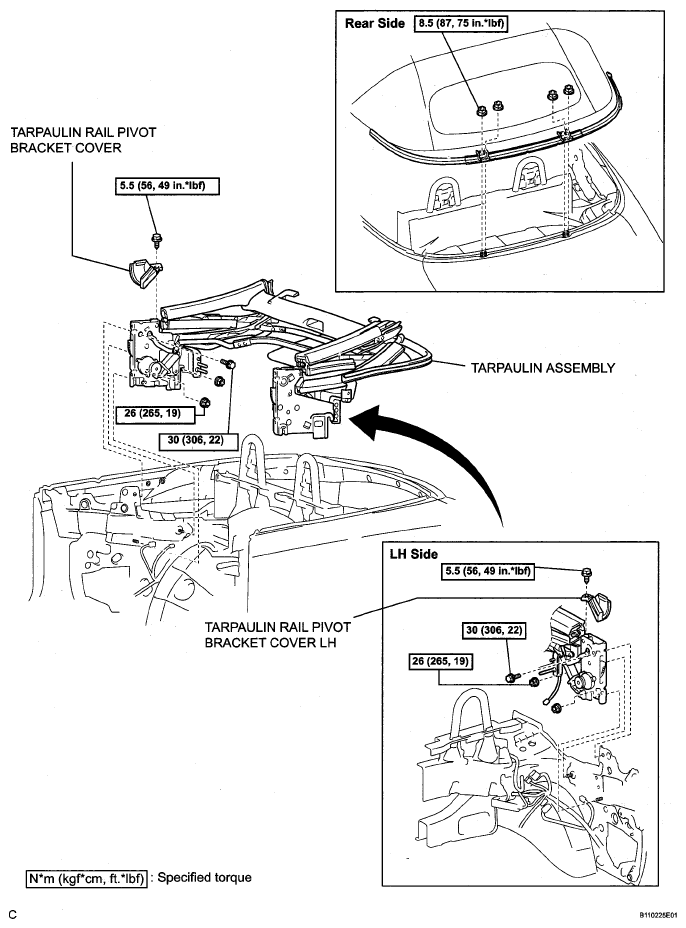

Fig 5: Identifying Soft Top Replacement Components With Torque Specifications (5 Of 6)

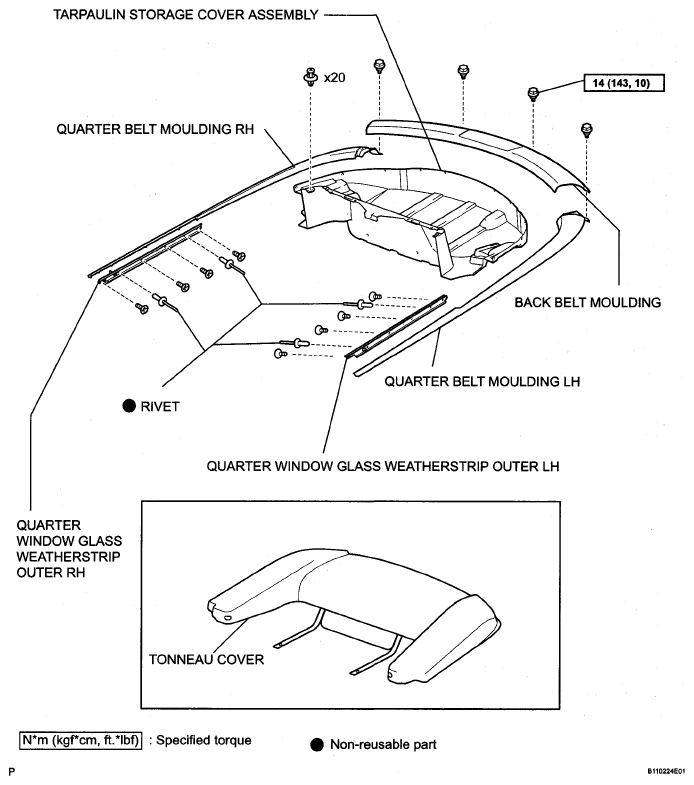

Fig 6: Identifying Soft Top Replacement Components With Torque Specifications (6 Of 6)
