Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Turn the ignition switch off before measuring the resistance of the CAN main wires and CAN branch wires.
  • After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not operating.
  • Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.

HINT:

Operating the ignition switch, any other switches, or any doors triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

  1. CHECK FOR OPEN IN CAN BUS WIRE (ECM MAIN BUS WIRE)
    1. Turn the ignition switch to the LOCK position.
    2. Disconnect the ECM connector (E5).
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      FOR OPEN IN CAN BUS WIRE (ECM MAIN BUS WIRE)

      Tester Connection Condition Specified Value
      E5-33 (CANH) - E5-34 (CANL) Ignition switch off 108 to 132 Ω

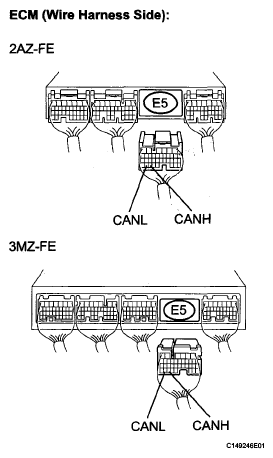

    Fig 1: Identifying ECM (E5) Connector Terminals
    G05132976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE ECM MAIN BUS WIRE OR CONNECTOR (CAN-H, CAN-L)

    OK: Go to next step

  2. CHECK WIRE HARNESS (+B, +B2, E01)
    1. Reconnect the ECM connector (E5).
    2. Disconnect the ECM connectors (E4) and (E8).
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      WIRE HARNESS (+B, +B2, E01) RESISTANCE

      Tester Connection Condition Specified Value
      E8-7 (E01) - Body ground Always Below 1 Ω
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      WIRE HARNESS (+B, +B2, E01) VOLTAGE

      Tester Connection Condition Specified Value
      E4-1 (+B) - Body ground Ignition switch off 10 to 14 V
      E4-2 (+B2) - Body ground Ignition switch off 10 to 14 V

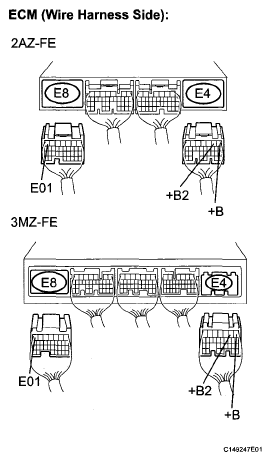

    Fig 2: Identifying ECM (E5) Connector Terminals
    G05132977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM
