System Diagram

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

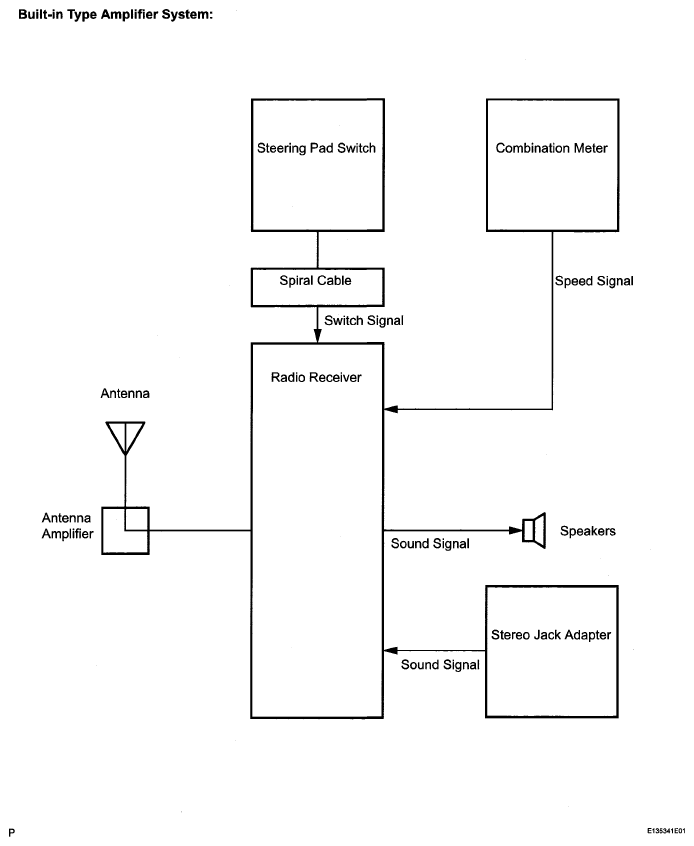

Fig 1: Audio And Visual System Diagram (1 Of 2)
G05132319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

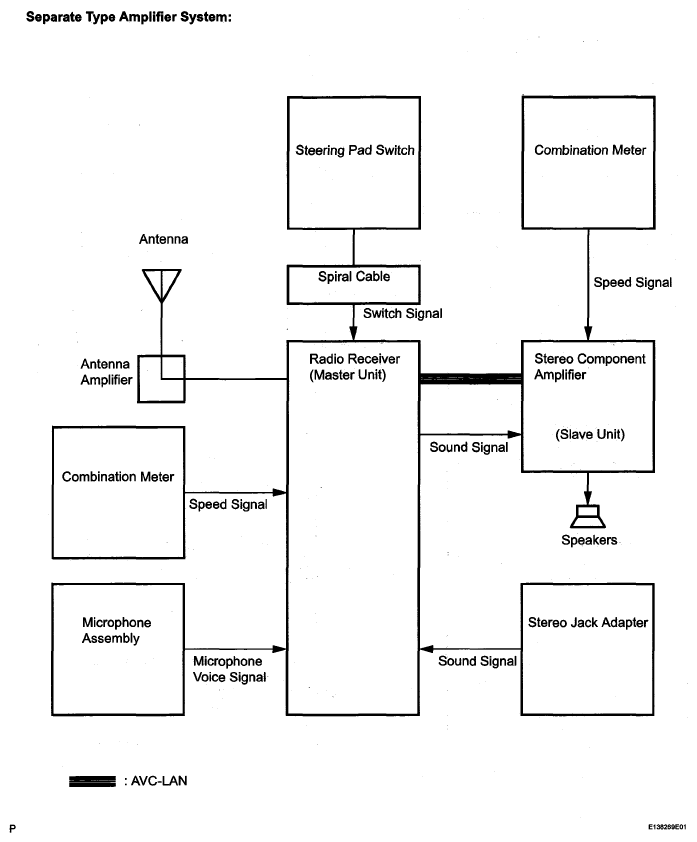

Fig 2: Audio And Visual System Diagram (2 Of 2)
G05132320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
