POWER SOURCE (Current Flow Chart)

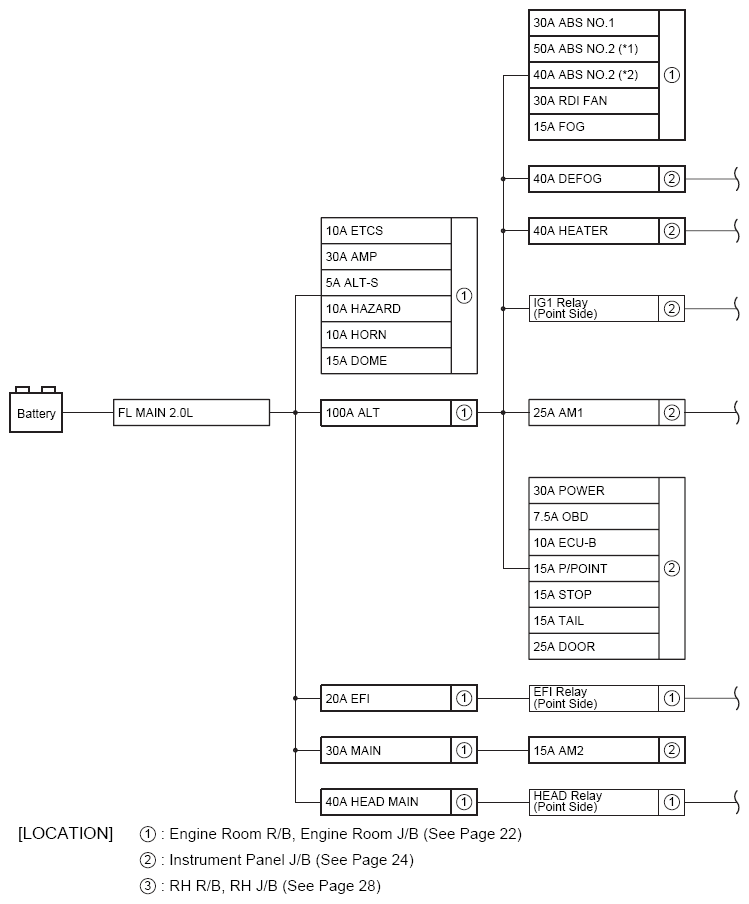

Fig 1: Current Flow Chart (1 Of 2)
G07604137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

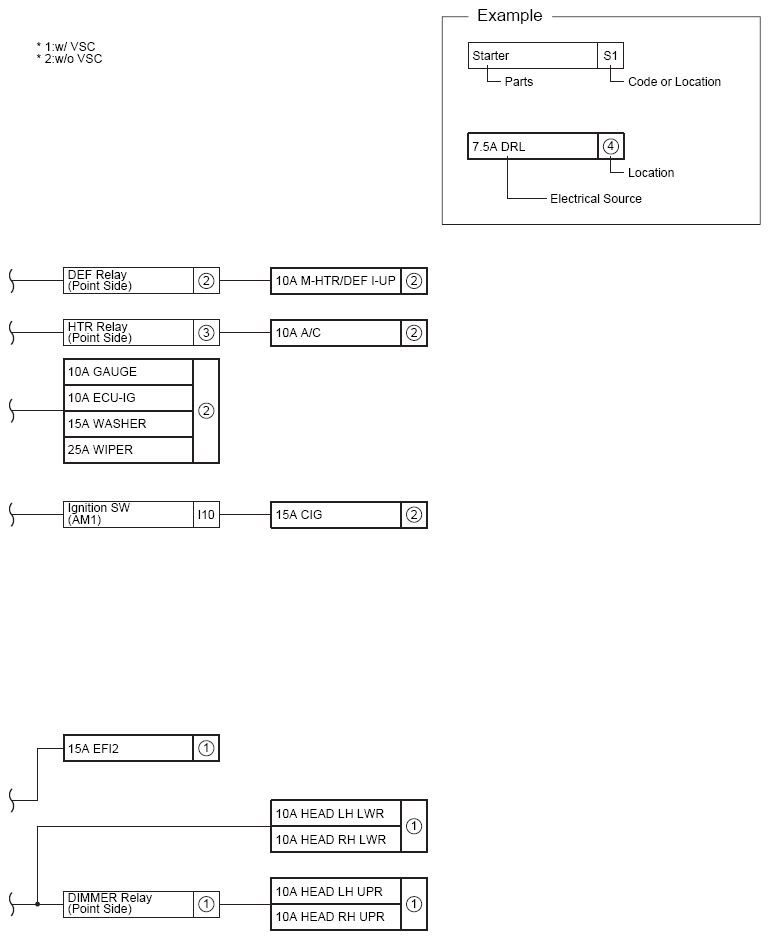

Fig 2: Current Flow Chart (2 Of 2)
G07604138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
