ABS System without VSC: Notes

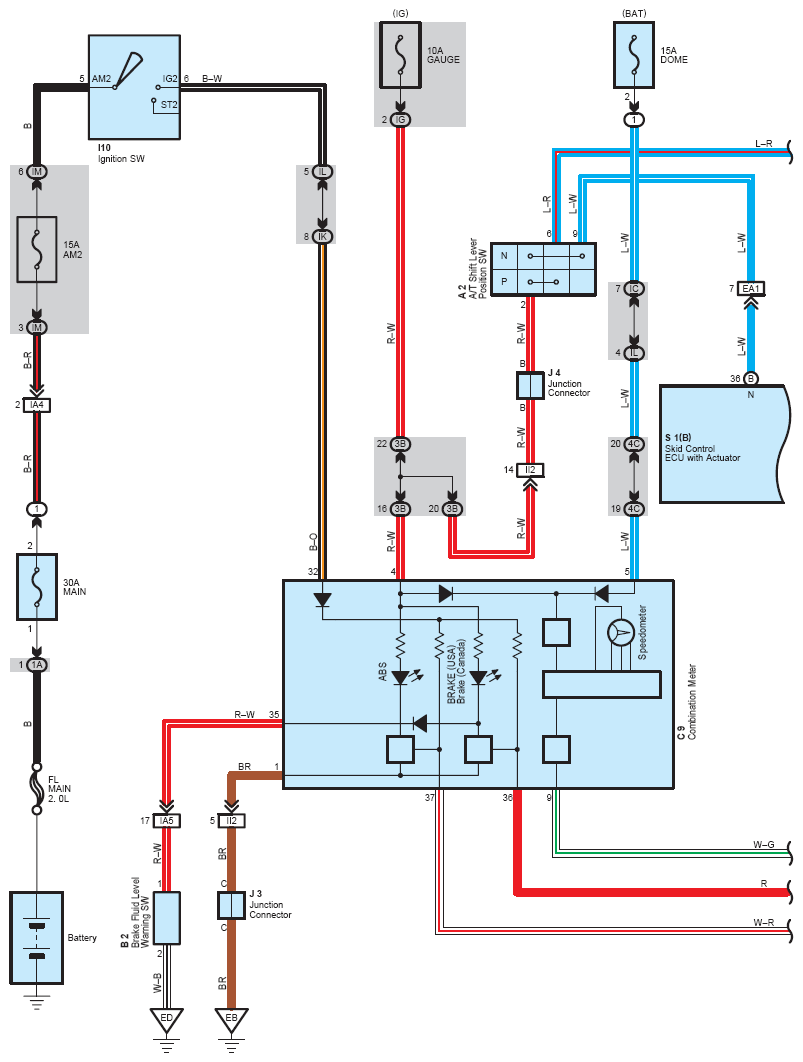

Fig 1: ABS Without VSC - Circuit Diagram (1 Of 2)
G07604108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

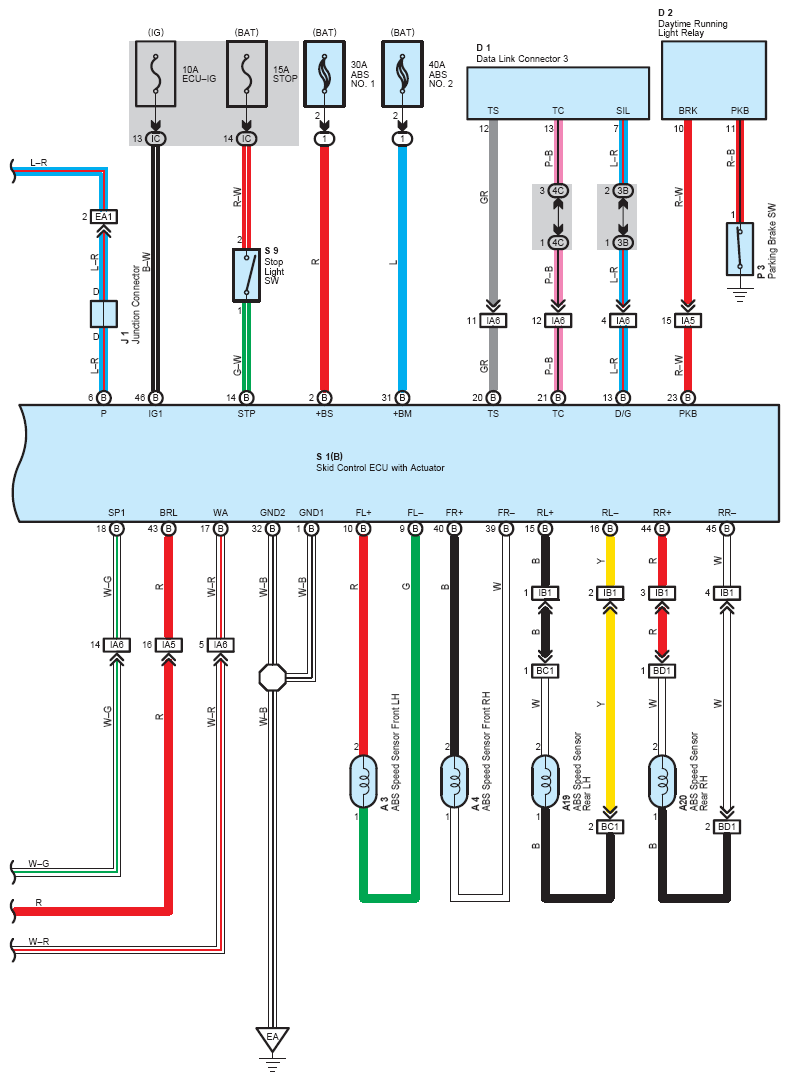

Fig 2: ABS Without VSC - Circuit Diagram (2 Of 2)
G07604109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
