Audio System without Stereo Component Amplifier
›
Notes
Audio System without Stereo Component Amplifier: Notes

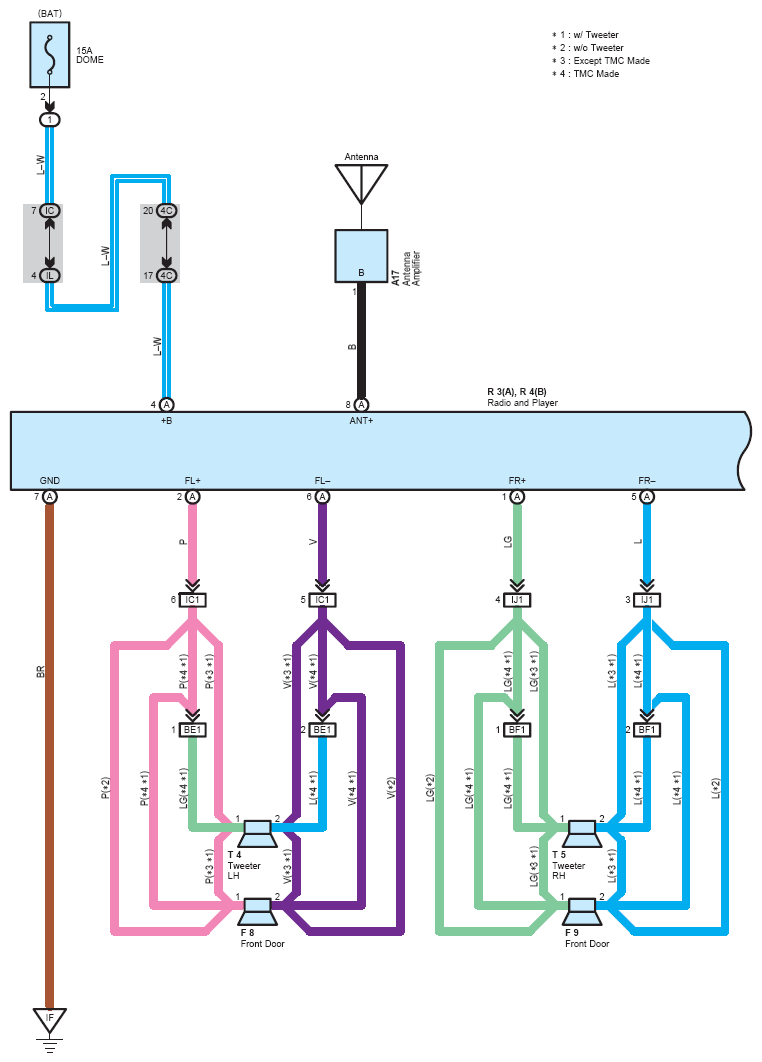

Fig 1: Audio System Without Stereo Component Amplifier - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

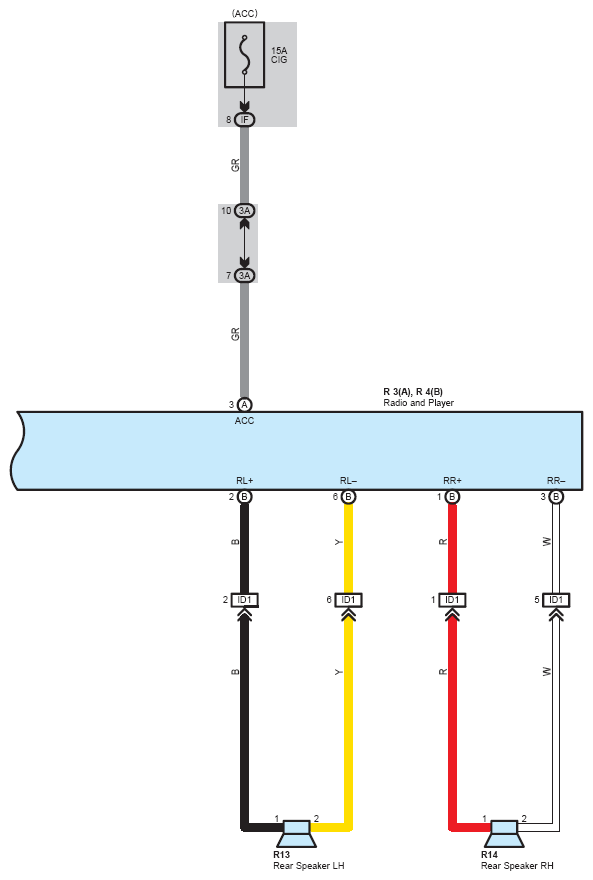

Fig 2: Audio System Without Stereo Component Amplifier - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
