Heater System: Notes

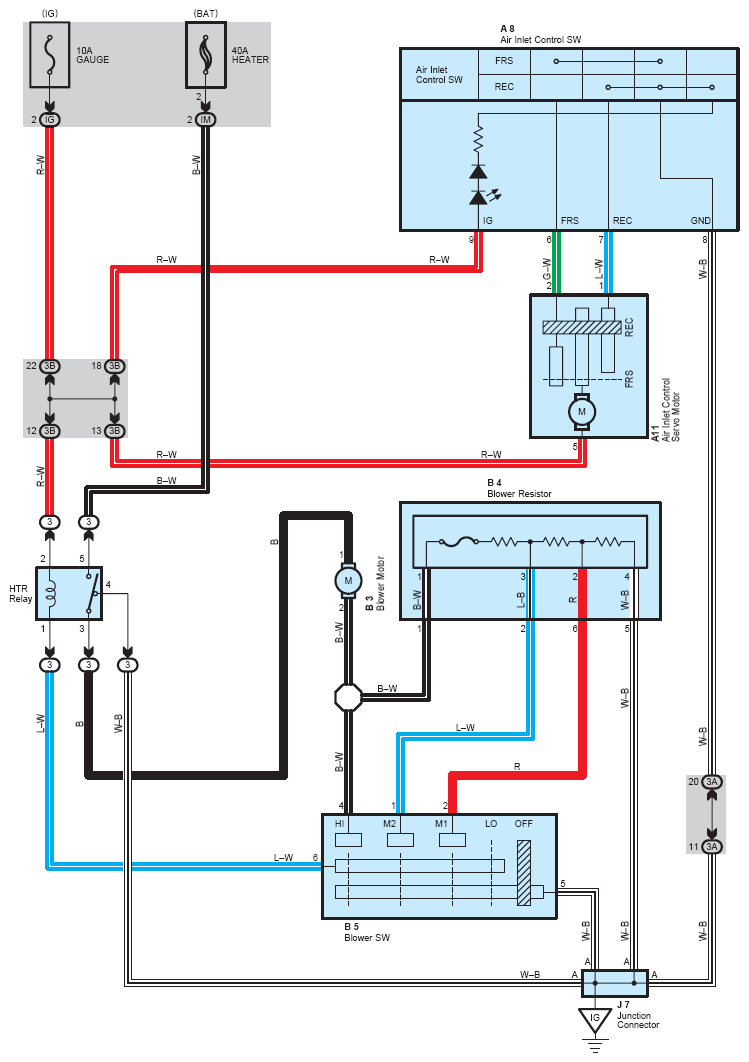

Fig 1: Heater - Circuit Diagram
G07604133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
