Corolla S, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Light Reminder and Key Reminder System
›
Notes
Light Reminder and Key Reminder System: Notes

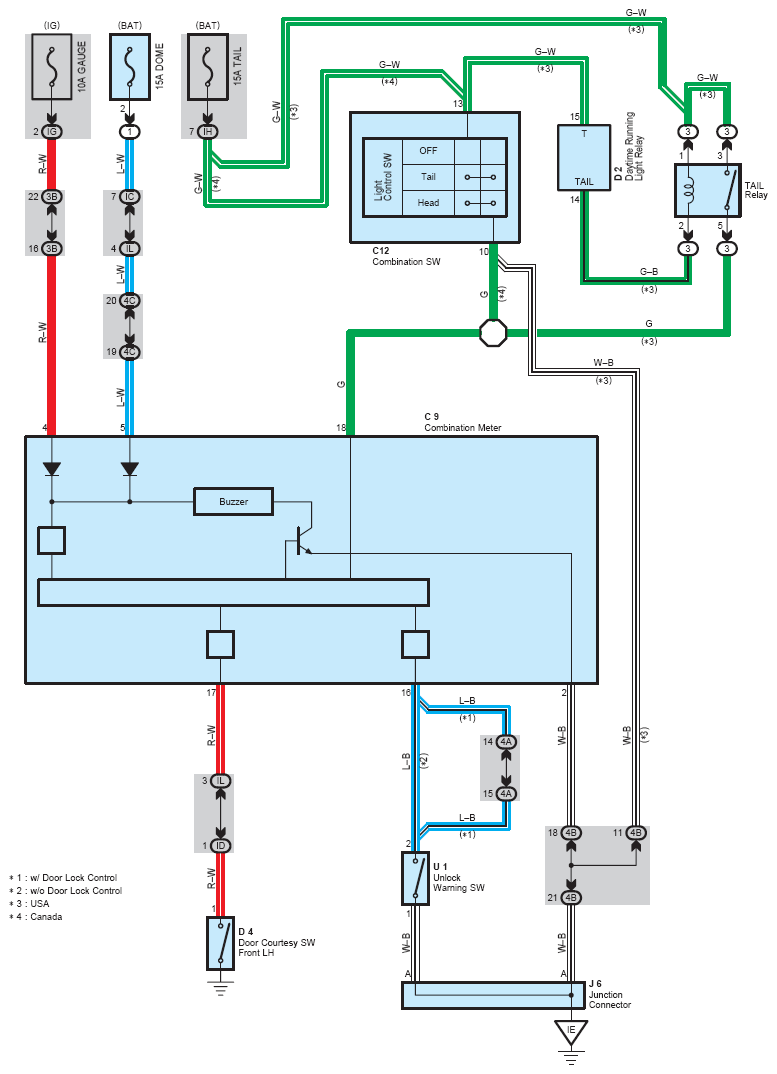

Fig 1: Light Reminder And Key Reminder - Circuit Diagram
