Moon Roof System: Notes

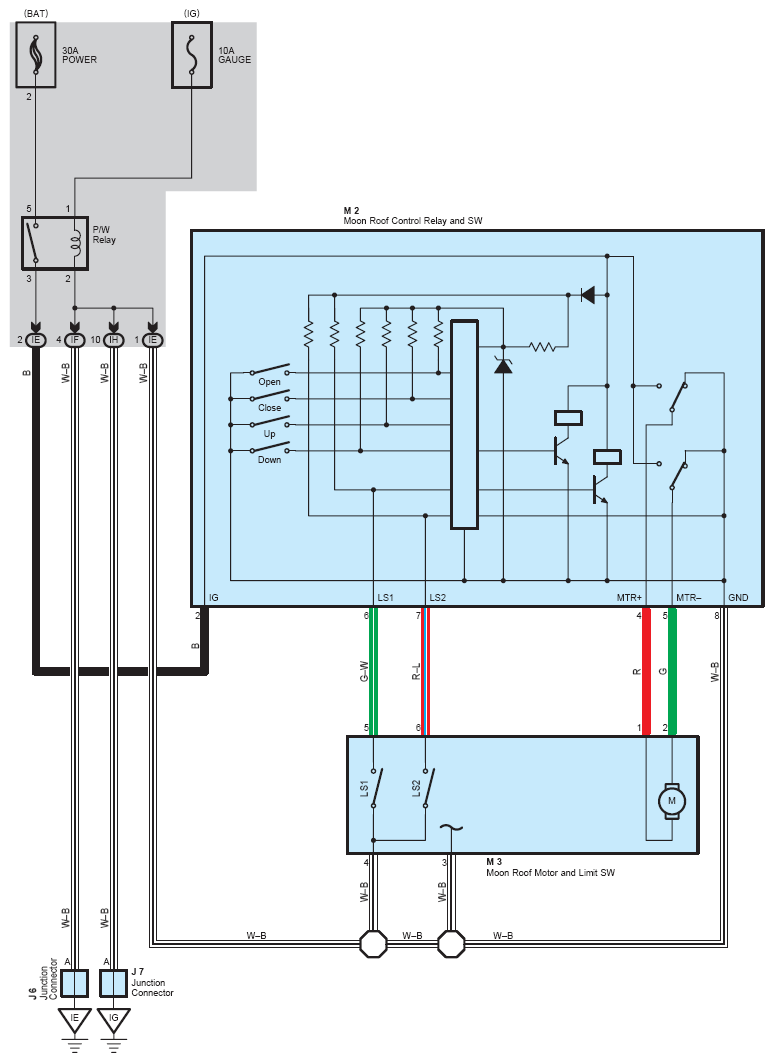

Fig 1: Moon Roof - Circuit Diagram

G07604094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
