Multiplex Communication System - CAN: Notes

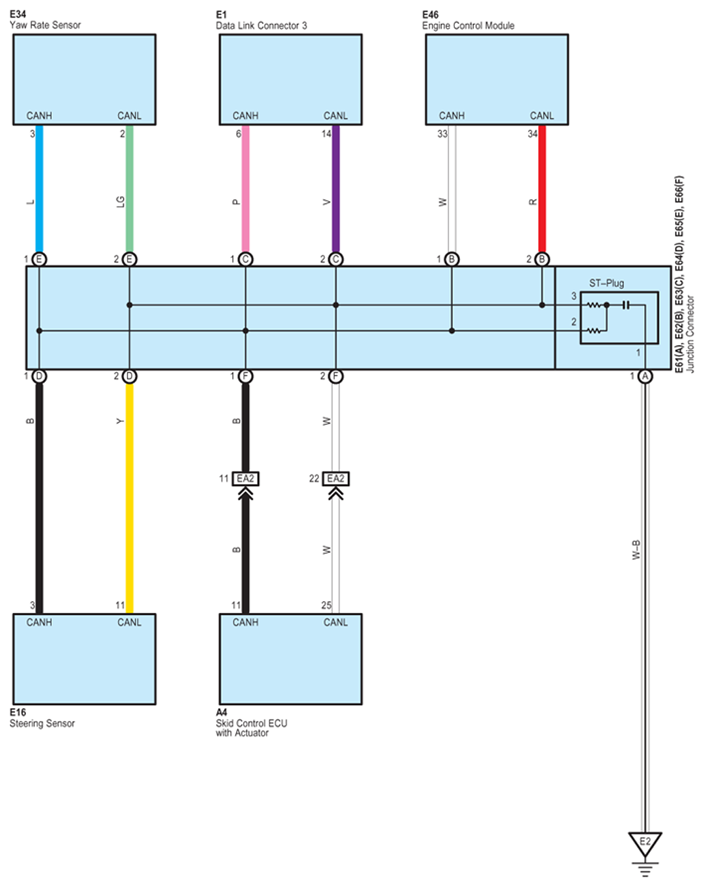

Fig 1: Multiplex Communication System (CAN) - Circuit Diagram
G07595077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
