FJ Cruiser 4WD, Part Time
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
DTC P0230 Fuel Pump Primary Circuit
›
Wiring Diagram
DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

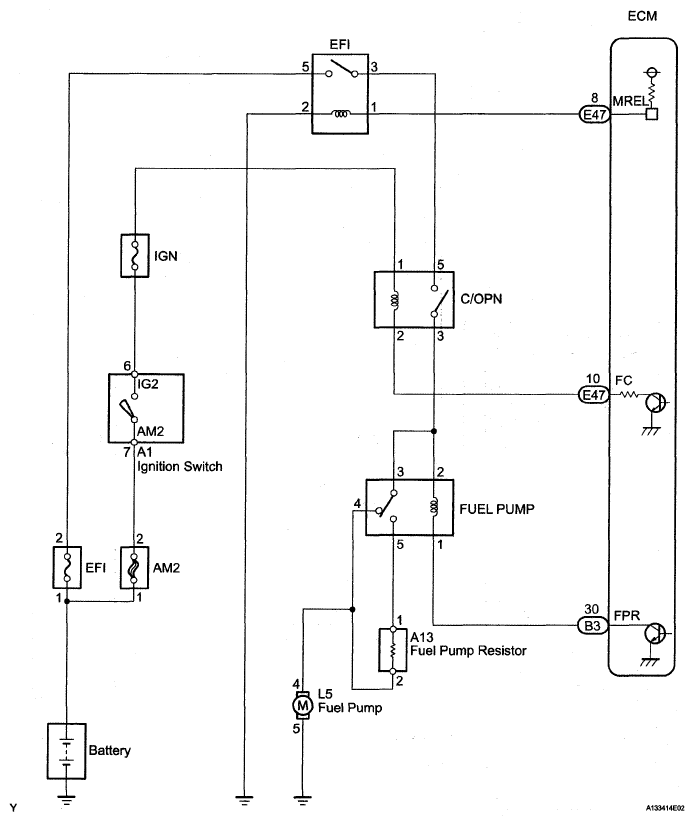

Fig 1: Identifying Fuel Pump Primary Circuit - Wiring Diagram
